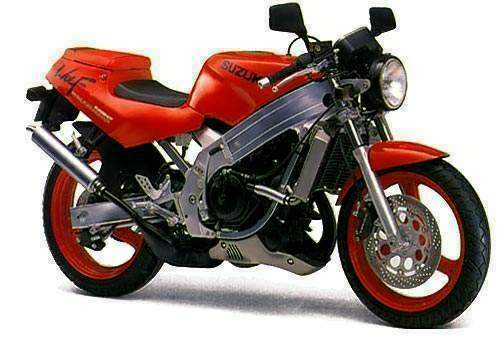

Suzuki RG 250 TV Wolf (1988-89) technical specifications

Suzuki RG 250 TV Wolf technical specifications

Suzuki RG 250 TV Wolf is produced in 1988-89. Engine is Two stroke, V- twin, displacement 249 cc / 15.2 cu in , produces power 35.7 kW / 49 hp @ 9500 rpm and 40 Nm / 4.1 kgf-m / 29.5 lb-ft @ 8000 rpm. Suzuki RG 250 TV Wolf weighs 128 kg / 282 lbs. Suzuki RG 250 TV Wolf has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: RG 250 TV Wolf
Years: 1988-89
Engine: Two stroke, V- twin
Capacity: 249 cc / 15.2 cu in
Bore x Stroke: 56 x 50.6 mm
Compression Ratio: 7.5 :1
Cooling System: Liquid cooled
Induction: 2 x Mikuni VM32SS carburetors
Ignition: Pointless Electrical Ignition
Spark Plug: NGK BR9ES
Battery: 12V, 5Ah
Starting: Kick
Max Power: 35.7 kW / 49 hp @ 9500 rpm
Max Torque: 40 Nm / 4.1 kgf-m / 29.5 lb-ft @ 8000 rpm
Clutch: Wet, multi-plate
Transmission: 6 Speed, constant mesh
Primary Reduction: 2.565 (59/23)
Gear Ratios: 1st 2.454 (27/11) / 2nd 1.625 (26/16) / 3rd 1.235 (21/17) / 4th 1.045 (23/22) / 5th 0.916 (22/24) / 6th 0.840 (21/25)
Final Drive: Chain, DID520V2, 114 links
Front Suspension: Telescopic fork, 5-way adjustable with anti-dive, oil dampened
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Full Floater, mono-shock, gas/oil damped, 7-way adjustable
Rear Wheel Travel: 140 mm / 5.5 in
Front Brakes: 2 x 300 mm Discs ,4 piston calipers
Rear Brakes: Single 210 mm disc, 2 piston caliper
Front Tyre: 110/70-17
Rear Tyre: 14060-18
Frame: Twin spar, aluminium
Rake: 26o
Trail: 110 mm / 4.3 in
Dimensions: Length: 2015 mm / 79.3 in Width: 695 mm / 27.4 in Height: 1065 mm / 41.9 in
Wheelbase: 1375 mm / 54.1 in
Ground Clearance: 120 mm / 4.7 in
Seat Height: 755 mm / 29.7 in
Turning Radius: 3.1 m / 10.2 ft
Dry Weight: 128 kg / 282 lbs
Fuel Capacity: 17 Litres / 4.5 US gal / 3.7 Imp gal
Oil Capacity: 1.1 Litres / 12 US qt / 1.0 Imp qt
