Suzuki PE 175 (1979) technical specifications

Suzuki PE 175 technical specifications

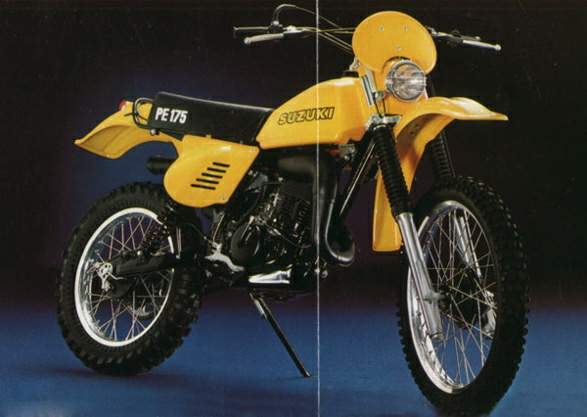

Suzuki PE 175 is produced in 1979. Engine is Two stroke, single cylinder, piston and reed valve, displacement 172 cc / 10.7 cu in , produces power 18 kW / 24 hp @ 9500 rpm and 18.5 Nm / 1.9 kgf-m / 13.7 lb-ft @ 7500 rpm. Suzuki PE 175 weighs 98 kg / 216 lbs. Suzuki PE 175 has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: PE 175
Years: 1979
Engine: Two stroke, single cylinder, piston and reed valve
Capacity: 172 cc / 10.7 cu in
Bore x Stroke: 62 x 57 mm
Compression Ratio: 7.9:1
Cooling System: Air cooled
Lubrication System: Fuel/oil premix, 20:1
Induction: Mikuni VM34SS carburetor
Ignition: Suzuki PEI
Spark Plug: NGK B10EGV, Champion N-59G
Starting: Kick
Max Power: 18 kW / 24 hp @ 9500 rpm
Max Torque: 18.5 Nm / 1.9 kgf-m / 13.7 lb-ft @ 7500 rpm
Clutch: Wet, multiplate
Transmission: 6 Speed
Final Drive: Chain, DAIDO DID 520UB, 106 links
Primary Reduction: 2.761 (58/21)
Final Reduction: 4.000 (48/12)
Gear Ratios: 1st 3.00 (33/11) / 2nd 2.142 (30/14) / 3rd 1.647 (28/17) / 4th 1.300 (26/20) / 5th 1.045 (23/22) / 6th 0.875 (21/24)
Front Suspension: Telescopic pneumatic/coil spring, oil dampened
Rear Suspension: Full-floating suspension system, swingarm, gas/oil damped, sprin pre-load adjustable, damper 4-way adjustable
Front Brakes: Drum, internal expanding
Rear Brakes: Drum, internal expanding
Front Tyre: 3.00-21 4PR
Rear Tyre: 4.00-18 4PR
Caster: 62o
Trail: 113 mm / 4.45 in
Steering Angle: 45o (left & right)
Turning Radius: 2.3 m / 7.5 ft
Dimensions: Length: 2100 mm / 82.7in Width: 880 mm / 34.6 in Height: 1200 mm / 47.2 in
Wheelbase: 1420 mm / 55.9 in
Ground Clearance: 280 mm / 11.0 in
Dry-Weight: 98 kg / 216 lbs
Transmission Oil Capacity: 0.8 Litres / 0.85 US qt / 0.7 Imp qt
Fuel Capacity: 12 Litres / 3.2 US gal / 2.6 Imp gal
