Suzuki GT 500 (1977) technical specifications

Suzuki GT 500 technical specifications

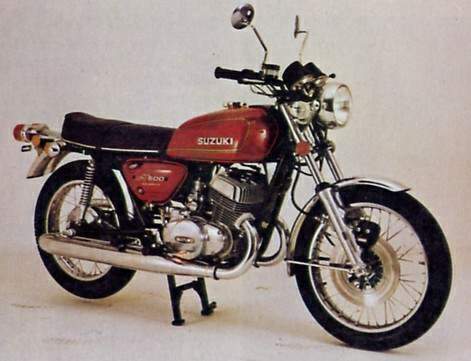

Suzuki GT 500 is produced in 1977. Engine is Two stroke, parallel twin, displacement 492 cc / 30 cu in , produces power 32.8 kW / 44 hp @ 6000 rpm and 53 Nm / 5.4 kgf-m / 39.1 lb-ft @ 5500 rpm. Suzuki GT 500 weighs 179 kg / 395 lbs. Suzuki GT 500 has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: GT 500
Years: 1977
Engine: Two stroke, parallel twin
Capacity: 492 cc / 30 cu in
Bore x Stroke: 70 x 64 mm
Compression Ratio: 6.6:1
Cooling System: Air cooled
Induction: 2 x VM32SS Mikuni carburetors
Ignition: Pointless electronic
Spark Plug: NGK B-7H S
Starting: Kick
Max Power: 32.8 kW / 44 hp @ 6000 rpm
Max Torque: 53 Nm / 5.4 kgf-m / 39.1 lb-ft @ 5500 rpm
Transmission: 5 Speed
Final Drive: Chain
Primary Reduction Ratio: 2.50:1
Final Reduction Ratio: 4.79:1
Gear Ratios: 1st 2.500 / 2nd 1.563 / 3rd 1.158 / 4th 0.955 / 5th 0.870:1
Front Suspension: Telehydraulic fork
Rear Suspension: Dual shocks swinging fork, preload adjustable
Front Brakes: Single disc, single hydraulic piston caliper
Rear Brakes: 160mm drum
Front Tyre: 3.25-19
Rear Tyre: 4.00-18
Rake: 39o
Trail: 121 mm . 4.76 in
Dimensions: Length: 2195 mm / 86.4 in Width: 880 mm / 34.6 in Height: 1105 mm / 43.5 in
Wheelbase: 1466 mm / 57.7 in
Ground Clearance: 160 mm / 6.3 in
Lean Angle: 40o (left and right)
Turning Radius: 2.6 m / 8.5 ft
Dry Weight: 179 kg / 395 lbs
Fuel Capacity: 17 Litres / 4.5 US gal / 3.7 Imp gal
Top Speed (est.): 169 km/h / 105 mph
