Suzuki GSX-R 750 K4 (2004) technical specifications

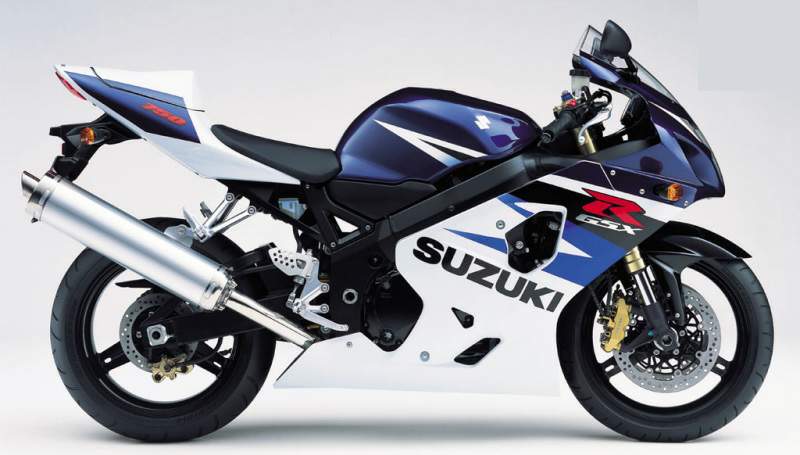

Suzuki GSX-R 750 K4 technical specifications

Suzuki GSX-R 750 K4 is produced in 2004. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 749 c / 45.7 cub. in. , produces power 106.6 kW / 145 hp @ 12800 rpm and 86.3 Nm / 8.8 kgf-m / 64 ft-lb @ 11200 rpm. Suzuki GSX-R 750 K4 top speed is Electronically enforced 299 km/h / 186 mph. Suzuki GSX-R 750 K4 weighs 163 kg / 359 lbs. Suzuki GSX-R 750 K4 has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: GSX-R 750 K4
Years: 2004
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity: 749 c / 45.7 cub. in.
Bore x Stroke: 72 x 46 mm
Compression Ratio: 12.3:1
Cooling System: Liquid cooled
Engine Oil: Synthetic,10W/40
Exhaust System: 4-into-2-into-1 Stainless-steel exhaust with bolt-on aluminium muffler
Lubrication: Wet sump
Induction: Fuel injection, 46 mm throttle bodies
Ignition: Digital DC-CDI
Spark Plug: NGK, CR9E
Starting: Electric
Max Power: 106.6 kW / 145 hp @ 12800 rpm
Max Torque: 86.3 Nm / 8.8 kgf-m / 64 ft-lb @ 11200 rpm
Clutch: Wet, multiple discs
Transmission: 6 Speed, constant mesh
Final Drive: #525 Chain, O-ring sealed, 108 links
Gear Ratios: 1st 2.87 / 2nd 2.06 / 3rd 1.65 / 4th 1.43 / 5th 1.26 / 6th 1.12:1
Frame: Conventional twin-beam aluminium construction
Front Suspension: Inverted Showa cartridge-type front fork with 43mm inner tubes and fully adjustable damping and spring preload
Rear Suspension: Showa Link-type, gas/oil damped, fully adjustable spring preload and compression damping, 4-way adjustable rebound damping
Front Wheel Travel: 130 mm / 5.1 in.
Rear Wheel Travel: 130 mm / 5.1 in.
Front Brakes: 2 x 300 mm Discs, Tokico 4 piston calipers
Rear Brakes: Single 220 mm disc, Tokico 2 piston caliper
Wheels: Alloy, 3 spoke
Front Tyre: 120/70 ZR17
Rear Tyre: 180/55 ZR17
Rake: 24°
Trail: 93 mm / 3.7 in.
Dimensions: Length 2075 mm / 81.7 in. Width 715 mm / 28.1 in. Height 1145 mm / 45.1in.
Wheelbase: 1396 mm / 55 in.
Seat Height: 825 mm / 32.5 in.
Ground Clearance: 128 mm / 5.0 in
Dry Weight: 163 kg / 359 lbs
Fuel Capacity: 17 Litres / 4.5 US gal / 3.7 Imp gal
Average Consumption: 5.5 L100 km / 18.3 km/l / 43 US mpg / 51 Imp gal
Standing ¼ mile: 10.4 sec
Top Speed: Electronically enforced 299 km/h / 186 mph
Colours: White/Blue, Yellow/Grey
Review: Amadirectlink.com / Motorcyclist / Motorbikes Today / MCN / Sports Rider
