Suzuki GSX-R 1100 (1993) technical specifications

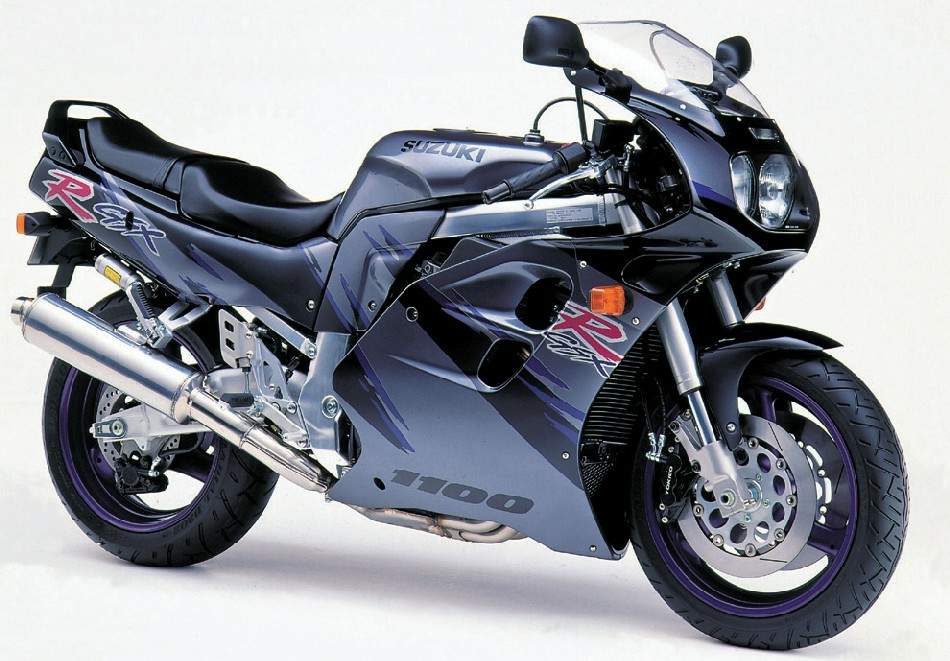

Suzuki GSX-R 1100 is produced in 1993. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder,, displacement 1074 cc / 65.5 cub. in. , produces power 114.7 kW / 156 hp @ 10000 rpm and 115 Nm / 11.7 kgf-m / 84.8 ft-lb @ 9000 rpm. Suzuki GSX-R 1100 top speed is 272 km/h / 169 mph. Suzuki GSX-R 1100 weighs 231 kg / 509 lbs. Suzuki GSX-R 1100 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | GSX-R 1100 |
| Years: | 1993 |
| Engine: | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, |
| Capacity: | 1074 cc / 65.5 cub. in. |
| Bore x Stroke: | 75.5 x 60 mm |
| Compression Ratio: | 11.2:1 |
| Cooling System: | Liquid cooled |
| Engine Oil: | 10W/40 |
| Exhaust System: | Stainless steel, 4-into-2-into-1-into-2 |
| Lubrication: | Wet sump |
| Induction: | 4 x 40 mm Mikuni BST carburetors |
| Ignition: | Analog CDI |
| Spark Plug: | NGK |
| Starting: | Electric |
| Max Power: | 114.7 kW / 156 hp @ 10000 rpm |
| Max Power Rear Wheel: | 101.4 kW / 137.8 hp @ 10000 rpm |
| Max Torque: | 115 Nm / 11.7 kgf-m / 84.8 ft-lb @ 9000 rpm |
| Clutch: | Wet, multiple discs, cable operated |
| Transmission: | 5 Speed |
| Final Drive: | Chain, 114 links |
| Gear Ratios: | 1st 2.71 / 2nd 1.81 / 3rd 1.41 / 4th 1.18 / 5th 1.04:1 |
| Frame: | Double-cradle frame rails extruded aluminium alloy, pentagon-shape |
| Front Suspension: | Kayaba upside-down forks, preload, compression and rebound damping adjustable. |
| Rear Suspension: | Bottom-link type, preload, compression and rebound damping adjustable |
| Front Brakes: | 2 x 310 mm Discs, six-piston calipers |
| Rear Brakes: | Single 240 mm disc, single piston caliper |
| Wheels: | Alloy aluminum, 3 spoke Enkei rims |
| Front Rim: | 89 mm / 3.5 in. |
| Rear Rim: | 140 mm / 5.5 in. |
| Front Tyre: | 120/70ZR17 |
| Rear Tyre: | 180/55ZR17 |
| Rake: | 24.8° |
| Trail: | 100 mm / 3.9in. |
| Dimensions: | Length 2130 mm / 83.9 in. Width 755 mm / 29.7 in. Height 1190 mm / 46.9 in. |
| Wheelbase: | 1485 mm / 58.5 in. |
| Seat Height: | 815 mm / 32.1 in. |
| Ground Clearance: | 130 mm / 5.1 in. |
| Dry Weight: | 231 kg / 509 lbs |
| Wet Weight: | 254 kg / 560 lbs |
| Fuel Capacity: | 21 Litres / 5.5 US gal / 4.6 Imp gal |
| Average Consumption: | 6.7 L/100 km / 14.8 km/l / 34.8 US mpg / 42 Imp mpg |
| Braking 60 km/h / 37 mph - 0: | 13.2 m / 43.3 ft. |
| Braking 100 km/h / 62 mph - 0: | 37.2 m / 122 ft. |
| Standing ¼ mile: | 10.5 sec / 222 km/h / 138mph |
| Top Speed: | 272 km/h / 169 mph |
| Colours: | Blue/White, Red/Black, Black |
