Suzuki GSX 750SD Katana (1983) technical specifications

Suzuki GSX 750SD Katana technical specifications

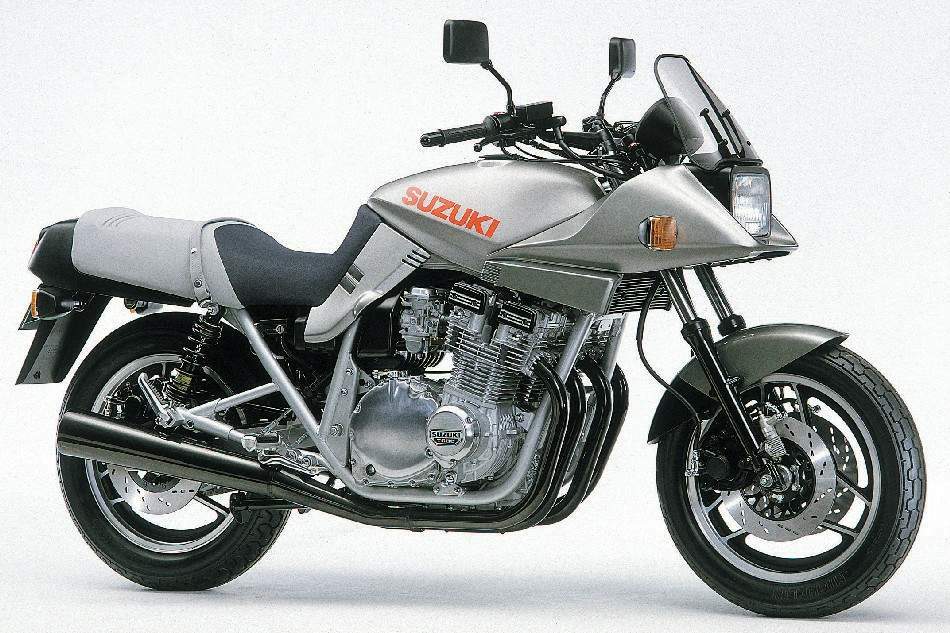

Suzuki GSX 750SD Katana is produced in 1983. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 747 cc / 45.5 cu-in , produces power 62.6 kW / 84 hp @ 9500 rpm and 68 Nm / 6.93 kgf-m / 50.2 lb-ft @ 8500 rpm. Suzuki GSX 750SD Katana top speed is 215 km/h 134 mph. Suzuki GSX 750SD Katana weighs 228 kg / 503 lbs. Suzuki GSX 750SD Katana has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: GSX 750SD Katana
Years: 1983
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity: 747 cc / 45.5 cu-in
Bore x Stroke: 67 x 53 mm
Cooling System: Air cooled
Compression Ratio: 9.4:1
Lubrication: Wet sump
Oil Capacity: 3.2 Litres / 3.4 US qt / 2.8 Imp qt
Induction: 4 x 32 mm Mikuni RS32SS carburetors.
Ignition: Transistorized
Ignition Timing: 15º BTDC below 1500 rpm / 35º BTDC above 2350 rpm
Spark Plug: NGK D8EA (in E-01,24,25,30,34), NGK DR8ES-L (the others) - gap 0.6-0.7 mm (0.024-0.028 in)
Battery: 12V 50.4 kC (14 Ah)/10HR - type YB14L-A2
Generator: Three-phase A.C. generator
Starting: Electric
Max Power: 62.6 kW / 84 hp @ 9500 rpm
Max Torque: 68 Nm / 6.93 kgf-m / 50.2 lb-ft @ 8500 rpm
Transmission: 5 Speed constant mesh
Final Drive: Chain Daido D.I.D 630V, 96 links
Primary Reduction: 2.162:1 (93/43)
Final Reduction: 2.733:1 (41/15)
Gear Ratio: 1st 2.571 (36/14) / 2nd 1.777 (32/18) / 3th 1.380 (29/21) / 4th 1.125 (27/24) / 5th 0.961 (25/26)
Frame: Steel, double cradle
Front Suspension: Telescopic, preload adjustable and hydraulic anti-dive.
Front Wheel Travel: 150 mm / 5.91 in
Rear Suspension: Dual shocks, 5-way preload and 4-way rebound damping adjustable.
Rear Wheel Travel: 109 mm / 4.29 in
Front Brakes: 2 x 275mm Discs, 2 piston calipers
Rear Brakes: Single 255 mm disc, 1 piston caliper
Front Tyre: 3.25 H16
Rear Tyre: 4.00 H17
Caster: 61º30"
Rake: 30°
Trail: 116 mm / 4.67 in
Dimensions: Length 2250 mm / 88.6 in Width 715 mm / 28.1 in Height 1195 mm / 47.0 in
Wheelbase: 1520mm / 59.8 in.
Swat H eight: 775 mm / 30.5 in
Ground Clearance: 175mm / 6.9 in
Dry Weight: 228 kg / 503 lbs
Fuel Capacity: 22 Litres / 5.8 US gal / 4.8 Imp gal
Standing ¼ Mile: 11.9 sec / 182 km/h / 113 mph
Top Speed: 215 km/h 134 mph
