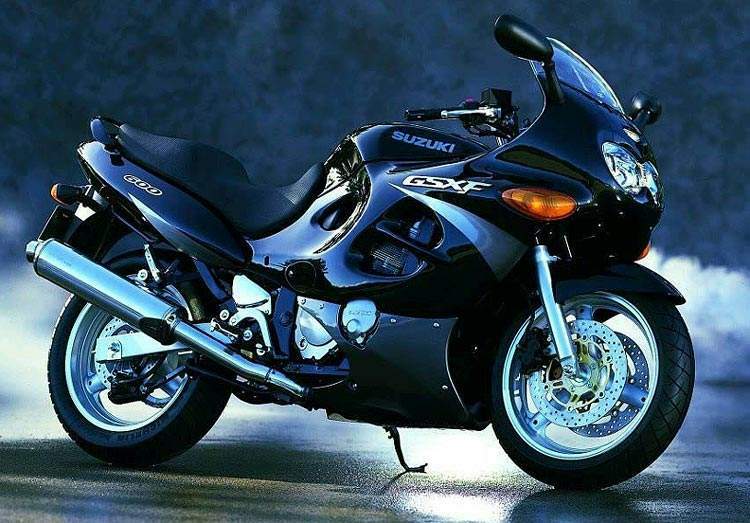

Suzuki GSX 600F Katana (1998-99) technical specifications

Suzuki GSX 600F Katana is produced in 1998-99. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 599 cc / 36.6 cu.in , produces power 64 kW / 86 hp @ 11000 rpm and 59.8 Nm / 6.1 kgf-m / 44.1 ft-lb @ 7950 rpm. Suzuki GSX 600F Katana top speed is 207.5 km/h / 128.9 mph. Suzuki GSX 600F Katana weighs 200 kg / 441 lbs. Suzuki GSX 600F Katana has 3 photos.

Technical specifications

+ Add to 'Compare list'

Model:	GSX 600F Katana
Years:	1998-99
Engine:	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Capacity:	599 cc / 36.6 cu.in
Bore x Stroke:	62.6 x 48.7 mm
Cooling System:	Air/oil cooled
Compression Ratio:	11.3:1
Lubrication:	Wet sump
Oil capacity:	4.7 Litres / 5.0 US qt / 4.1 Imp gal
Induction:	4 x Mikuni BSR32SS carburetors
Ignition:	Transistorized
Ignition timing:	13° B.T.D.C. below 1500 rpm
Battery:	12V 39.6 kC (10Ah)/10HR
Generator:	Three phase A.C. generator
Headlight:	12V 60/55W
Spark Plug:	NGK, CR9EK
Starting:	Electric
Max Power:	64 kW / 86 hp @ 11000 rpm
Max Torque:	59.8 Nm / 6.1 kgf-m / 44.1 ft-lb @ 7950 rpm
Clutch:	Wet, multiple discs, cable operated
Transmission:	6 Speed
Final Drive:	Chain, 118 links
Primary reduction Ratio:	1.744
Final reduction Ratio:	3.133
Frame:	Duble-cradle, tubular steel pipe
Front Suspension:	41 mm Conventional telescopic, coil spring, oil damped, fully adjustable rebound damping
Front Wheel Travel:	130 mm / 5.1 in
Rear Suspension:	Swingarm, progressive linkage, 4-step rebound dampened, 7-step spring preload
Rear Wheel Travel:	142 mm / 5.6 in
Front Brakes:	2 x 290mm Discs, 2 piston caliper
Rear Brakes:	Single 240 mm disc, 2 piston caliper
Front Wheel:	3.50 x 17, cast alumium-alloy
Rear Wheel:	4.50 x17, cast alumium-alloy
Front Tyre:	110/80 ZR17
Rear Tyre:	140/80 ZR17
Rake:	25.3°
Trail:	99.5mm / 3.9 in
Dimensions:	Length 2135 mm / 84.1 in Width 745 mm / 29.3 in Height 1195 mm / 47.0 in
Wheelbase:	1470 mm / 57.9 in
Seat Height:	785 mm / 30.9 in
Dry Weight:	200 kg / 441 lbs
Wet Weight:	219 kg / 482.8 lbs
Fuel Capacity:	20 Litres / 5.2 US gal / 4.4 Imp gal
Reserve:	5 Litres / 1.3 US gal / 1.1 Imp gal
Consumption Average:	5.7 L/100km / 17.5 km/l / 41.2 US mpg / 49.4 Imp mpg
Braking 60 km/h - 0:	13.8 m / 45.3 ft
Braking 100 km/h - 0:	38.8 m / 127.3 ft
Standing ¼ Mile:	12.2 sec / 171.4 km/h / 106.5 mph
Top Speed:	207.5 km/h / 128.9 mph
