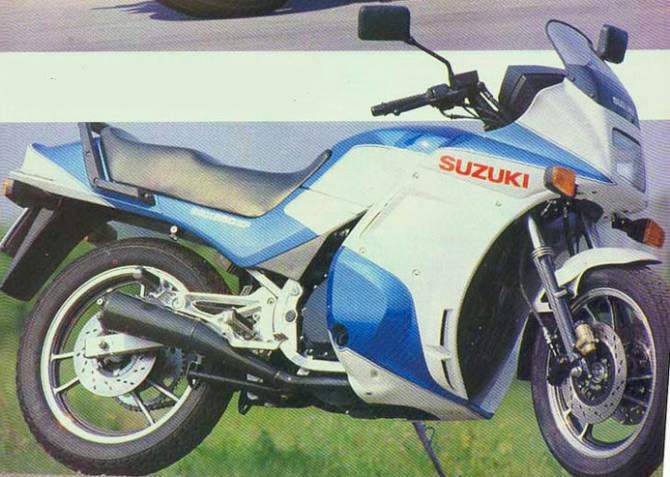

Suzuki GSX 550EF (1984-86) technical specifications
Suzuki GSX 550EF is produced in 1984-86. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 572 cc / 34.9 cu in , produces power 50 kW / 66 hp @ 10000 rpm and 50 Nm / 67.1 hp @ 9000 rpm. Suzuki GSX 550EF top speed is 196 km/h / 122 mph. Suzuki GSX 550EF weighs 196 kg / 432 lbs. Suzuki GSX 550EF has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | GSX 550EF |
| Years: | 1984-86 |
| Engine: | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. |
| Capacity: | 572 cc / 34.9 cu in |
| Bore x Stroke: | 60 x 50.6 mm |
| Compression Ratio: | 9.8:1 |
| Cooling System: | Air/oil cooled |
| Lubrication System: | Wet sump |
| Induction: | 2 x 32 mm Mikuni carburetors |
| Ignition: | Transistorized |
| Starting: | Electric |
| Max Power: | 50 kW / 66 hp @ 10000 rpm |
| Max Torque: | 50 Nm / 67.1 hp @ 9000 rpm |
| Clutch: | Wet, multi-plate |
| Transmission: | 6 Speed constant mesh |
| Final Drive: | #50 (530) Chain, 112 links, O-ring sealed |
| Frame: | Tubular steel, double cradle |
| Front Suspension: | Posi Damp Fork System, telescopic forks, coil spring, oil dampened |
| Rear Suspension: | Full floating suspension system, spring preload, fully adjustable |
| Front Brakes: | 2 x 260 mm discs, 2 piston caliper |
| Rear Brakes: | Single 250 mm disc, 2 piston caliper |
| Front Tyre: | 100/90-16 54H |
| Rear Tyre: | 110/90-18 61H |
| Dimensions: | Length: 2120 mm / 83.5 in Width: 770 mm / 30.3 in Height: 1175 mm / 45.3 in |
| Wheelbase: | 1420 mm / 55.9 in |
| Ground Clearance: | 155 mm / 6.1 in |
| Seat Height: | 780 mm / 30.7 in |
| Dry Weight: | 196 kg / 432 lbs |
| Wet Weight: | 216 kg / 476 lbs |
| Fuel Capacity: | 18 Litres / 4.8 US gal / 4.0 Imp gal |
| Consumption Average: | 4.9 L/100 km / 20.4 km/l / US 48 mpg / 57.6 Imp mpg |
| Standing ¼ Mile: | 12.8 sec |
| Top Speed: | 196 km/h / 122 mph |
