Suzuki GSX 250E (1986) technical specifications

Suzuki GSX 250E technical specifications

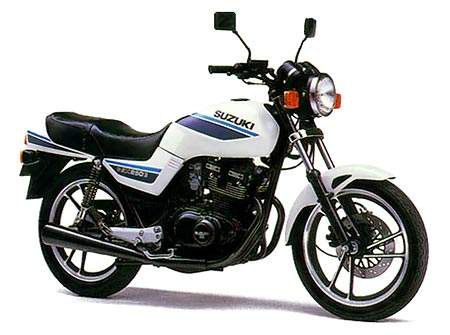

Suzuki GSX 250E is produced in 1986. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, displacement 249 cc / 15.2 cu in , produces power 21.6 kW / 29 hp @ 10000 rpm (dyno: 12 kW / 16.1 hp @ 10000 rpm) and 21.6 Nm / 2.2 kgf-m / 15.9 lb-ft @ 8000 rpm (dyno: 12.3 Nm / 1.25 kgf / 9.1 lb-ft @ 8500 rpm). Suzuki GSX 250E top speed is 137 km/h / 85 mph. Suzuki GSX 250E weighs 157 kg / 345 lbs. Suzuki GSX 250E has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: GSX 250E
Years: 1986
Engine: Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Capacity: 249 cc / 15.2 cu in
Bore x Stroke: 60 х 44.2 mm
Compression Ratio: 10.5:1
Cooling System: Air cooled
Induction: 2 x 30mm Mikuni BS30SS carburetors
Ignition: Electronic
Starting: Electric
Max Power: 21.6 kW / 29 hp @ 10000 rpm (dyno: 12 kW / 16.1 hp @ 10000 rpm)
Max Torque: 21.6 Nm / 2.2 kgf-m / 15.9 lb-ft @ 8000 rpm (dyno: 12.3 Nm / 1.25 kgf / 9.1 lb-ft @ 8500 rpm)
Transmission: 6 Speed
Final Drive: Chain
Front Suspension: Telescopic forks
Rear Suspension: Swinging arm, dual dampers, 5-way spring preload
Front Brakes: Single 275mm disc
Rear Brakes: Drum
Front Tyre: 3.60-18
Rear Tyre: 4.10-18
Dimensions: Length: 2100 mm / 82.7 in Width: 755 mm / 33.1 in Height: 1115 mm / 43.9 in
Wheelbase: 1410 mm / 55.5 in
Dry Weight: 157 kg / 345 lbs
Fuel Capacity: 12 Litres / 3.2 US gal / 2.6 Imp gal
Consumption Average: 4.3 L/100 km / 23.4 km/l / 55 US mpg / 66.1 Imp mpg
Standing ¼ Mile: 16.2 sec
Top Speed: 137 km/h / 85 mph
