Suzuki GSX 1300R Hayabusa Special Edition (2006) technical specifications

Suzuki GSX 1300R Hayabusa Special Edition technical specifications

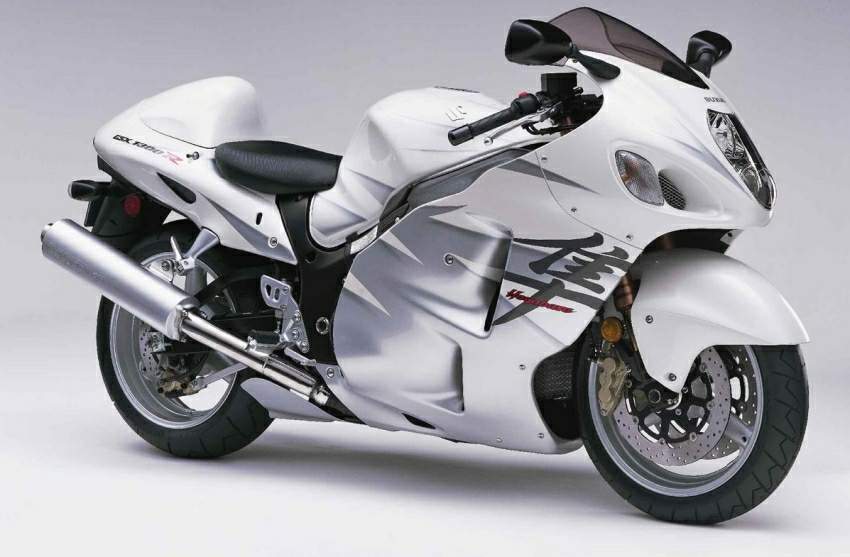

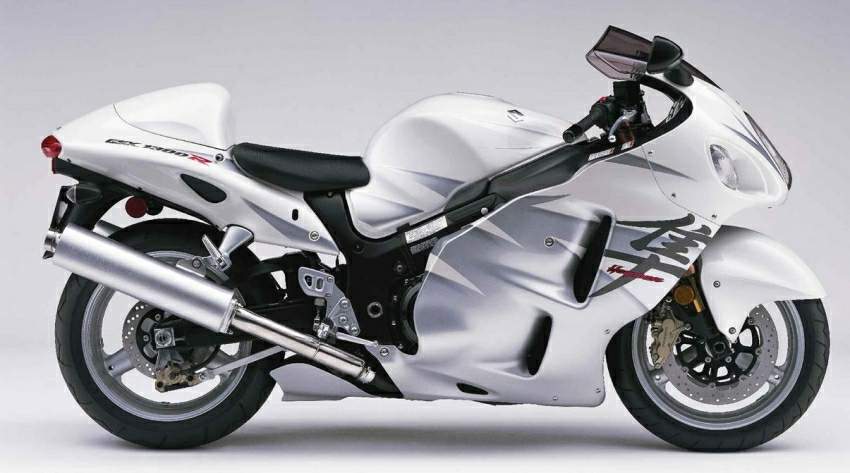

Suzuki GSX 1300R Hayabusa Special Edition is produced in 2006. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 1298 cc / 79.2 u in , produces power 127.6 kW / 175 hp @ 9800 rpm and 138 Nm / 14.07 kg-m / 102 lb-ft @ 7000 rpm. Suzuki GSX 1300R Hayabusa Special Edition weighs 221.5 kg / 488.3 lbs. Suzuki GSX 1300R Hayabusa Special Edition has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: GSX 1300R Hayabusa Special Edition
Years: 2006
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 1298 cc / 79.2 u in
Bore x Stroke: 81 x 63 mm
Compression Ratio: 11.0:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Engine Oil: 10W/40
Induction: Mikuni Denso Fuel Injection
Ignition: Electronic
Spark Plug: NGK, CR9E
Starting: Electric
Max Power: 127.6 kW / 175 hp @ 9800 rpm
Max Torque: 138 Nm / 14.07 kg-m / 102 lb-ft @ 7000 rpm
Clutch: Wet, multiple discs, hydraulic operated
Transmission: 6 Speed
Final Drive: #530 chain
Frame: Twin-spar steel
Front Suspension: Inverted telescopic, coil spring, fully adjustable spring preload, rebound and compression damping
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Link-type, gas/oil damped, fully adjustable spring preload, compression damping, and rebound damping
Rear Wheel Travel: 140 mm / 5.5 in
Front Brakes: 2 x 320mm Discs, 6 piston calipers
Rear Brakes: Single 240mm disc, 2 piston caliper
Front Tyre: 120/70 ZR17
Rear Tyre: 190/50 ZR17
Rake: 24.2°
Trail: 98 mm / 3.8 in
Dimensions: Length 2140 mm / 84.3 in Width 740 mm / 29.1in Height 1155 mm / 45.5 in
Wheelbase: 1480 mm / 58.3in
Seat Height: 805 mm / 31.7 in
Dry Weight: 221.5 kg / 488.3 lbs
Wet Weight: 249 kg / 549 lbs
Fuel Capacity: 21 Litres / 5.5 US gal / 4.6 Imp gal
