Suzuki GSX 1300R Hayabusa (2022) technical specifications

Suzuki GSX 1300R Hayabusa technical specifications

Suzuki GSX 1300R Hayabusa is produced in 2022. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 1340 cc / 81.8 cu-in , produces power 187.7hp / 140kW @ 9700rpm and 150Nm / 110.6 lb-ft @ 7000rpm. Suzuki GSX 1300R Hayabusa weighs 220 kg / 485 lbs. Suzuki GSX 1300R Hayabusa has 13 photos.

Technical specifications

+ Add to 'Compare list'
Model: GSX 1300R Hayabusa
Years: 2022
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 1340 cc / 81.8 cu-in
Bore x Stroke: 81 x 65 mm
Compression Ratio: 12.5:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Induction: Fuel injection with Ride-by-Wire throttle bodies
Ignition: Electronic ignition (transistorized)
Starting: Electric
Max Power: 187.7hp / 140kW @ 9700rpm
Max Torque: 150Nm / 110.6 lb-ft @ 7000rpm
Clutch: Wet, multi-plate type, SCAS-equipped
Transmission: 6 Speed constant mesh
Final Drive: Drive chain, RK GB50GSVZ4, 114L

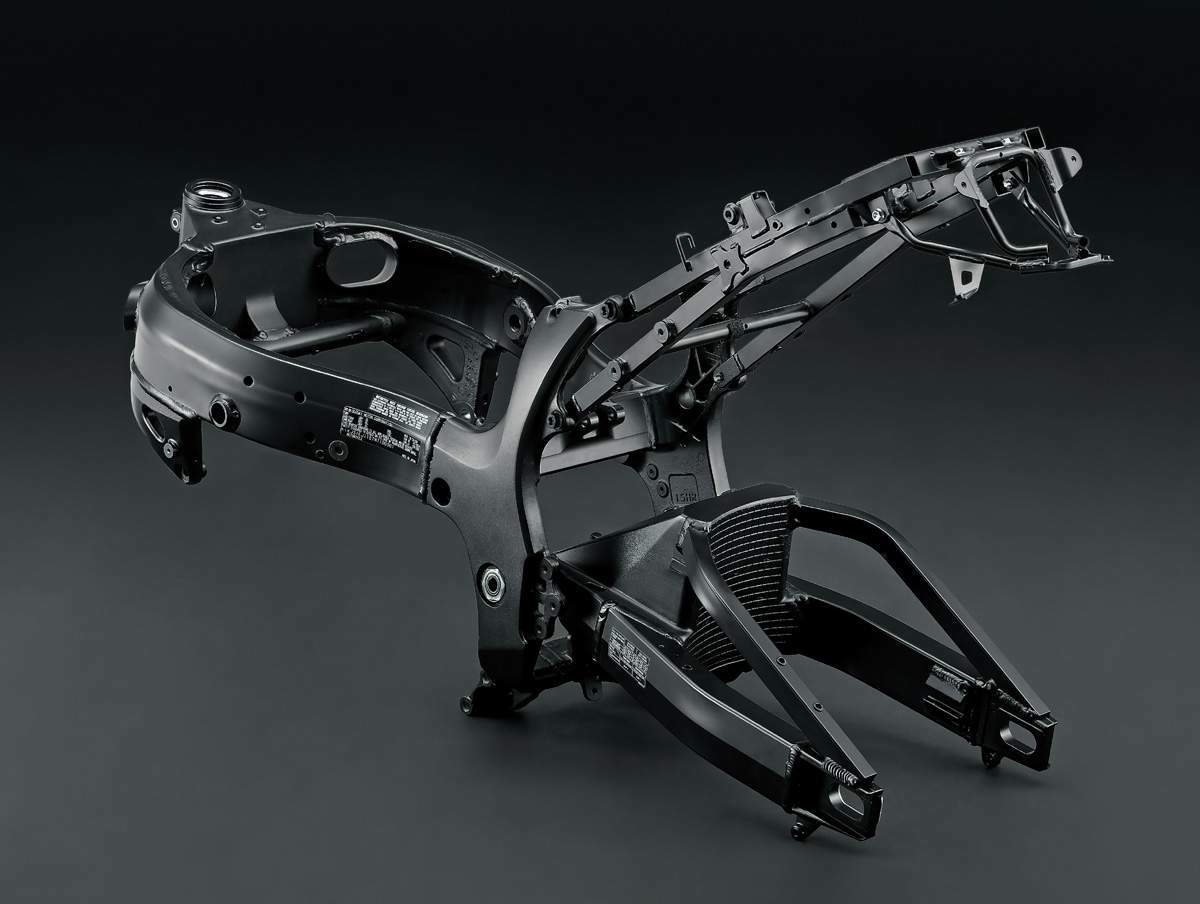

Frame: Twin-spar aluminium frame and swingarm
Front Suspension: KYB inverted telescopic, coil spring, oil damped, fully adjustable
Rear Suspension: KYB link type, coil spring, oil damped

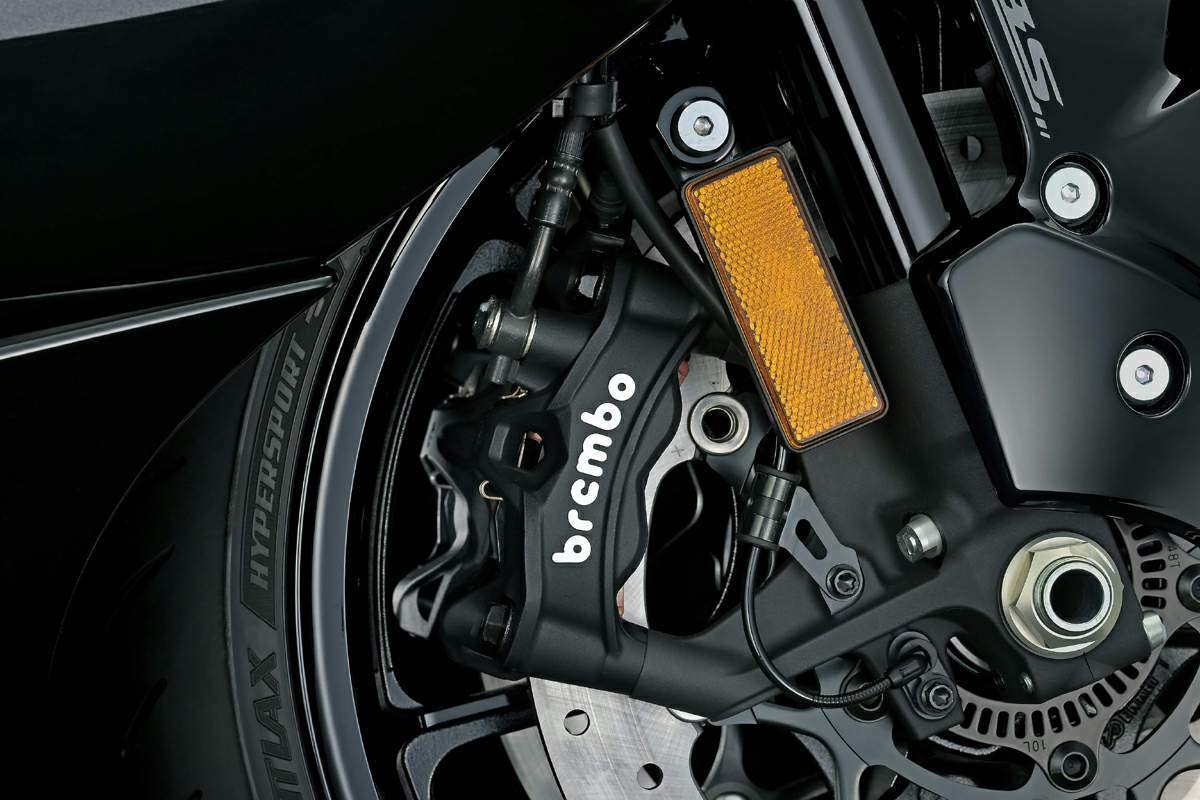

Front Brakes: 2 x 320mm floating discs, Brembo Stylema 4 piston calipers, fully adjustable
Rear Brakes: Single 260mm floating disc, Nissin 1 piston caliper, fully adjustable
ABS: Standard
Wheels Front: 17 M/C x MT3.50, cast aluminum alloy
Wheels Rear: 17 M/C x MT6.00, cast aluminum alloy
Front Tyre: 1120/70ZR17M/C (58W), tubeless
Rear Tyre: 190/50ZR17M/C (73W), tubeless
Rake: 23°
Trail: 90 mm / 3.54 in
Dimensions: Length: 2180mm / 85.8 in Width: 735mm / 28.9 in Weight: 1165mm / 45.9 in
Wheelbase: 1480 mm / 58.3in
Seat Height: 800 mm / 31.5 in
Ground Clearance: 125 mm / 4.9 in
Dry Weight: 220 kg / 485 lbs
Wet Weight: 264kg / 582 lbs
Fuel Capacity: 20 Litres / 5.3 US gal
