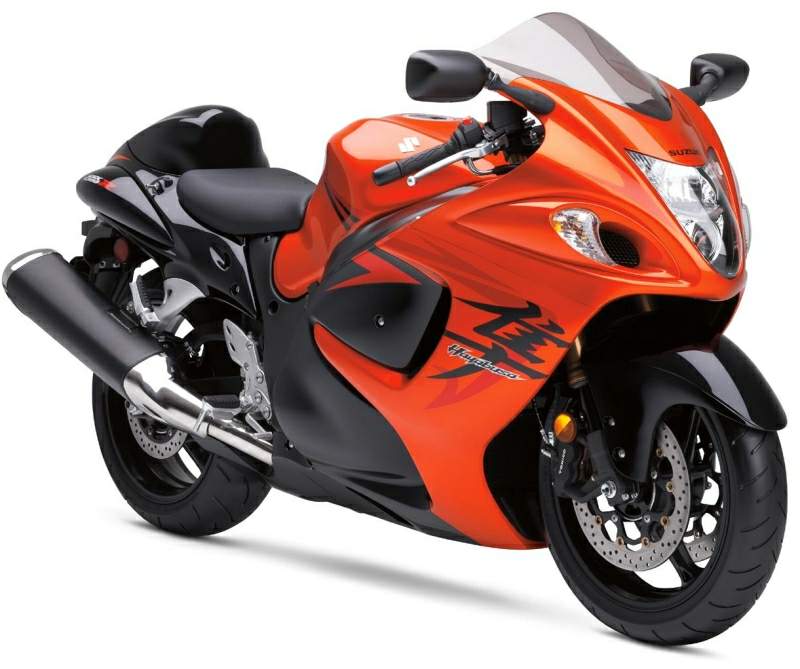

Suzuki GSX 1300R Hayabusa (2008) technical specifications

Suzuki GSX 1300R Hayabusa technical specifications

Suzuki GSX 1300R Hayabusa is produced in 2008. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 1340 cc / 81.8 cu-in , produces power 146 kW / 195.7 hp @ 9800 rpm and 155 Nm / 15.8 kg-m / 113.6 lb-ft @ 7200 rpm. Suzuki GSX 1300R Hayabusa top speed is 296.9 km/h / 184.49 mph. Suzuki GSX 1300R Hayabusa weighs 220 kg / 485 lbs. Suzuki GSX 1300R Hayabusa has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: GSX 1300R Hayabusa
Years: 2008
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 1340 cc / 81.8 cu-in
Bore x Stroke: 81 x 65 mm
Compression Ratio: 12.5:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Induction: Suzuki Fuel Injection fuel injection
Ignition: Electronic
Starting: Electric
Max Power: 146 kW / 195.7 hp @ 9800 rpm
Max Torque: 155 Nm / 15.8 kg-m / 113.6 lb-ft @ 7200 rpm
Clutch: Clutch Type: Wet multi-plate, manual Clutch Actuation System: Hydraulic Clutch Spring Type: Coil Number of Clutch Springs: 6 Number of Clutch Plates: 10 Drive; 9 Driven
Transmission: 6 Speed
Final Drive: Chain
Gear Ratio: 1st 1.596 / 2nd 2.615 / 3rd 1.937 / 4th 1.526 / 5th 1.136 / 5th 1.136
Primary Drive Ratio: 1.596 (83/52)
Final Drive Ratio: 2.388 (43/18)
Frame: Design (Material): Twin-spar (aluminum alloy)
Front Suspension: Inverted telescopic coil springs, spring preload, rebound and compression damping fully adjustable.
Rear Suspension: Link type, oil damped, coil springs, spring preload, rebound and compression damping fully adjustable.
Front Brakes: 2 x 310 mm Discs, 4 piston calipers
Rear Brakes: Single 260 mm disc, 1 piston caliper
Wheels Front: 17 M/C x MT3.50, cast aluminum alloy
Wheels Rear: 17 M/C x MT6.00, cast aluminum alloy
Front Tyre: 120/70 ZR17
Rear Tyre: 190/50 ZR17
Rake: 24.2°
Trail: 98 mm / 3.8 in
Dimensions: Length 2190 mm / 86.2 in Width 735 mm / 28.9 in Height 1165 mm / 45.9 in
Wheelbase: 1480 mm / 58.3in
Seat Height: 805 mm / 31.7 in
Ground Clearance: 120 mm / 4.7 in
Dry Weight: 220 kg / 485 lbs
Wet Weight: 266 kg / 586 lbs
Fuel Capacity: 21 Litres / 5.5 US gal / 4.6 Imp gal
Consumption Average: 6.1 L/100 km / 16.3 km/l / 38.3 US mpg / 46.0 Imp mpg
Standing 0 - 100km: 3.0 sec
Standing 0 - 140km: 4.4 sec
Standing 0 - 200km: 7.3 sec
Acceleration 60-140 km/h: 7.1 sec
Acceleration 100 - 140 km/h: 3.2 sec
Acceleration 140 - 180 km/h: 3.4 sec
Standing ¼ Mile: 10.2 sec
Top Speed: 296.9 km/h / 184.49 mph
