Suzuki GSX 1250 FA-Z Special Edition (2015) technical specifications

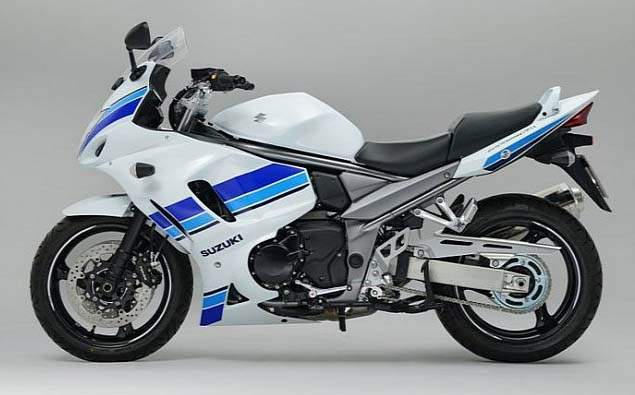

Suzuki GSX 1250 FA-Z Special Edition technical specifications

Suzuki GSX 1250 FA-Z Special Edition is produced in 2015. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 1254.8 cc / 76.5 cu-in , produces power 70.5 kW / 96.5 hp @ 7500 rpm and 108 Nm / 11.0 kg-fm / 79.7 ft.lb @ 3500 rpm. Suzuki GSX 1250 FA-Z Special Edition weighs 232 kg / 511.4 lbs. Suzuki GSX 1250 FA-Z Special Edition has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: GSX 1250 FA-Z Special Edition
Years: 2015
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 1254.8 cc / 76.5 cu-in
Bore x Stroke: 79 x 64 mm
Cooling System: Liquid cooled
Compression Ratio: 10.5:1
Lubrication: Wet sump
Engine Oil: Synthetic, 10-40
Induction: Fuel Injection
Ignition: Digital transistorized
Starting: Electric
Max Power: 70.5 kW / 96.5 hp @ 7500 rpm
Max Torque: 108 Nm / 11.0 kg-fm / 79.7 ft.lb @ 3500 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 6 Speed
Final Drive: Chain
Frame: Steel, double cradle frame
Front Suspension: Telescopic, oil damped, preload adjustable
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Link-type suspension, 7-way adjustable preload, 4-way adjustable rebound
Rear Wheel Travel: 136 mm / 5.3 in
Rear Brakes: Single 240mm disc
Front Tyre: 120/70-ZR17
Rear Tyre: 180/55 ZR17
Rake: 25°
Trail: 104 mm / 4.09 in
Dimensions: Length 2130 mm / 83.9 in Width 790 mm / 31.1 in Height 1235 mm / 48.6 in
Wheelbase: 1485 mm / 58.5 in
Seat Height: 805 mm - 825 mm / 31.7 in -32.5 in
Ground Clearance: 135 mm / 5.3 in
Dry Weight: 232 kg / 511.4 lbs
Wet Weight: 257 kg / 567 lbs
Fuel Capacity: 18.5 Litres / 4.9 US gal / Imp gal
