Suzuki GSR 750Z Yoshimura Special Edition (2014) technical specifications

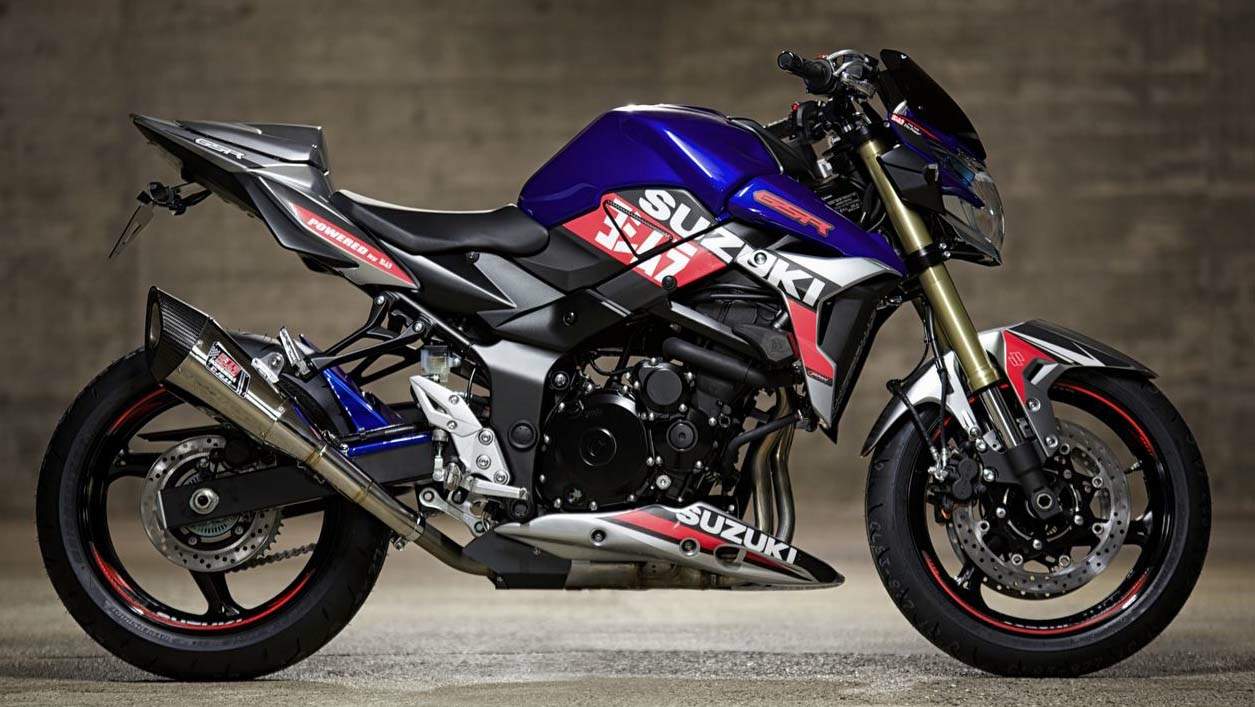

Suzuki GSR 750Z Yoshimura Special Edition technical specifications

Suzuki GSR 750Z Yoshimura Special Edition is produced in 2014. Engine is Four stoke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 748 cc / 45.6 cu in , produces power 78 kW /105 hp @ 10000rpm and 80.0 Nm / 8.2 kgf-m / 59 lb.ft @ 9000rpm. Suzuki GSR 750Z Yoshimura Special Edition top speed is 223.2 km/h / 138.7 mph. Suzuki GSR 750Z Yoshimura Special Edition wet weight is 211kg / 465.2lb. Suzuki GSR 750Z Yoshimura Special Edition has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: GSR 750Z Yoshimura Special Edition
Years: 2014
Engine: Four stoke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 748 cc / 45.6 cu in
Bore x Stroke: 72 mm × 46 mm
Cooling System: Liquid cooled
Compression Ratio: 12.3:1
Lubrication: Wet sump
Oil Capacity: 3.9 Litres / 4.1 US qt / 3.4 Imp qt
Induction: Fuel injection
Ignition: Digital CDI
Starting: Electric
Emission details: Catalytic converter
Exhaust: Triangle-shaped muffler, stainless steel heat shield
Max Power: 78 kW /105 hp @ 10000rpm
Max Torque: 80.0 Nm / 8.2 kgf-m / 59 lb.ft @ 9000rpm
Clutch: Wet, cable operated
Transmission: 6 Speed
Final Drive: Chain, RK525ROZ5Y, 116 links
Primary reduction Ratio: 1.857 (78/42)
Final reduction Ratio: 2.470 (42/17)
Front Suspension: 41mm Inverted KYB front forks
Rear Suspension: Steel swingarm fitted with a KYB monoshock
Front Brakes: 2 x 310mm Floating discs, 2 piston Tokico calipers
Rear Brakes: Single 240 mm disc, 1 piston Nissin caliper
Front Wheel: 17M/C × MT3.50, cast aluminum alloy
Rear Wheel: 17M/C × MT5.50, cast aluminum alloy
Front Tyre: 120/70 ZR17M/C (58W), tubeless
Rear Tyre: 180/55 ZR17M/C (73W), tubeless
Rake: 25°
Trail: 102 mm / 4.0 in
Dimensions: Length 2115mm / 83.3 in Width 785 mm / 30.9 in Height 1060 mm / 41.7 in
Wheelbase: 1450mm / 57.1in
Seat Height: 815 mm / 32.1in
Ground Clearance: 145 mm / 5.7 in
Wet Weight: 211kg / 465.2lb
Fuel Capacity: 17.5 Litres / 4.6 US gal / 3.8 Imp gal
Consumption Average: 5.2 L/100 km / 19.2 km/l / 45.2 US mpg / 54.2 Imp mpg
Standing ¼ Mile: 11.6 sec
Top Speed: 223.2 km/h / 138.7 mph
