Suzuki GSR 750 ABS (2013) technical specifications

Suzuki GSR 750 ABS technical specifications

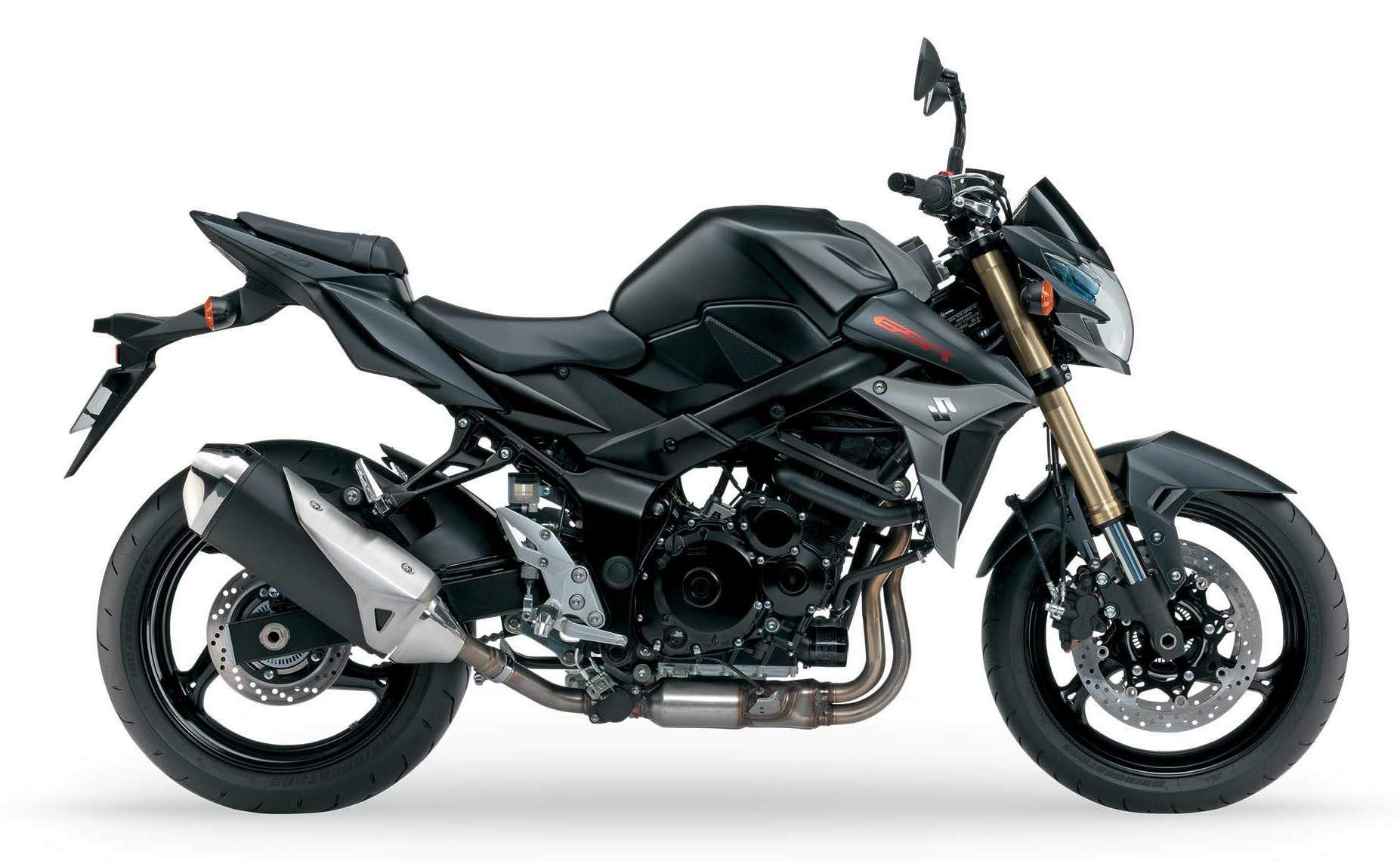

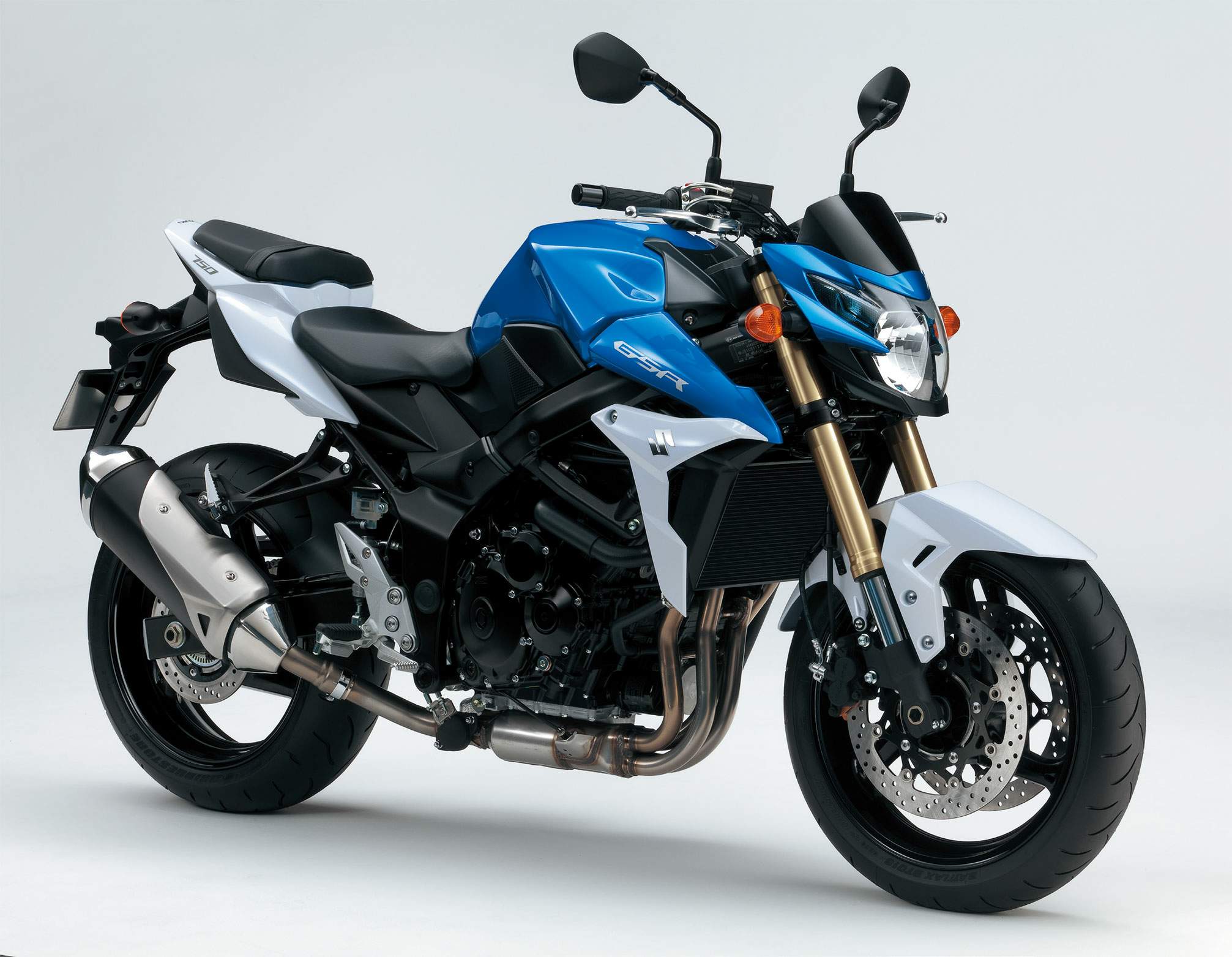

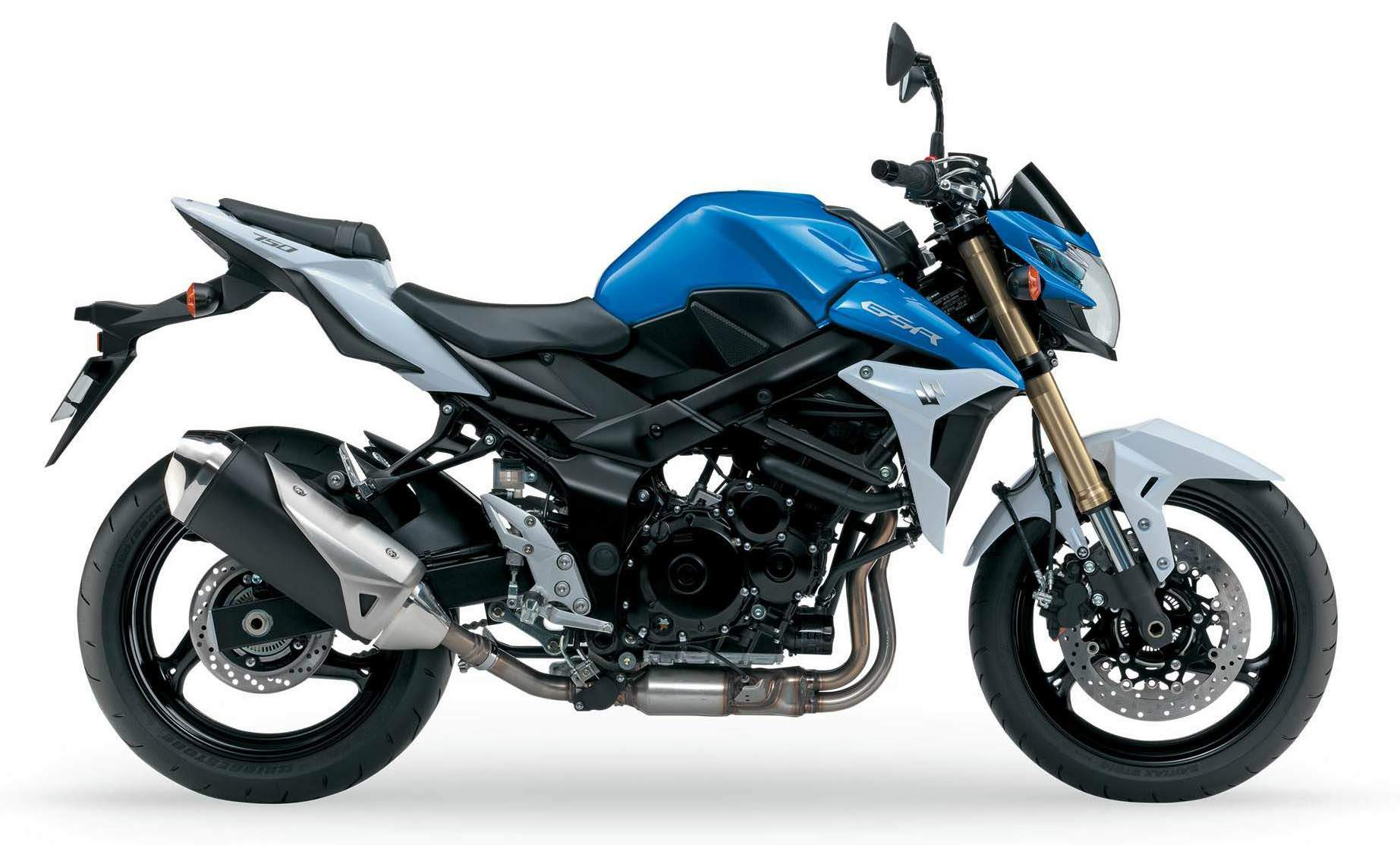

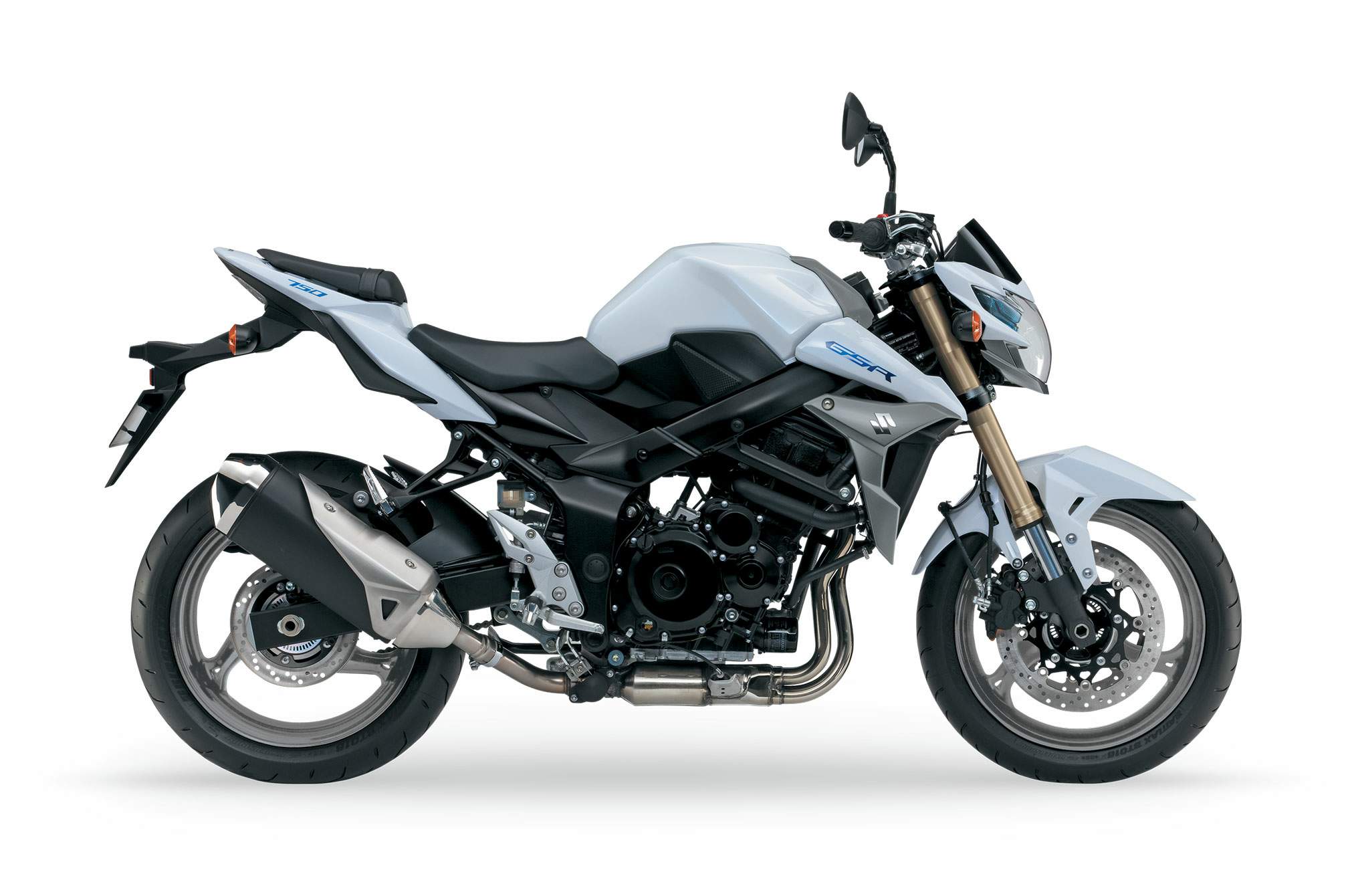

Suzuki GSR 750 ABS is produced in 2013. Engine is Four stoke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 748 cc / 45.6 cu in , produces power 78 kW /105 hp @ 10000rpm and 80.0 Nm / 8.2 kgf-m / 59 lb.ft @ 9000rpm. Suzuki GSR 750 ABS top speed is 223.2 km/h / 138.7 mph. Suzuki GSR 750 ABS wet weight is 211kg / 465.2lb. Suzuki GSR 750 ABS has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: GSR 750 ABS
Years: 2013
Engine: Four stoke, transverse four cylinder, DOHC, 4 valves per cylinder
Capacity: 748 cc / 45.6 cu in
Bore x Stroke: 72 mm × 46 mm
Cooling System: Liquid cooled
Compression Ratio: 12.3:1
Lubrication: Wet sump
Oil Capacity: 3.9 Litres / 4.1 US qt / 3.4 Imp qt
Induction: Fuel injection
Ignition: Digital CDI
Starting: Electric
Emission details: Catalytic converter
Exhaust: Triangle-shaped muffler, stainless steel heat shield
Max Power: 78 kW /105 hp @ 10000rpm
Max Torque: 80.0 Nm / 8.2 kgf-m / 59 lb.ft @ 9000rpm
Clutch: Wet, cable operated
Transmission: 6 Speed
Final Drive: Chain, RK525ROZ5Y, 116 links
Primary reduction Ratio: 1.857 (78/42)
Final reduction Ratio: 2.470 (42/17)
Front Suspension: 41mm Inverted KYB front forks
Rear Suspension: Steel swingarm fitted with a KYB monoshock
Front Brakes: 2 x 310mm Floating discs, 2 piston Tokico calipers
Rear Brakes: Single 240 mm disc, 1 piston Nissin caliper
Front Wheel: 17M/C × MT3.50, cast aluminum alloy
Rear Wheel: 17M/C × MT5.50, cast aluminum alloy
Front Tyre: 120/70 ZR17M/C (58W), tubeless
Rear Tyre: 180/55 ZR17M/C (73W), tubeless
Rake: 25°
Trail: 102 mm / 4.0 in
Dimensions: Length 2115mm / 83.3 in Width 785 mm / 30.9 in Height 1060 mm / 41.7 in
Wheelbase: 1450mm / 57.1in
Seat Height: 815 mm / 32.1in
Ground Clearance: 145 mm / 5.7 in
Wet Weight: 211kg / 465.2lb
Fuel Capacity: 17.5 Litres / 4.6 US gal / 3.8 Imp gal
Consumption Average: 5.2 L/100 km / 19.2 km/l / 45.2 US mpg / 54.2 Imp mpg
Standing ¼ Mile: 11.6 sec
Top Speed: 223.2 km/h / 138.7 mph
