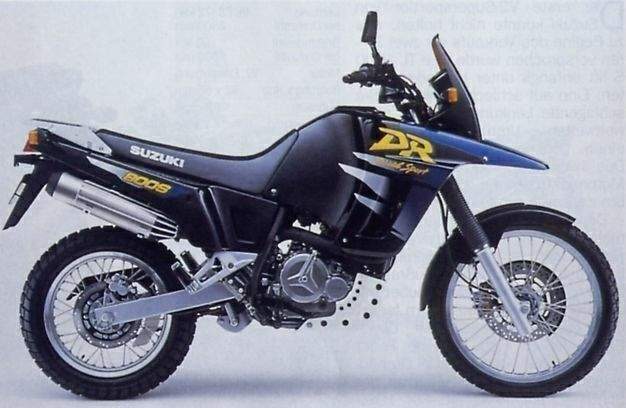

Suzuki DR 800S Big (1996-99) technical specifications
Suzuki DR 800S Big is produced in 1996-99. Engine is Air/oil cooled, four stroke, single cylinder. SOHC, 4 Valve per cylinder., displacement 779 cc / 47.5 cu in , produces power 40 kW / 54 hp @ 6600 rpm and 62 Nm / 6.3 kgf-m / 45.7 lb-ft @ 5400 rpm. Suzuki DR 800S Big weighs 194 kg / 428 lbs. Suzuki DR 800S Big has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | DR 800S Big |
| Years: | 1996-99 |
| Engine: | Air/oil cooled, four stroke, single cylinder. SOHC, 4 Valve per cylinder. |
| Capacity: | 779 cc / 47.5 cu in |
| Bore x Stroke: | 9.5:1 |
| Compression Ratio: | 105 x 90 mm |
| Cooling System: | Air/oil cooled |
| Induction: | 2 x Mikuni BST 33 SS carburetors |
| Ignition: | Electronic |
| Starting: | Electric |
| Max Power: | 40 kW / 54 hp @ 6600 rpm |
| Max Torque: | 62 Nm / 6.3 kgf-m / 45.7 lb-ft @ 5400 rpm |
| Transmission: | 5 Speed constant mesh |
| Final Drive: | Chain, 116 links |
| Front Suspension: | 38mm Telescopic, coil spring, air damped |
| Rear Suspension: | Link type, coil spring, gas/oil damped, spring preload fully adjustable |
| Front Brakes: | Single 300 mm disc, 2 piston caliper |
| Rear Brakes: | Single 220 mm disc |
| Front Tyre: | 90/90-21 |
| Rear Tyre: | 130/80-17 |
| Dimensions: | Length 2265 mm / 89.2 in Width: 865 mm / 34.1 in Height 1325 mm / 52.2 in |
| Wheelbase: | 1520 mm / 59.8 in |
| Seat Height: | 876 mm / 34.5 in |
| Ground Clearance: | 230 mm / 9.1 in |
| Dry Weight: | 194 kg / 428 lbs |
| Wet Weight: | 209 kg / 461 lbs |
| Braking 60 km/h - 0: | 14.8 m / 48.6 ft |
| Braking 100 km/h - 0: | 41.6 m / 136.5 ft |
| Standing ¼ mile: | 13.8 sec / 146.9 km/h / 91.3 mph |
| Top Seed: | 170.7 km/h / 106 mph |
| Fuel Capacity: | 24 Litres / 6.3 US gal / 5.2 Imp gal |
| Road Test: | Bike Magazine Group Test 1992 Motosprint Group Test 1992 |
