Suzuki Boulevard S40 (2013-14) technical specifications

Suzuki Boulevard S40 technical specifications

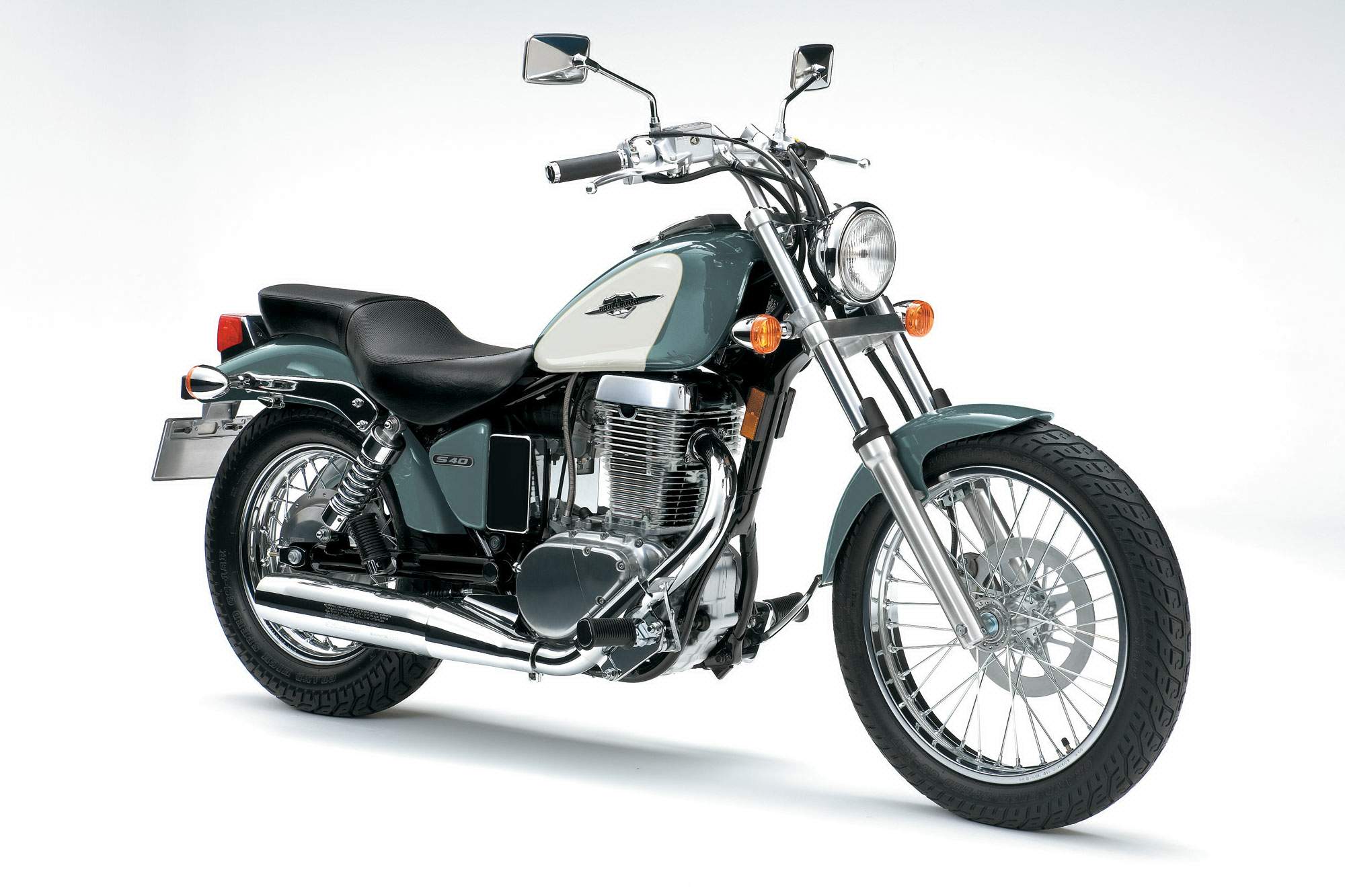

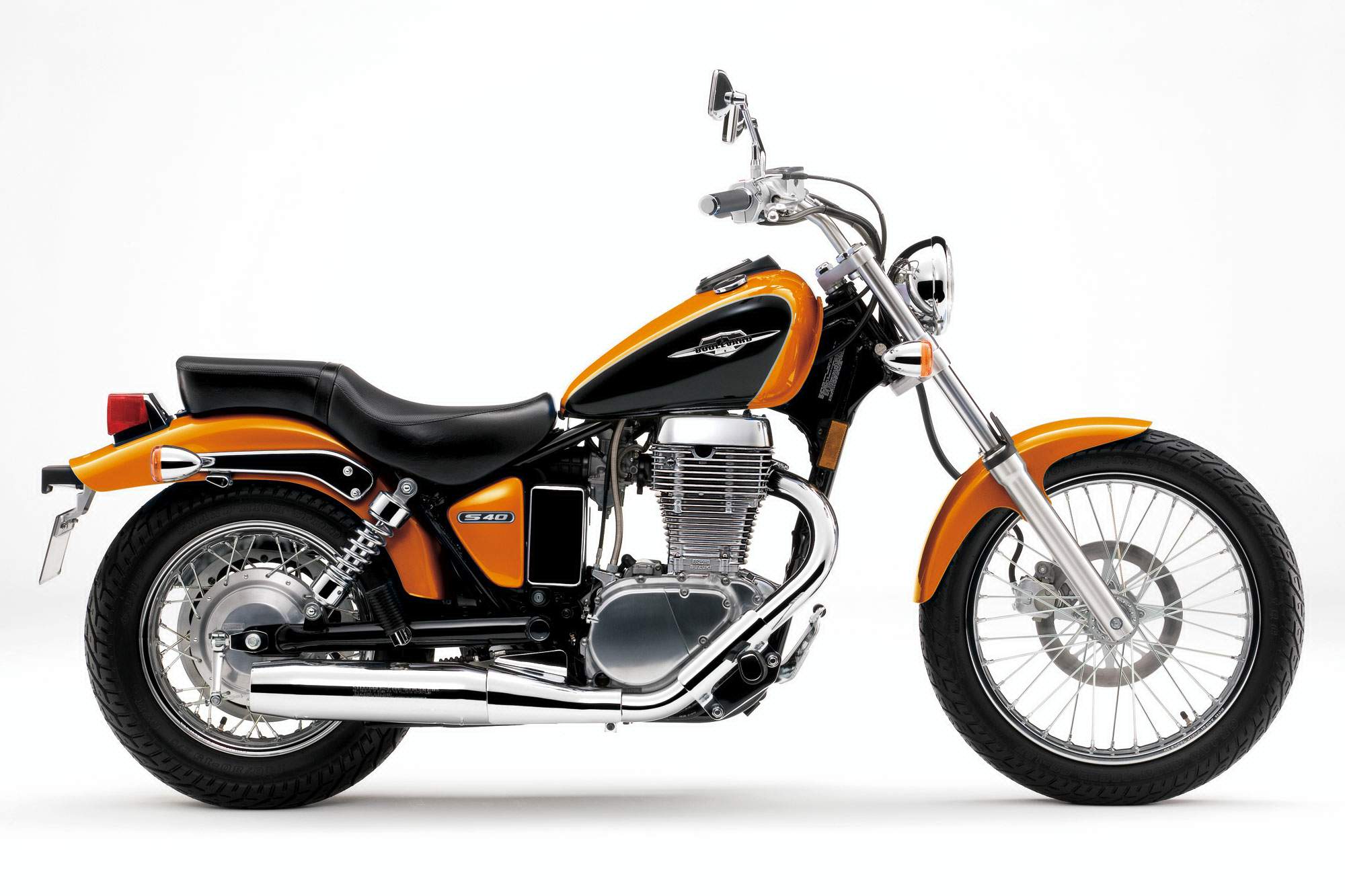

Suzuki Boulevard S40 is produced in 2013-14. Engine is Four stroke, single cylinder, SOHC, displacement 652 cc / 39.8 cu-in , produces power 23 kW / 31 hp @5400 rpm and 50 Nm / 5.1 kgf-m / 37 lb-ft @3400 rpm. Suzuki Boulevard S40 weighs 160 kg / 352 lbs. Suzuki Boulevard S40 has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: Boulevard S40
Years: 2013-14
Engine: Four stroke, single cylinder, SOHC
Capacity: 652 cc / 39.8 cu-in
Bore x Stroke: 94 x 94.0 mm
Cooling System: Air cooled
Compression Ratio: 8.5:1
Lubrication: Wet sump
Induction: Mikuni BS40
Ignition: Transistorized
Starting: Electric
Max Power: 23 kW / 31 hp @5400 rpm
Max Torque: 50 Nm / 5.1 kgf-m / 37 lb-ft @3400 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 5 Speed
Final Drive: Belt
Front Suspension: Telescopic 38 mm stanchions, coil spring, oil damped
Front Wheel Travel: 140 mm / 5.5 in
Rear Suspension: Twin shock, 5-way adjustable spring preload
Rear Wheel Travel: 80 mm / 3.1 in
Front Brakes: 265 mm Single disc
Rear Brakes: Drum, rod operated
Front Tyre: 100/90-19 57H, tube type
Rear Tyre: 140/80-15 67H, tube type
Rake: 35°
Trail: 147 mm / 5.8 in
Dimensions: Length 2180 mm / 85.8 in Width 720 mm / 28.3 in Height 1105 mm / 43.5 in
Wheelbase: 1480 mm / 58.3 in
Seat Height: 700 mm / 27.6 in
Ground Clearance: 135mm / 5.3 in
Dry Weight: 160 kg / 352 lbs
Wet Weight: 172 kg / 380 lbs
GVWR: 356 kg / 785 lbs
Fuel Capacity: 10.5 Litres / 2.6 US gal
