Suzuki Boulevard, Intruder M109R Cobra Special (2006-07) technical specifications

Suzuki Boulevard, Intruder M109R Cobra Special technical specifications

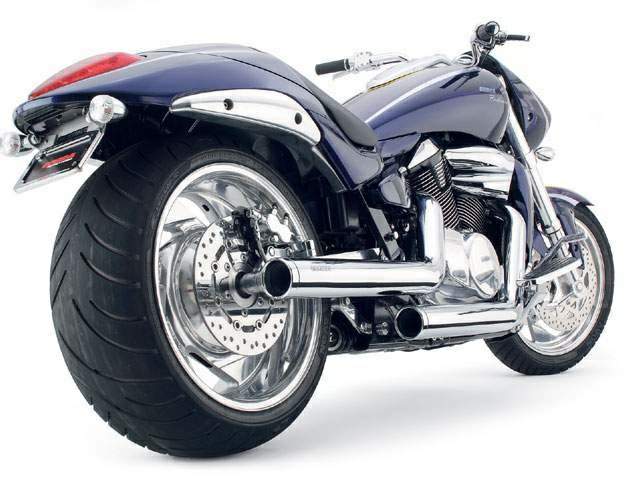

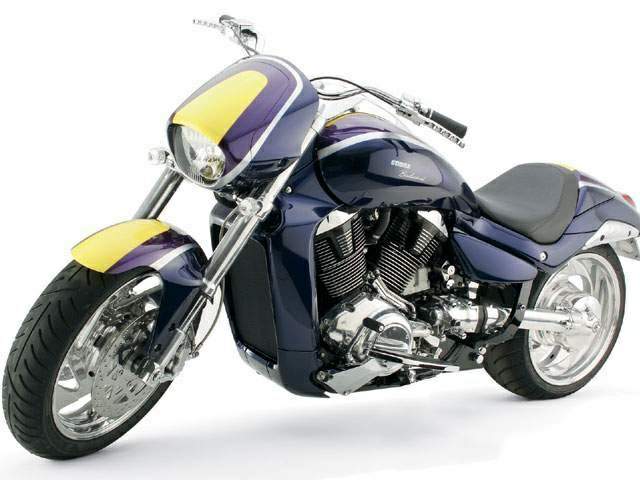

Suzuki Boulevard, Intruder M109R Cobra Special is produced in 2006-07. Engine is Four stroke, 54° V-Twin, displacement 1786 cc / 109 cu. in , produces power 92 kW / 123 hp @ 6200 rpm and 160 Nm / 16.3 kgf-m / 118 lb-ft @ 3200 rpm. Suzuki Boulevard, Intruder M109R Cobra Special wet weight is 347 kg / 764 lbs. Suzuki Boulevard, Intruder M109R Cobra Special has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: Boulevard, Intruder M109R Cobra Special
Years: 2006-07
Engine: Four stroke, 54° V-Twin
Capacity: 1786 cc / 109 cu. in
Bore x Stroke: 112 x 90.5 mm
Cooling System: Liquid cooled
Compression Ratio: 10.5:1
Lubrication: Semi-dry sump
Induction: EFI, 2 x 56mm throttle bodies
Ignition: Electronic ignition (Transistorised)
Starting: Electric
Max Power: 92 kW / 123 hp @ 6200 rpm
Max Torque: 160 Nm / 16.3 kgf-m / 118 lb-ft @ 3200 rpm
Clutch: Wet multi-plate type
Transmission: 5 Speed
Final Drive: Shaft
Primary Reduction: 1.647
Gear Ratio: 1st 2.188 (35/16) / 2nd 1.400 (28/20) / 3rd 1.038 (27/26) / 4th 0.828 (24/29) / 5th 0.686 (24/35)
Front Suspension: Inverted, 46mm stanchions
Front Wheel Travel: 130 mm / 5.1"
Rear Suspension: Single damper, preload adjustable
Rear Wheel Travel: 120 mm / 4.7"
Front Brakes: 2 x 310 mm Discs, 2 piston calipers
Rear Brakes: Single 274 mm disc, 2 piston caliper
Front Tyre: 130/70 R18
Rear Tyre: 240/40 R18
Dimensions: Length 2450 mm / 95.5 in Width 875 mm / 34.4 in
Wheelbase: 1710 mm / 67.3 in
Ground Clearance: 130 mm / 5.1 in
Seat Height: 705 mm / 27.8 in
Wet Weight: 347 kg / 764 lbs
Fuel Capacity: 19 Litres / 5.1 US gal / 4.2 Imp gal
