Suzuki AS 50 Maverick (1968-69) technical specifications

Suzuki AS 50 Maverick technical specifications

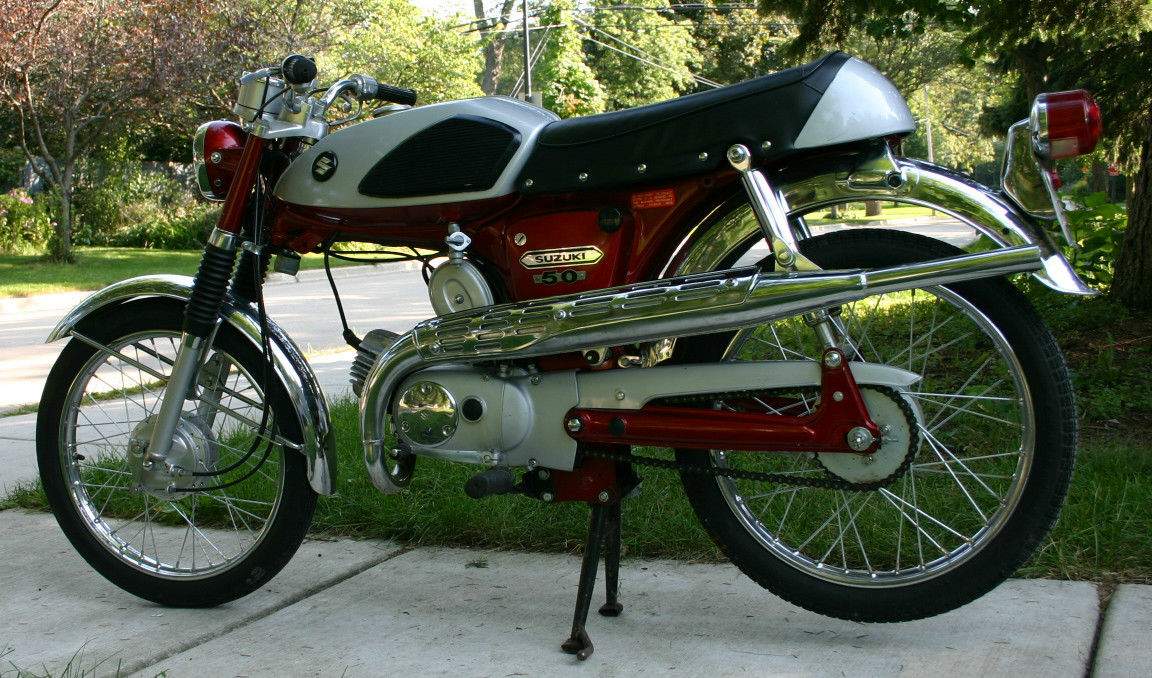

Suzuki AS 50 Maverick is produced in 1968-69. Engine is Two stroke, rotary valve, single cylinder, displacement 49 cc / 3.0 cu in , produces power 3.6 kW / 4.8 hp @ 8500 rpm and 4.13 Nm / 0.42 kgf-m / 3.05 ft-lb @ 8000 rpm. Suzuki AS 50 Maverick top speed is 95 km/h / 59 mph. Suzuki AS 50 Maverick weighs 73 kg / 165 lbs. Suzuki AS 50 Maverick has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: AS 50 Maverick
Years: 1968-69
Engine: Two stroke, rotary valve, single cylinder
Capacity: 49 cc / 3.0 cu in
Compression Ratio: 6.7:1
Cooling System: Air cooled
Bore x Stroke: 41 x 37.8 mm
Lubrication System: Suzuki Posi-Force
Induction: Carburetor VM16
Starting: Kick
Max Power: 3.6 kW / 4.8 hp @ 8500 rpm
Max Torque: 4.13 Nm / 0.42 kgf-m / 3.05 ft-lb @ 8000 rpm
Clutch: Wet multi-plate
Transmission: 5-Speed, constant mesh, return change
Final Drive: Chain
Frame: Pressed steel
Front Suspension: Telescopic fork, oil damped
Rear Suspension: Dual shock, swingarm, oil damped
Front Brakes: Drum
Rear Brakes: Drum
Front Tyre: 2.25-17 4PR
Rear Tyre: 2.25-17 4PR
Dimensions: Length: 1785 mm / 70.3" Width: 630 mm / 24.8" Height: 895 mm / 35.3"
Wheelbase: 1161 mm / 45.7"
Ground Clearance: 150 mm / 5.9"
Dry Weight: 73 kg / 165 lbs
Fuel Capacity: 6.5 L / 1.73 US gal
Fuel Reserve: 1 L / 2.1 US pt
Standing ¼ Mile: 13.1 sec
Top Speed: 95 km/h / 59 mph
