Technical specifications
|

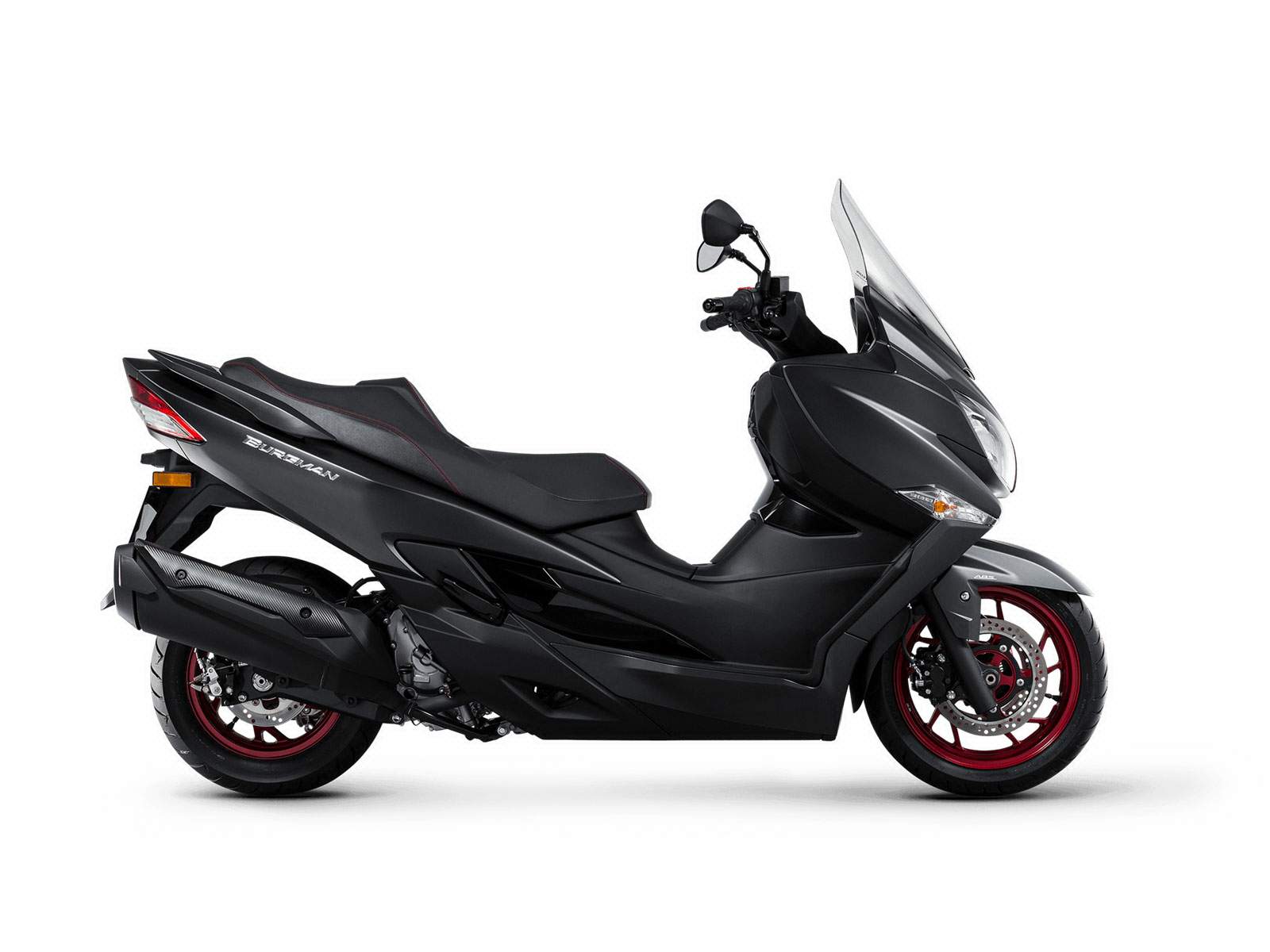

| Model: |
AN 400 |
| Years: |
2018 |
|
Engine:
|
Four stroke, single cylinder, DOHC, 4 valves
|
|
Capacity:
|
400 cc / 24.4 cu in
|
|
Bore x Stroke:
|
81 x 77.6 mm
|
|
Compression Ratio:
|
10.6: 1
|
|
Cooling System:
|
Liquid cooled
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
Suzuki Fuel Injection
|
|
Ignition:
|
Digital electronic
|
|
Starting:
|
Electric
|
|
Max Power:
|
|
|
Max Torque:
|
|
|
Transmission:
|
CVT- automatic, centrifugal clutch
|
|
Final Drive:
|
V-belt drive
|
|
Front Suspension:
|
Telescopic, coil spring, oil damped
|
|
Front Wheel Travel:
|
109 mm / 4.3"
|
|
Rear Suspension:
|
Link type, single shock, coil spring, oil damped
|
|
Rear heel Travel:
|
99 mm / 3.9"
|
|
Front Brakes:
|
2 x 260 mm discs, ABS
|
|
Rear Brakes:
|
Single 210 mm disc, ABS
|
|
Front Tyre:
|
120/70-15M/C (56S), tubeless
|
|
Rear Tyre:
|
150/70-13M/C (64S), tubeless
|
|
Dimensions:
|
Length 2235 mm / 88.0 in Width 765 mm / 30.1 in
|
|
Wheelbase:
|
1580 mm / 53.1 in
|
|
Ground Clearance:
|
125 mm / 4.9"
|
|
Seat Height:
|
755 mm / 29.7 in
|
|
Wet Weight:
|
215 kg / 474 lbs
|
|
Fuel Capacity:
|
13.5 Litres / 3.6 US gal
|
