Technical specifications
|
| Model: |

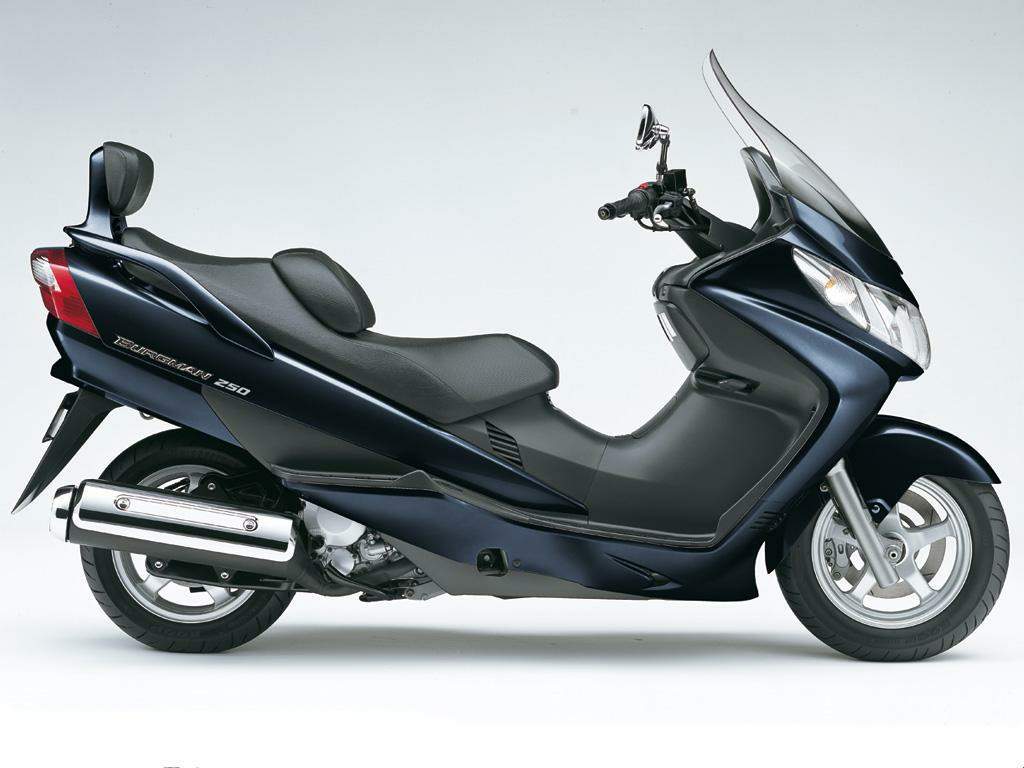

AN 250 Burgman |
| Years: |
1998-05 |
|
Engine:
|
Four stroke, single cylinder, SOHC, 4 valve
|
|
Capacity:
|
249 cc / 15.2 cu in
|
|
Bore x Stroke:
|
73 x 59.6 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Induction:
|
Fuel injection
|
|
Ignition:
|
Electronic, transistorised
|
|
Starting:
|
Electric
|
|
Max Power:
|
17 kW / 23 hp @ 7000 rpm
|
|
Max Torque:
|
24.5 Nm / 2.5 kgf-m / 18.1 ft-lb @ 6000 rpm
|
|
Transmission:
|
CVT
|
|
Final Drive:
|
Belt
|
|
Front Suspension:
|
Telescopic, coil spring, oil damped
|
|
Rear Suspension:
|
Swingarm type, coil spring, oil damped
|
|
Front Brakes:
|
Single 220mm disc, 3 piston caliper
|
|
Rear Brakes:
|
Single 220mm disc,1 piston caliper
|
|
Front Tyre:
|
110/90-13
|
|
Rear Tyre:
|
130/70-13
|
|
Dimensions:
|
Length: 2260 mm / 89.0" Width: 765 mm / 30.1" Height: 1360 mm / 53.5"
|
|
Wheelbase:
|
1590 mm / 62.6"
|
|
Seat Height:
|
695 mm / 27.4"
|
|
Dry Weight:
|
130 kg / 287 lbs
|
|
Wet Weight:
|
158 kg / 348 lbs
|
|
Fuel Capacity:
|
13 L / 3.4 US gal
|
|
Average Consumption:
|
3.6 L/100 km / 27.8 km/l / 65 US mpg
|
|
Top Speed:
|
127 km/h / 79 mph
|
