Suzuki AN 200 Burgman (2013-15) technical specifications

Suzuki AN 200 Burgman technical specifications

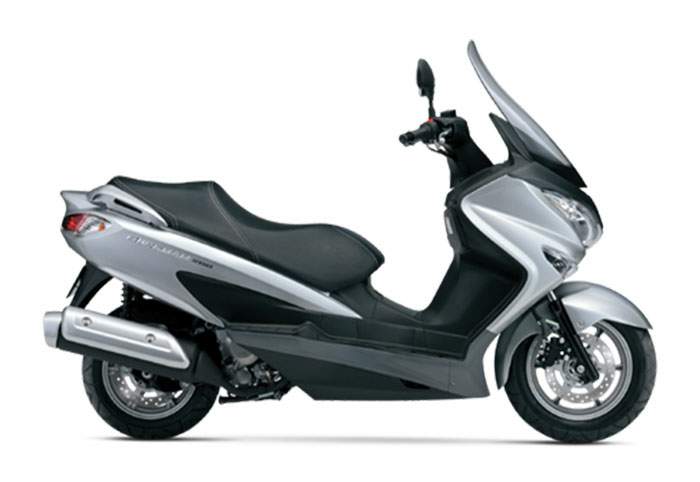

Suzuki AN 200 Burgman is produced in 2013-15. Engine is Four stroke, single cylinder, SOHC, 4 valve, displacement 200 cc / 12.2 cu in , produces power 13.5 kW / 18.35 hp @ 8000 rpm and 17 Nm / 1.73 kgf-m / 12.5 ft-lb @ 6000 rpm. Suzuki AN 200 Burgman weighs 149 kg / 328 lbs. Suzuki AN 200 Burgman has 1 photos.

Technical specifications

+ Add to 'Compare list'
Model: AN 200 Burgman
Years: 2013-15
Engine: Four stroke, single cylinder, SOHC, 4 valve
Capacity: 200 cc / 12.2 cu in
Bore x Stroke: 69 x 53.4 mm
Compression Ratio: 11.0:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Induction: Electronic injection
Ignition: Electronic, transistorised
Starting: Electric
Max Power: 13.5 kW / 18.35 hp @ 8000 rpm
Max Torque: 17 Nm / 1.73 kgf-m / 12.5 ft-lb @ 6000 rpm
Clutch: Dry shoe, automatic, centrifugal type
Transmission: Automatic CVT
Final Drive: V-belt Drive
Front Suspension: Telescopic, coil spring, oil damped
Rear Suspension: Swingarm type, coil spring, oil damped
Front Brakes: Single 220mm disc, 3 piston caliper
Rear Brakes: Single 220mm disc,1 piston caliper
Front Tyre: 110/90-13M/C 56P, tubeless
Rear Tyre: 130/70-12 62P, tubeless
Dimensions: Length 2055 mm / 80.9 in Width 740 mm / 29.1 in
Wheelbase: 1460 mm / 57.7 in
Ground Clearance: 130 mm / 5.1 in
Seat Height: 735 mm / 28.9 in
Dry Weight: 149 kg / 328 lbs
Wet Weight: 160 kg / 353 lbs
Fuel Capacity: 11 Litres / 2.9 US gal
