Technical specifications
|
| Model: |

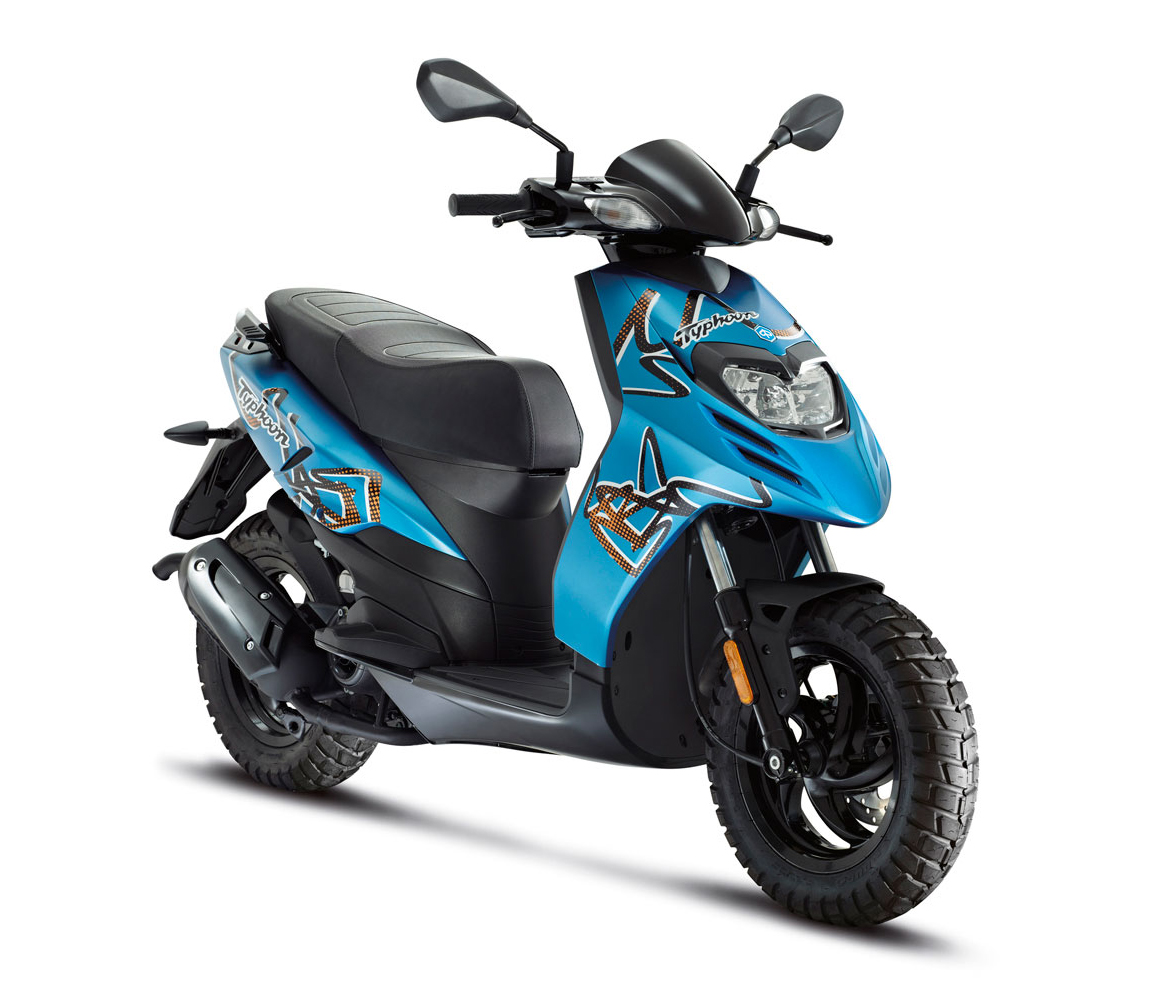

Typhoon 50 |
| Years: |
2012-14 |
|
Engine:
|
Four stroke, single cylinder, SOHC, 4 valve
|
|
Capacity:
|
49 cc / 3.0 cub in.
|
|
Bore x Stroke:
|
39 x 41.4 mm
|
|
Cooling System:
|
Air cooled
|
|
Lubrication:
|
Wet sump
|
|
Fuel System:
|
Keihin NCV 20 carburetor
|
|
Ignition:
|
Electronic
|
|
Starting:
|
Electric / kick
|
|
Max Power:
|
3.4 kW / 4.6 hp @ 9500 rpm
|
|
Max Torque:
|
3.8 Nm / 0.39 kgf-m / 2.8 lb-ft @ 8000 rpm
|
|
Transmission:
|
CVT, twist and go
|
|
Clutch:
|
Automatic centrifugal dry clutch
|
|
Frame:
|
Single cradle, high strength steel
|
|
Front Suspension:
|
Hydraulic telescopic fork
|
|
Front Wheel Travel:
|
76 mm / 3.0 in.
|
|
Rear Suspension:
|
Hydraulic shock absorber
|
|
Rear Wheel Travel:
|
86 mm / 3.4 in.
|
|
Front Brakes:
|
220 mm disc with dual piston floating caliper
|
|
Rear Brakes:
|
140 mm drum
|
|
Front Tyre:
|
120/70 - 14 in.
|
|
Rear Tyre:
|
120/70 - 14 in.
|
|
Dimensions:
|
Length: 1938 mm / 76.3 in. Width: 719mm / 28.3 in.
|
|
Wheelbase:
|
1349 mm / 53.1 in.
|
|
Seat Height:
|
770 mm / 30.3 in.
|
|
Dry Weight:
|
110 kg / 242 lbs
|
|
Fuel Capacity:
|
6.7 L / 1.8 US gal
|
|
Consumption average:
|
1.6 L/100 km / 61 km/L / 144 US mpg
|
|
Top Speed:
|
64 km/h / 40 mph
|
|
Colours:
|
Cult white, Graphite black
|
|
Review:
|
Motorscooterguide
|
