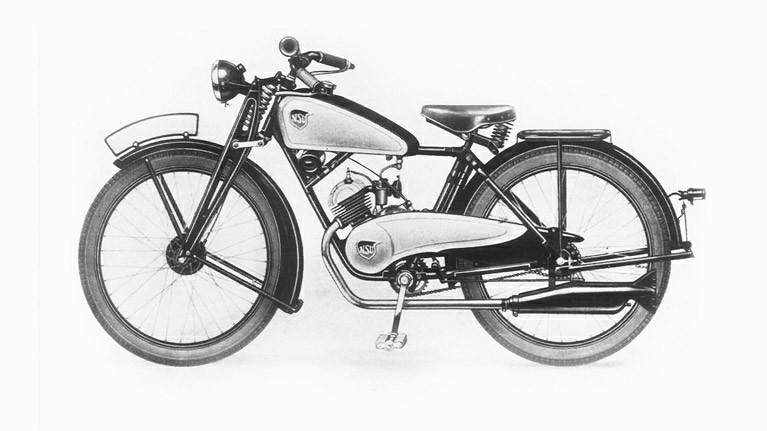

NSU Quick (1939) technical specifications

NSU Quick is produced in 1939. Engine is Single cylinder, 2 stroke, displacement 49 cc / 3 cub in , produces power 2.2 kW / 3 hp @ 4700 rpm. NSU Quick top speed is 40 km/h / 25 mph. NSU Quick has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Quick
Years:	1939
Production:	1 087 792
Engine:	Single cylinder, 2 stroke
Capacity:	49 cc / 3 cub in
Cooling:	Air/Oil cooled
Lubrication:	Dry sump
Starting:	Pedal
Exhaust System:	Single, steel and chrome
Max Power:	2.2 kW / 3 hp @ 4700 rpm
Compression Ratio:	5.5:1
Transmission:	2-speed, twistgrip operated
Final Drive:	Chain
Frame:	Pressed steel single spar
Front suspension:	Steel forks, leading link suspension
Rear suspension:	None
Wheels:	26 x 2.00 in front and rear
Front Brake:	Drum
Rear Brake:	Drum
Top Speed:	40 km/h / 25 mph
