NSU Lux/Superlux (1951-54) technical specifications

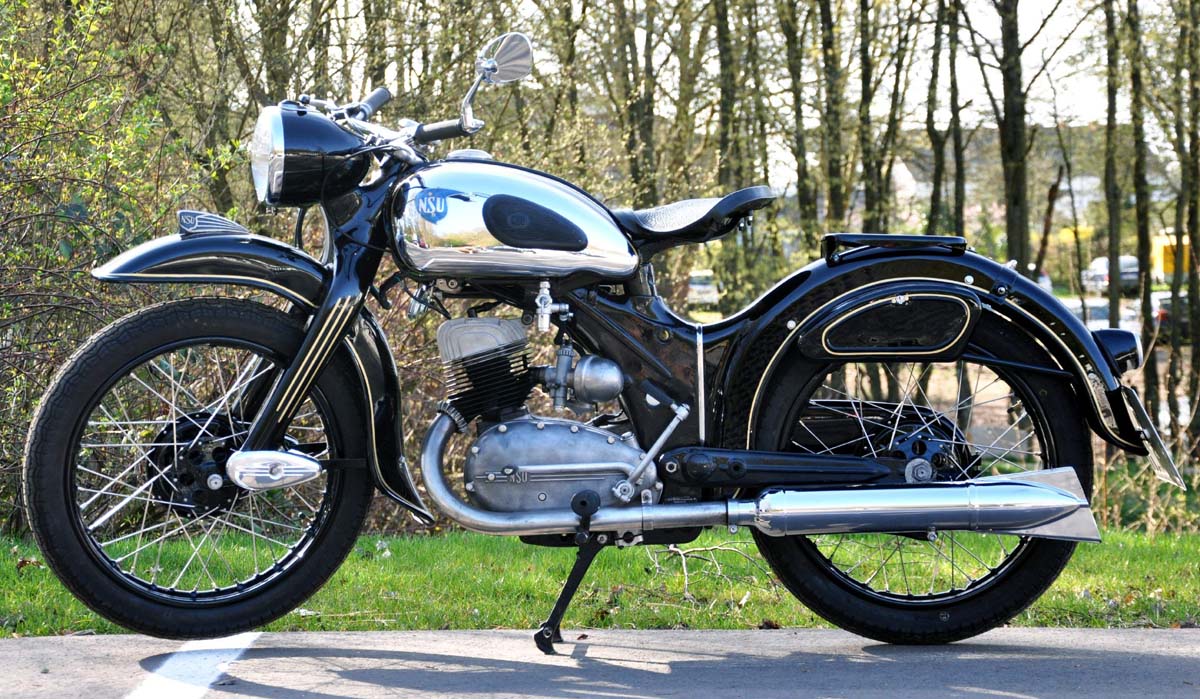

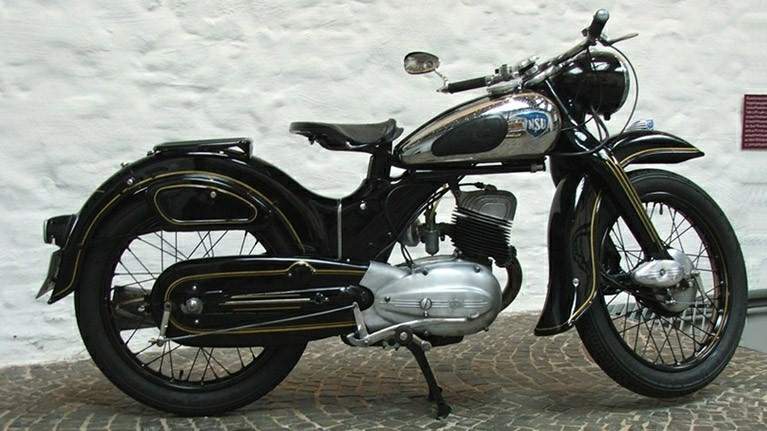

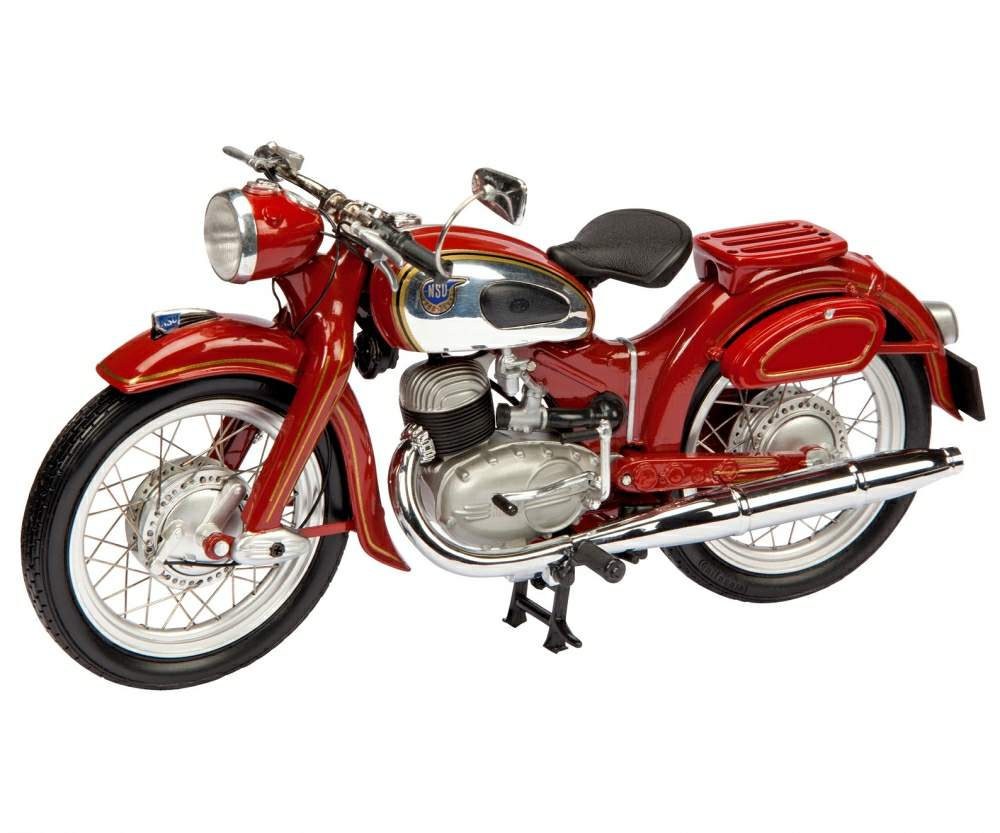

NSU Lux/Superlux is produced in 1951-54. Engine is Single cylinder, 2 stroke with flat shank and removable light alloy cylinder head, displacement 198 cc / 12.1 cub in , produces power 6.6 kW / 9 hp @ 5250 rpm (Superlux 8.1 kW / 11 hp @ 5200 rpm). NSU Lux/Superlux top speed is 95 km/h / 59 mph (Superlux 102 km/h / 63 mph). NSU Lux/Superlux weighs 135 kg / 298 lbs (Superlux 152 kg / 335 lbs). NSU Lux/Superlux has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Lux/Superlux |
| Years: | 1951-54 |
| Production: | 62 850 |
| Engine: | Single cylinder, 2 stroke with flat shank and removable light alloy cylinder head |
| Capacity: | 198 cc / 12.1 cub in |
| Bore x Stroke: | 62 x 66 mm |
| Cooling: | Air/Oil cooled |
| Clutch: | Multi disc |
| Starting: | Kick start |
| Ignition: | Light battery igniter |
| Spark plug: | W225 T11 (Superlux W240 T1) |
| Carburetor: | BING AJ 22/02/16 (Superlux 24/02/34) |
| Exhaust System: | Single steel exhaust |
| Max Power: | 6.6 kW / 9 hp @ 5250 rpm (Superlux 8.1 kW / 11 hp @ 5200 rpm) |
| Compression: | 1:6 |
| Transmission: | 4 speed |
| Final Drive: | Chain |
| Frame: | Steel central |
| Dimensions: | Length 2030 mm 80 in |
| Wheelbase: | 1304 mm / 51 in |
| Wheels: | 3.00 x 19 |
| Rims: | 2.15 B x 19 |
| Dry Weight: | 135 kg / 298 lbs (Superlux 152 kg / 335 lbs) |
| Tank Capacity: | 11.5 l / 3 US gal |
| Oil/Fuel mixture: | 1:25 |
| Average Consumption: | 2.5 l/100 km / 40 km/l / 94 US mpg |
| Top Speed: | 95 km/h / 59 mph (Superlux 102 km/h / 63 mph) |
