Norton Commando 961 Café Racer MKII (2018-19) technical specifications

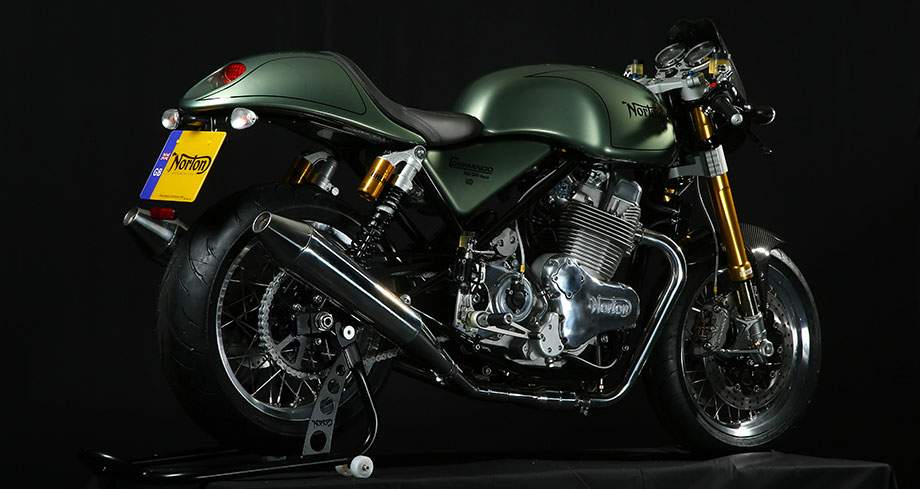

Norton Commando 961 Café Racer MKII technical specifications

Norton Commando 961 Café Racer MKII is produced in 2018-19. Engine is Four stroke, parallel twin with push-rod valve actuation, 3 bearing crank balancer shaft, 2 valves per cylinder, displacement 961 cc / 58.6 cu in , produces power 59.7 kW / 80 hp @ 6500 rpm and 90 Nm / 9.2 kgf-m / 65 ft-lb @ 5200 rpm. Norton Commando 961 Café Racer MKII weighs 188 kg / 415 lbs. Norton Commando 961 Café Racer MKII has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Commando 961 Café Racer MKII
Years: 2018-19
Engine: Four stroke, parallel twin with push-rod valve actuation, 3 bearing crank balancer shaft, 2 valves per cylinder
Capacity: 961 cc / 58.6 cu in
Bore x Stroke: 88 x 79 mm
Compression Ratio: 10.1:1
Cooling System: Air cooled
Lubrication: Dry sump
Exhaust: Café Sports exhaust, Euro 3 compliant
Induction: Fuel injected
Ignition: Electronic
Starting: Electric
Max Power: 59.7 kW / 80 hp @ 6500 rpm
Max Torque: 90 Nm / 9.2 kgf-m / 65 ft-lb @ 5200 rpm
Clutch: Wet multi-plate with hydraulic lifter
Transmission: 5 Speed, constant mesh
Final Drive: Chain, 525 "O" ring
Frame: Tubular steel with integral oil tank
Front Suspension: Ø43 mm Öhlins USD, adjustable preload, compression, and rebound damping.
Front Wheel Travel: 115 mm / 4.53 in
Rear Suspension: Öhlins reservoir-style twin shocks, adjustable ride height, preload, compression, and rebound damping.
Rear Wheel Travel: 100 mm / 3.94 in
Front Brakes: Brembo 2 x Ø320 mm fully-floating high carbon stainless steel discs, 4 piston Brembo radially mounted calipers. Brembo front brake master cylinder with integral reservoir
Rear Brakes: Brembo single Ø220 mm disc, 2 piston caliper. Brembo rear brake master cylinder
Front Wheel: 3.50 x 17, 36 spoke
Rear Wheel: 5.50 x 17, 40 spoke
Front Tyre: 120/70 -17
Rear Tyre: 180/55 -17
Rake: 24.5°
Trail: 99 mm / 3.9 in
Wheelbase: 1420 mm / 55.9 in
Seat Height: 813 mm / 32 in
Dry Weight: 188 kg / 415 lbs
Fuel Capacity: 17 Litres / 4.5 US gal
