MV Agusta F4R (2015) technical specifications

MV Agusta F4R technical specifications

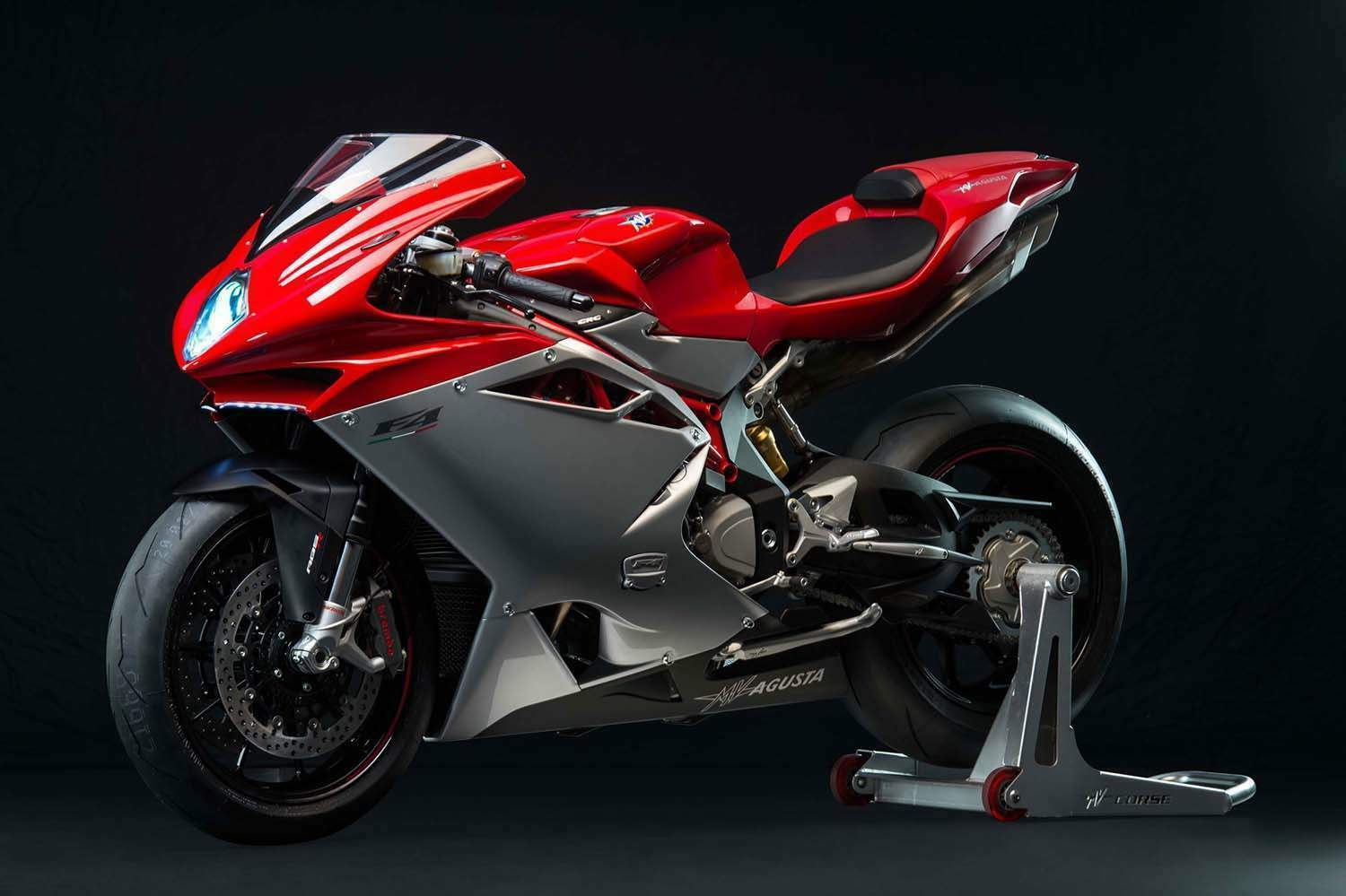

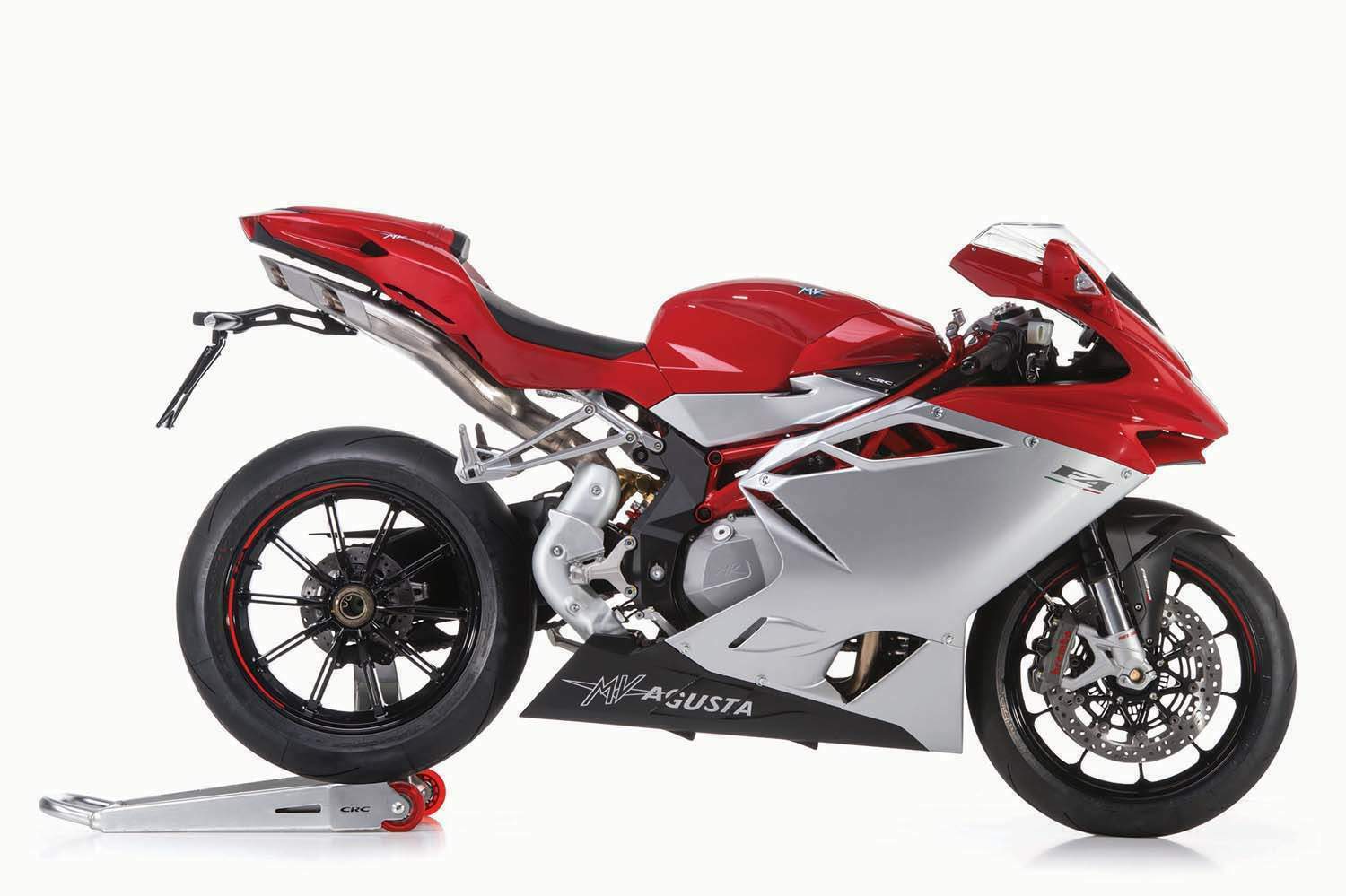

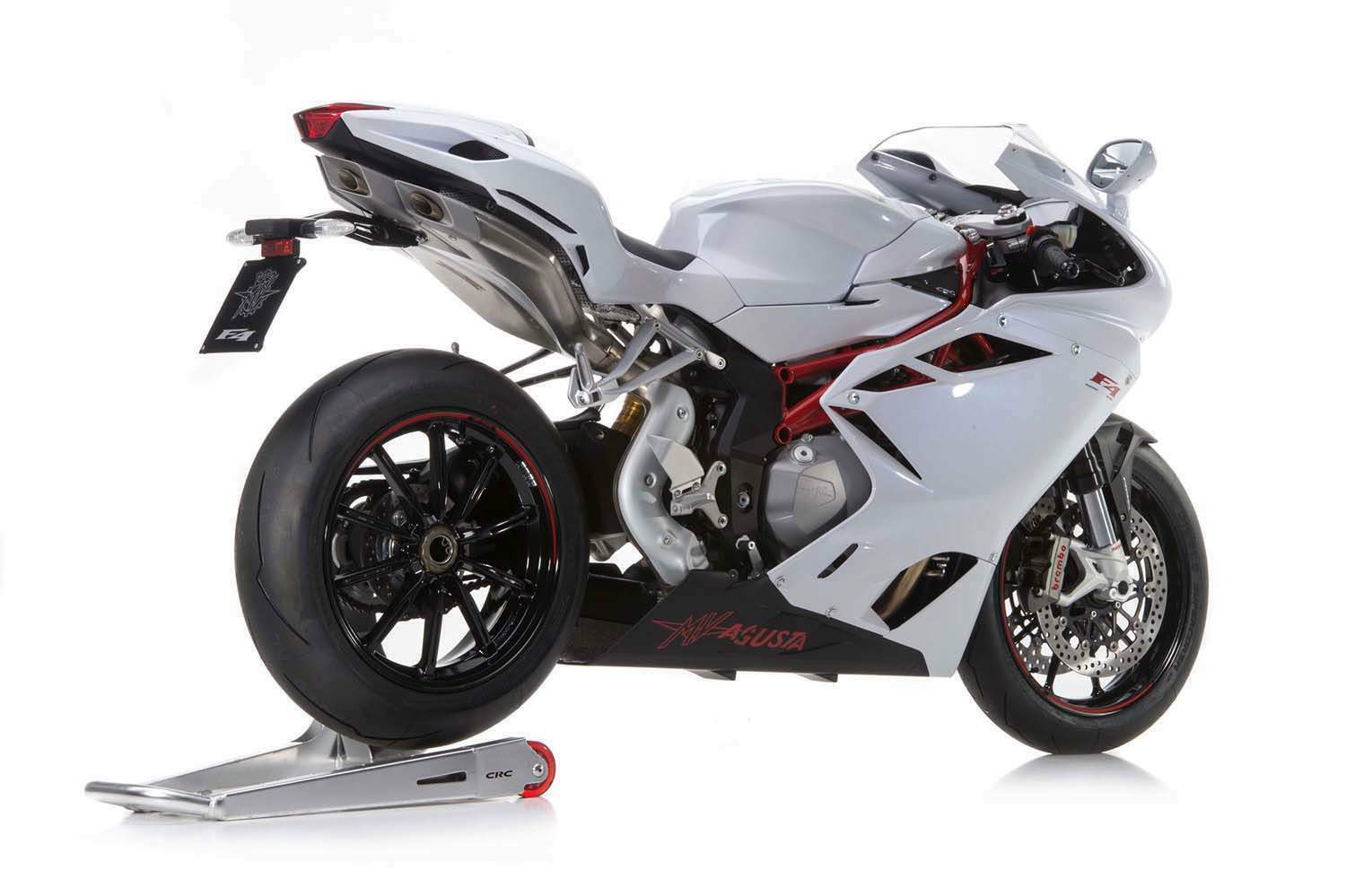

MV Agusta F4R is produced in 2015. Engine is Four stroke, transverse four cylinder. DOHC, 4 radial valves per cylinder, displacement 998 cc / 60.9 cu-in , produces power 143.5 kW / 195 hp @ 13400 rpm and 110.8 Nm / 11.3 kgm @ 9600 rpm. MV Agusta F4R has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: F4R
Years: 2015
Engine: Four stroke, transverse four cylinder. DOHC, 4 radial valves per cylinder
Capacity: 998 cc / 60.9 cu-in
Bore x Stroke: 76 x 55 mm
Compression Ratio: 13.4:1
Cooling System: Liquid cooled,
Lubrication: Wet sump
Engine management system: Integrated ignition - injection system MVICS (Motor & Vehicle Integrated Control System) with eight injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire, Torque control with four maps, Traction Control with eight levels of intervention with lean angle sensor, EAS
Electronically: Assisted Shift - TSS Torque Shift System employing variable length intake runners
Voltage: 12 V
Alternator: 350 W at 5000 r.p.m.
Battery: 12 V - 8.6 Ah
Starting: electric
Max Power: 143.5 kW / 195 hp @ 13400 rpm
Max Torque: 110.8 Nm / 11.3 kgm @ 9600 rpm
Clutch: Wet, multi-disc with back torque limiting device
Transmission: Cassette styl 6 Speed
Final Drive: Chain
Primary drive: 48/82
Gear Ratio: 1st 14/37 2nd 16/33 3rd 18/31 4th 20/30 5th 22/29 6th 21/25
Final drive ratio: 15/41
Frame: Type CrMo Steel tubular trellis Rear swing arm pivot plates material Aluminium alloy
Front Suspension: 50mmMarzocchi “UPSIDE - DOWN” telescopic hydraulic fork with adjustable rebound-compression damping and external spring preload
Front Wheel Travel: 120 mm / 4.72 in
Rear Suspension: Progressive Öhlins TTX, single shock absorber with rebound and compression damping and spring preload adjustment Single sided swing arm material Aluminium alloy
Rear Wheel Ttavel: 120 mm / 4.72 in
Front Brakes: 2x floating 320mm discs and aluminium flange, Front brake caliper Brembo radial-type, single-piece with 4 pistons Ø 34 mm (Ø 1.34 in.)
Rear Brakes: Single 210mm disc Nissin with 4 pistons caliper
Rim Front: Aluminium alloy 3,50 in x 17 in
Rim Rear: Aluminium alloy 6,00 in x 17 in
Front Tyre: 120/70 ZR17
Rear Tyre: 200/55 ZR17
Trail: 100,4 mm / 3.93 in.
Dimensions: Length 2115 mm / 83.30 in Width 750 mm / 29.51 in
Wheelbase: 1430 mm / 56.27 in
Seat Height: 830 mm / 2.68 in
Ground Clearance: 115 mm / 4.7 in
Dry Weigh: 191 Kg / 421.1 lb
Fuel Capacity: 17 Litres / 4.49. gal.
