MV Agusta F4R (2012) technical specifications

MV Agusta F4R technical specifications

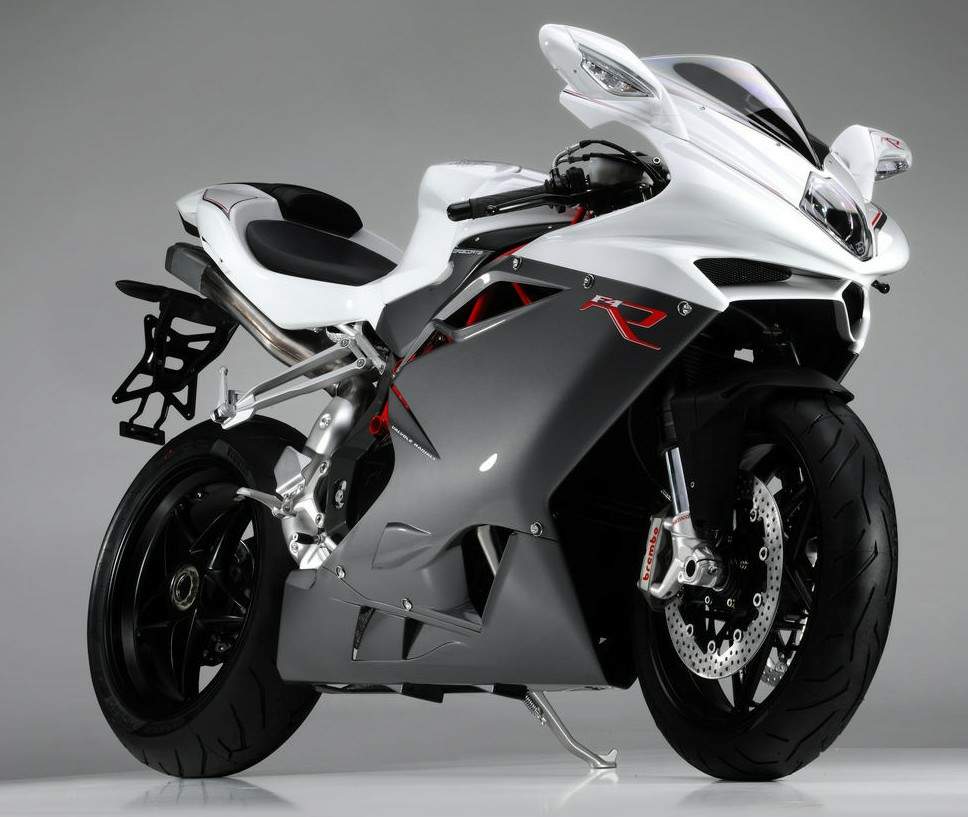

MV Agusta F4R is produced in 2012. Engine is Four stroke, transverse four cylinder. DOHC, radial valve, 4 radial valves per cylinder, displacement 998 cc / 60.9 cu-in , produces power 143.5 kW / 195 hp @ 13000 rpm and 112 Nm / 11.4 kg-m @ 9100 rpm. MV Agusta F4R weighs 192 Kg / 423 lb. MV Agusta F4R has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: F4R
Years: 2012
Engine: Four stroke, transverse four cylinder. DOHC, radial valve, 4 radial valves per cylinder
Capacity: 998 cc / 60.9 cu-in
Bore x Stroke: 78 x 50.9 mm
Compression Ratio: 13.4:1
Cooling System: Cooling with separated liquid and oil radiators
Engine Management: Magneti Marelli IAW 7BM ignition - injection integrated system with Mikuni throttle body; Induction discharge electronic ignition; Sequential timed "Multipoint" electronic injection; Variable height intake ducts with Torque Shift System (TSS)
Alternator: 350 W at 5000 r.p.m.
Battery: 12 V - 8.6 Ah
Starting: Electric
Max Power: 143.5 kW / 195 hp @ 13000 rpm
Max Torque: 112 Nm / 11.4 kg-m @ 9100 rpm
Clutch: Wet, multi – disc with mechanical anti-surging device and BREMBO radial master cylinder
Transmission: 6 Speed
Final Drive: Chain
Primary Drive: 48/82F
Final Velocity Ratio: 15x41
Gear Ratio: 1st Speed* 14/37 134.1 km/h 83.3 mph @ 13700 rpm 2nd Speed* 16/33 171.8 km/h 106.7 mph @ 13700 rpm 3rd Speed* 18/31 205.8 km/h 127.8 mph @ 13700 rpm 4th Speed* 20/30 236.3 km/h 146.7 mph @ 13700 rpm 5th Speed* 22/29 268.9 km/h 167.0 mph @ 13700 rpm 6th Speed* 21/25 297.6 km/h 184.8 mph @ 13700 rpm
Frame: CrMo Steel tubular trellis (TIG welded) Rear swing arm pivot plates: material Aluminium alloy - Adjustable swingarm pivot height
Front Suspension: 50 mm"UPSIDE - DOWN" telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Front Wheel Travel: 120 mm / 4.3 in
Rear Suspension: Progressive, single shock absorber with rebound and compression (High speed/ Low Speed) damping and spring preload adjustment Single sided swing arm: material Aluminium alloy
Rear Wheel Travel: 120 mm / 4.3 in
Front Brakes: 2x 320mm discs 4 piston calipers
Rear Brakes: Single 210mm disc 4 piston caliper
Rim Front: Forged aluminium alloy 3.50 " x 17 "
Rim Rear: Forged aluminium alloy 6.00 " x 17 "
Front Tyre: 120/70 -ZR 17
Rear Tyre: 190/55 -ZR 17
Trail: 100,4 mm / 3.93 in
Dimensions: Length 2100 mm / 82.63 in. Width 750 mm / 29.51 in
Wheelbase: 1430 mm / 56.27 in
Seat Height: 830 mm / 32.66 in
Ground Clearance: 115 mm / 4.52 in.
Dry Weight: 192 Kg / 423 lb
Fuel Capacity: 17 Litres / 4.4 US gal
