MV Agusta Dragster 800RR SCS (2020) technical specifications

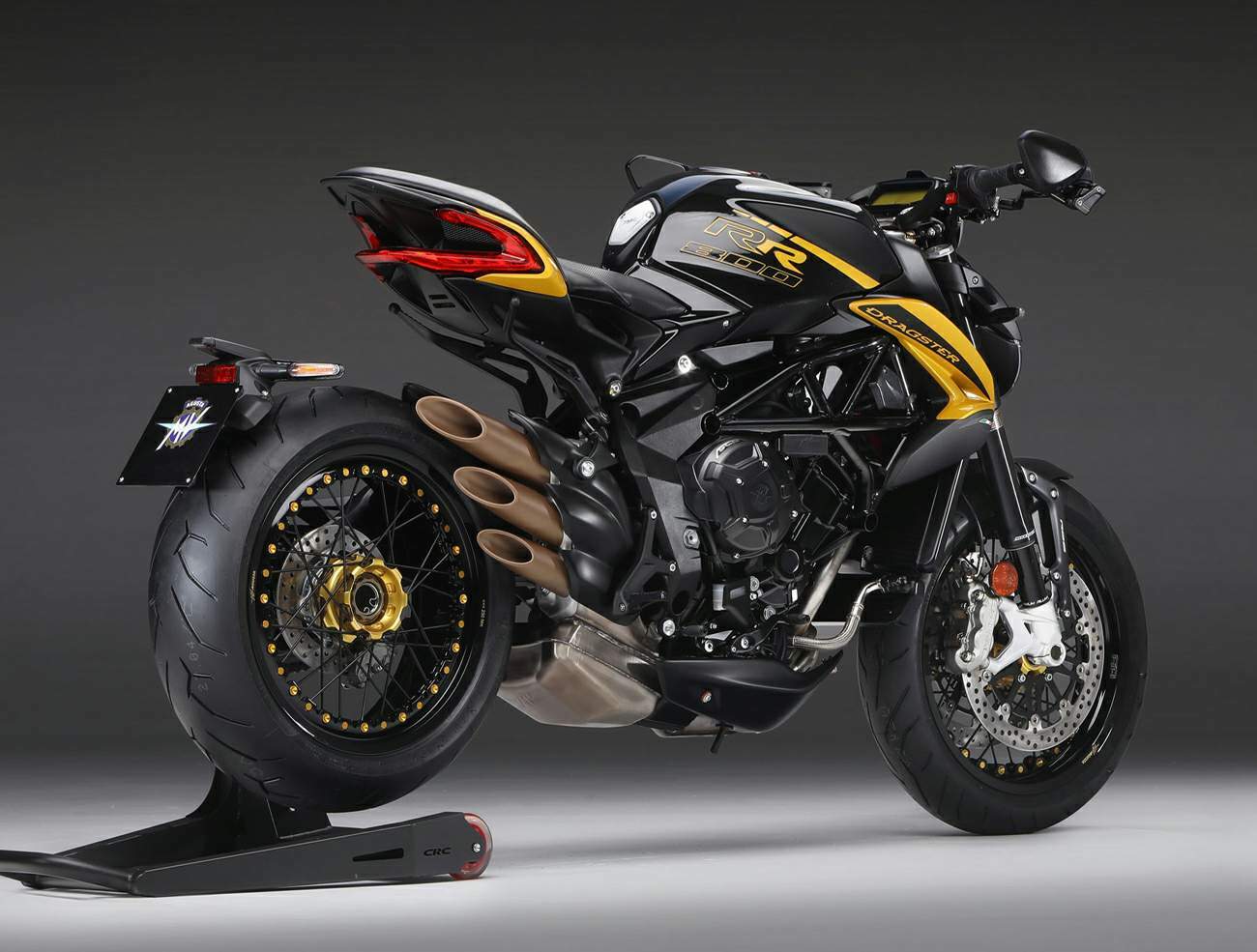

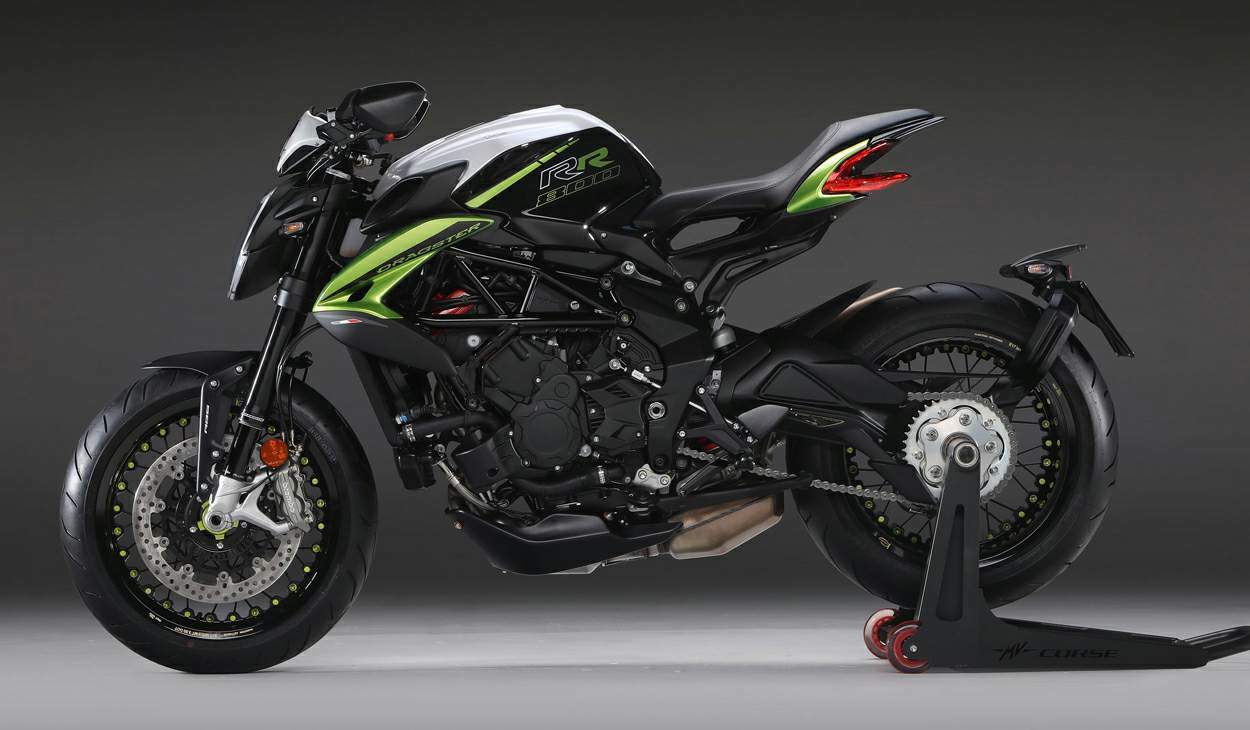

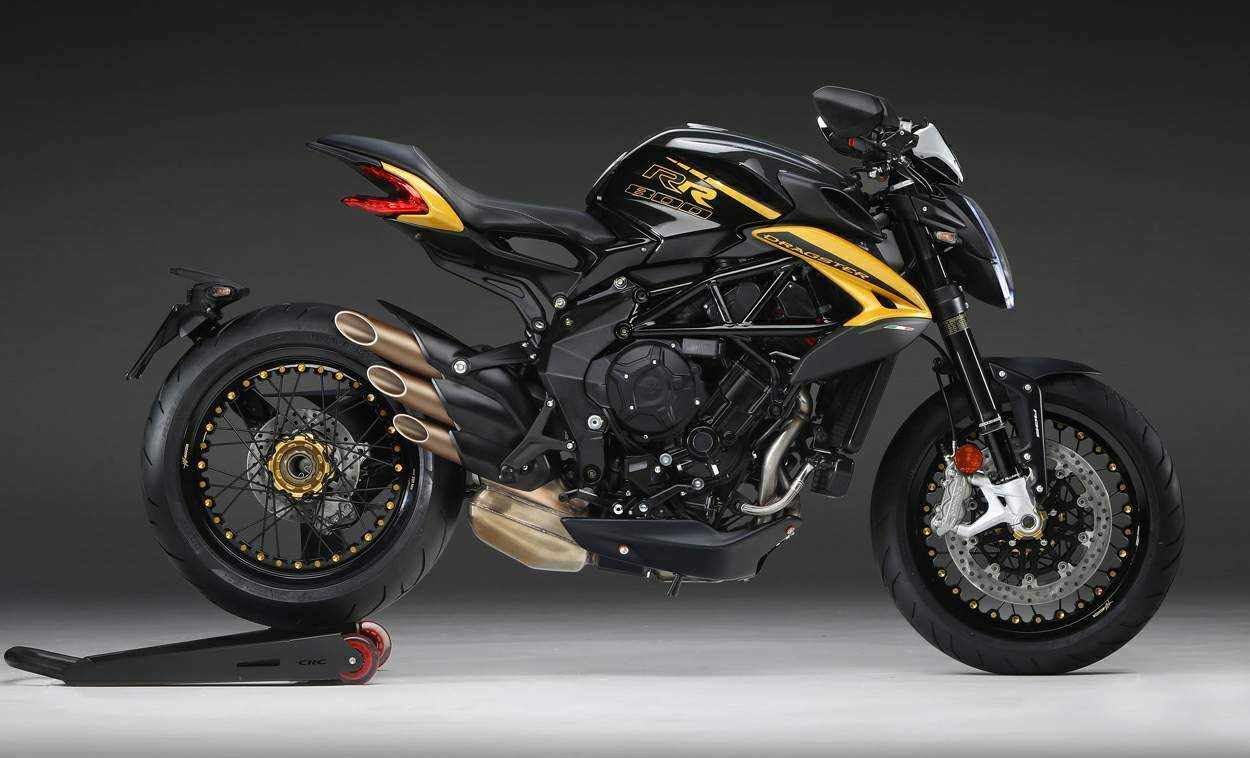

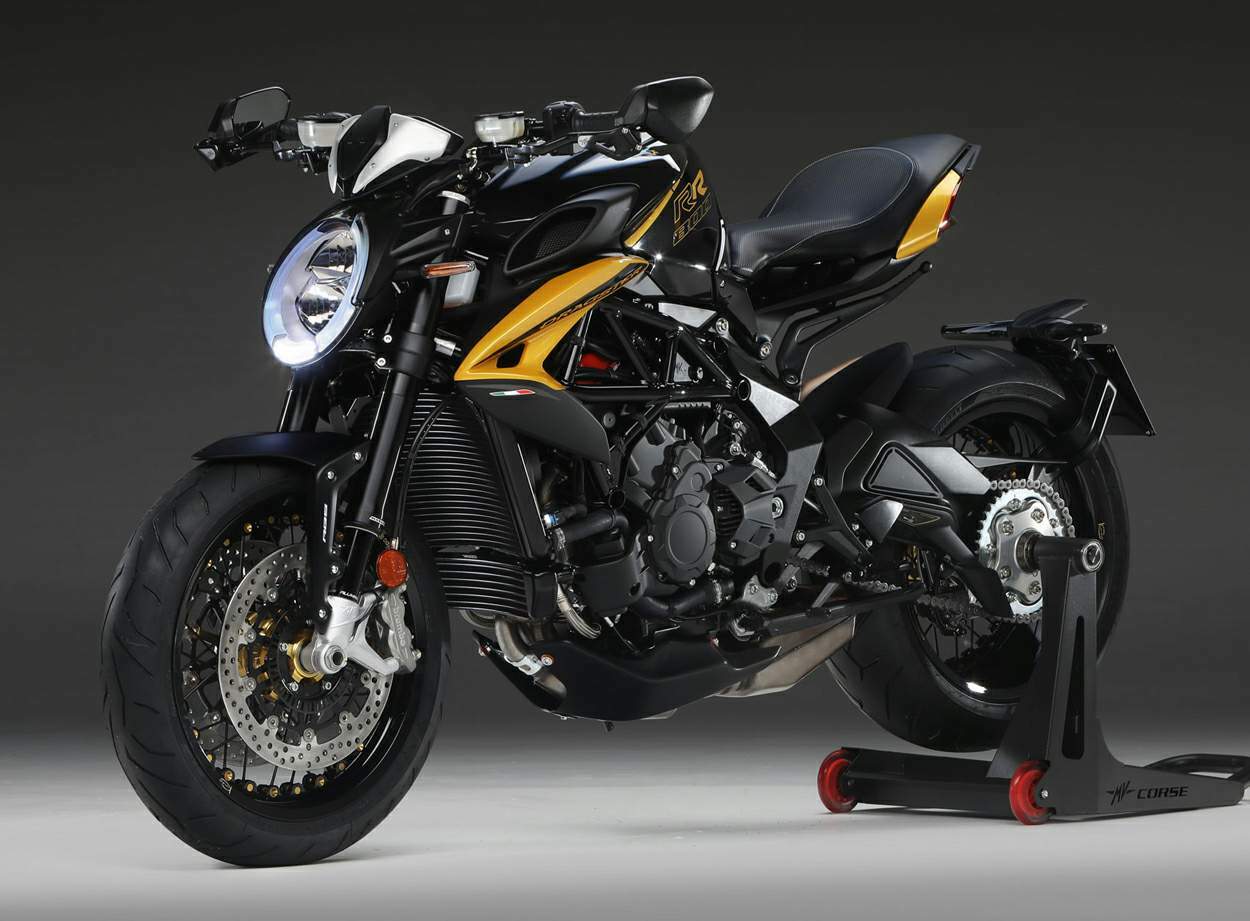

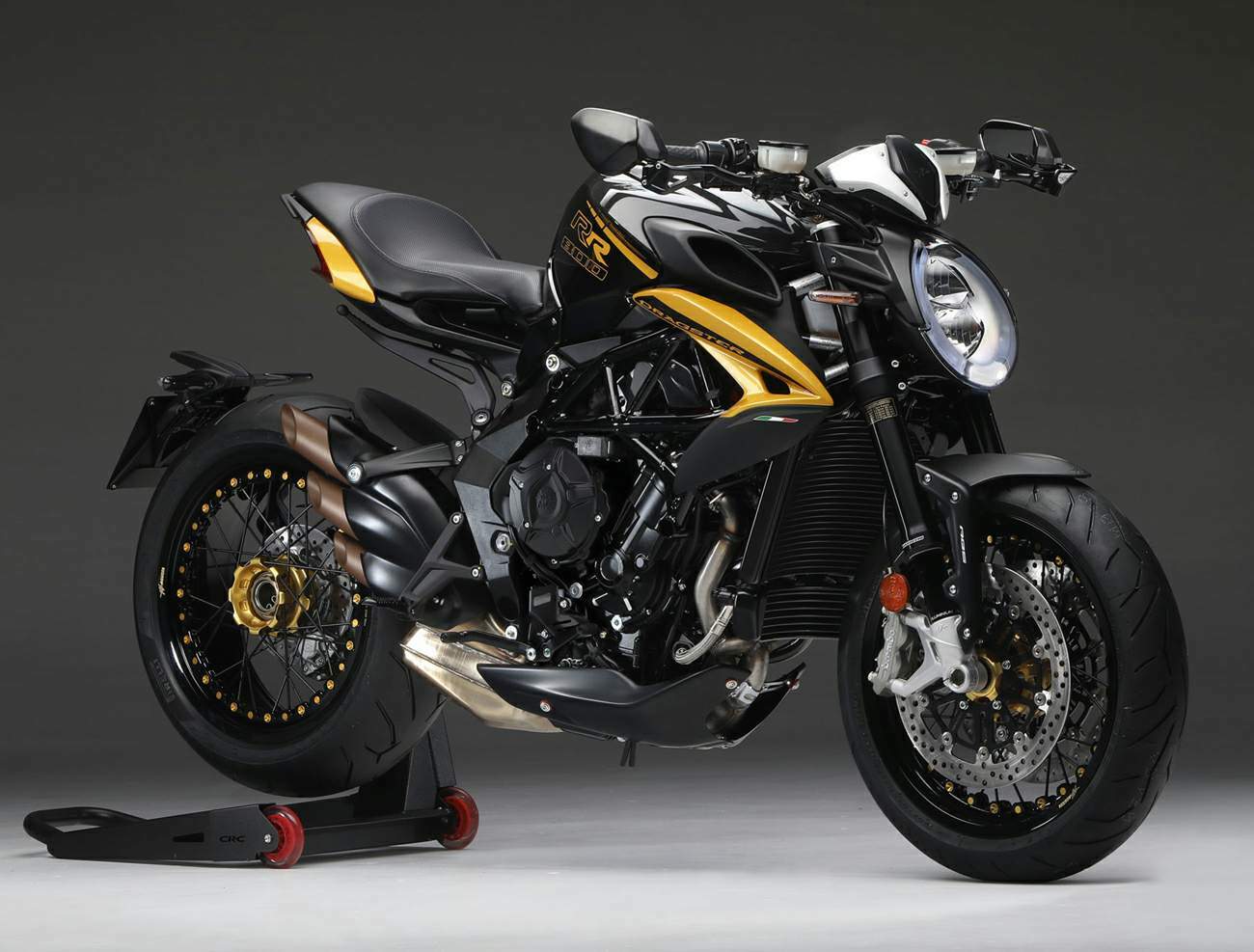

MV Agusta Dragster 800RR SCS is produced in 2020. Engine is Four stroke, transverse three cylinder, DOHC with mechanical chain tensioner, 4 valve per cylinder, displacement 798 cc / 48.68 cu-in , produces power 103 kW / 140 hp @ 12300 rpm and 87 Nm / 64.1 lb-ft @ 10100 rpm. MV Agusta Dragster 800RR SCS weighs 168 Kg / 370.38 lbs. MV Agusta Dragster 800RR SCS has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Dragster 800RR SCS
Years:	2020
Engine:	Four stroke, transverse three cylinder, DOHC with mechanical chain tensioner, 4 valve per cylinder
Capacity:	798 cc / 48.68 cu-in
Bore x Stroke:	79 x 54.3 mm
Cooling System:	Cooling with separated liquid and oil radiators
Compression Ratio:	13.3:1
Engine management system:	Integrated ignition – injection system MVICS 2.0 (Motor & Vehicle Integrated Control System) with six injectors. Engine control unit Eldor EM2.0, throttle body full ride by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire. Torque control with four maps, Traction Control with eight levels of intervention with lean angle sensor. Electronic quick-shift MV EAS 2.1 (Electronically Assisted Shift up & down)
Emission:	Euro 4
Ignition:	Multipoint electronic injection
Starting:	Electric
Max Power:	103 kW / 140 hp @ 12300 rpm
Max Torque:	87 Nm / 64.1 lb-ft @ 10100 rpm
Clutch:	S.C.S. 2.0 (Smart Clutch System) Radius CX automatic clutch with hydraulic clutch actuation, wet multi-disc
Transmission:	Cassette style 6 speed constant mesh
Final Drive:	Chain
Primary Drive:	22/41
Gear Ratio:	1st 13/37 / 2nd 16/34 / 3rd 18/32 / 4th 19/30 / 5th 21/30 / 6th 22/29
Final Drive Ratio:	6/41
Frame:	ALS Steel tubular trellis, aluminium alloy rear swing arm pivot plates
Front Suspension:	43mm Type Marzocchi USD telescopic hydraulic fork in DLC treated aluminium, with anodized fork legs and having rebound-compression damping and spring preload external and separate adjustment
Front Wheel Travel:	125 mm / 4.92 in
Rear Suspension:	Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment, Aluminium alloy single sided swing arm
Rear Wheel Travel:	125 mm / 4.92 in
Front Brakes:	2x 320mm floating discs, 4 piston Brembo calipers
Rear Brakes:	Single 220mm disc 2 piston Brembo caliper
ABS:	Bosh 9 Plus with rear wheel lift-up mitigation (RLM)
Rim Front:	Material/size With aluminium alloy spokes 3.50 x 17 in
Rim Rear:	Material/size With aluminium alloy spokes 6.00 x 17 in
Front Tyre:	120/70- ZR 17 M/C (58 W)
Rear Tyre:	200/50- ZR 17 M/C (75 W)
Trail:	103.5 mm / 4.07 in
Dimensions:	Length: 2035 mm / 80.1 in Width: 935 mm / 36.8 in
Wheelbase:	1400 mm / 55.1 in
Seat Height:	845 mm / 33.3 in
Ground Clarence:	135 mm / 5.3 in
Dry Weight:	168 Kg / 370.38 lbs
Fuel Capacity:	16.5 Litres / US 4.36 gal
Reserve:	5 Litres / 1.3 US gal
