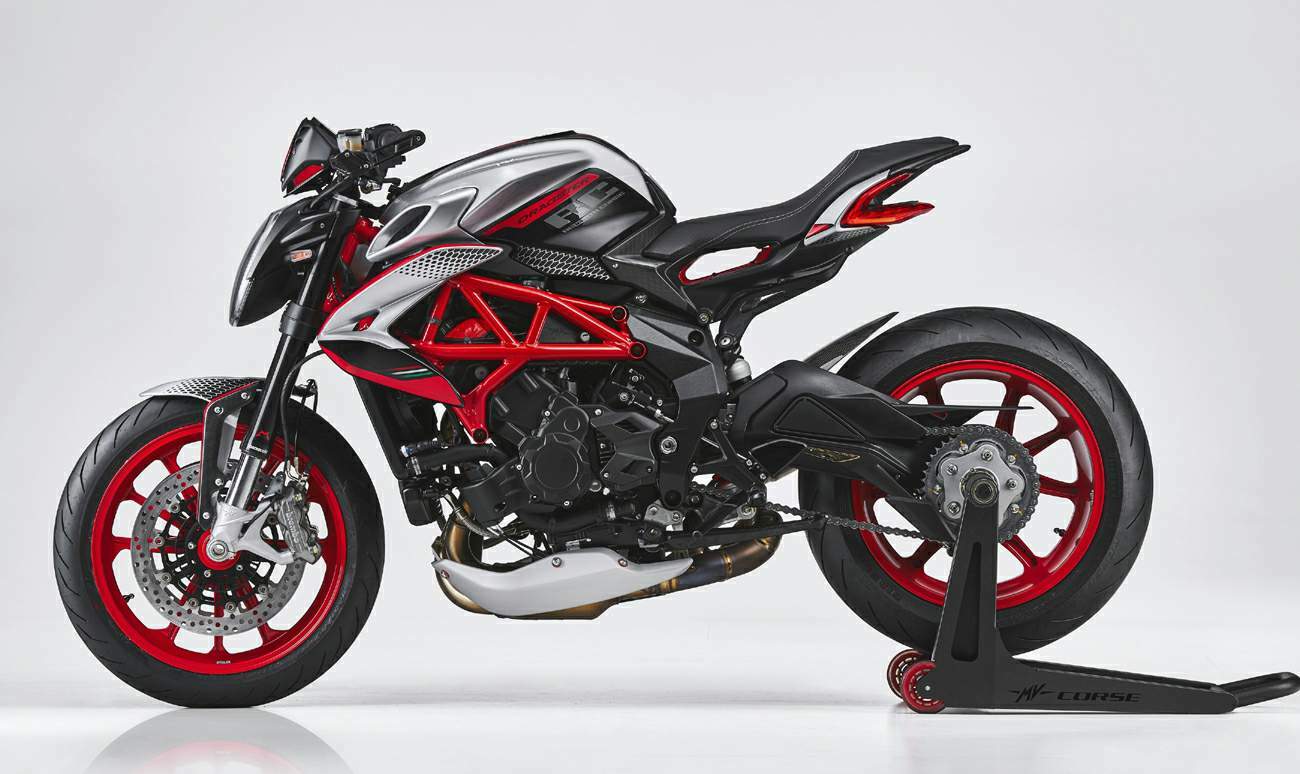

MV Agusta Dragster 800RC SCS (2021) technical specifications

MV Agusta Dragster 800RC SCS technical specifications

MV Agusta Dragster 800RC SCS is produced in 2021. Engine is Four stroke, transverse three cylinder, DOHC with mechanical chain tensioner and DLC tappet, 4 valves per cylinder, displacement 798 cc / 48.68 cu-in , produces power 103 kW / 140 hp @ 12300 rpm and 87 Nm / 64.1 lb-ft @ 10250 rpm. MV Agusta Dragster 800RC SCS weighs 168 kg / 370.38 lbs 160 kg / 352.74 lbs - Rascing Kit with SC Exhaust and dedicated ECU Map version. MV Agusta Dragster 800RC SCS has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: Dragster 800RC SCS
Years: 2021
Engine: Four stroke, transverse three cylinder, DOHC with mechanical chain tensioner and DLC tappet, 4 valves per cylinder
Capacity: 798 cc / 48.68 cu-in
Bore x Stroke: 79 x 54.3 mm
Cooling System: Cooling with separated liquid and oil radiators
Compression Ratio: 13.3:1
Engine management system: Integrated ignition - injection system MVICS 2.1 (Motor & Vehicle Integrated Control System) with six injectors. Engine control unit Eldor Nemo 2.1, throttle body full ride by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire. Torque control with four maps. Traction Control with eight levels of intervention with lean angle sensor
Electronic Quick-shift: MV EAS 2.0 (Electronically Assisted Shift up & down)
Environmental Standard: Euro 5
Ignition: Multipoint electronic injection
Starting: Electric
Max Power: 103 kW / 140 hp @ 12300 rpm
Max Torque: 87 Nm / 64.1 lb-ft @ 10250 rpm
Clutch: S.C.S. 2.0 (Smart Clutch System) Radius CX automatic clutch with hydraulic clutch actuation, wet multi-disc
Transmission: Cassette style, 6 speed, constant mesh
Final Drive: Chain
Primary Drive Ratio: 22/41
Final Drive Ratio: 16/41
Gear Ratio: 1st 13/37 2nd 16/34 3rd 18/32 4th 19/30 5th 21/30 6th 22/29
Frame: ALS Steel tubular trellis, aluminium alloy rear swing arm pivot plates
Front Suspension: 43mm Marzocchi USD aluminium telescopic hydraulic fork with DLC treated aluminium, with anodized fork legs and having rebound-compression damping and spring preload external and separate adjustment
Front Wheel Travel: 125 mm / 4.9 in
Rear Suspension: Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment, aluminium alloy single sided swing arm
Rear Wheel Travel: 130 mm / 5.1 in
Front Brakes: 2x 320mm floating discs, with steel braking disc and flange, Brembo radial-type with 4 piston calipers
Rear Brakes: Single 220mm disc, Brembo 2 piston caliper
ABS: Continental MK100 with RLM (Rear Wheel Lift-up Mitigation) and with cornering function
Rim Front: Forged aluminium alloy 3.50 x 17 in
Rim Rear: Forged aluminium alloy 6.00 x 17 in
Front Tyre: 120/70- ZR 17 M/C (58 W)
Rear Tyre: 200/55- ZR 17 M/C (78 W)
Trail: 103.5 mm / 4.07 in
Steering Damper: Manually adjustable with 8 settings
Dimensions: Length: 2035 mm / 80.1 in Width: 935 mm / 36.8 in
Wheelbase: 1400 mm / 55.1 in
Seat Height: 845 mm / 33.3 in
Ground Clarence: 135 mm / 5.3 in
Dry Weight: 168 kg / 370.38 lbs 160 kg / 352.74 lbs - Rascing Kit with SC Exhaust and dedicated ECU Map version
Fuel Capacity: 16.5 Litres / US 4.36 gal
Exclusive Features: MV Ride App - Cruise control Launch control - Certificate of origin - Limited Edition, Carbon Fiber Components: Rh/Lh front mudguard support brackets Fuel tank side covers - Rear fender
Optional: Racing Kit: SC-Project Titanium exhaust silencer + Power unit for SC exhaust silencer carry-over (with special mapping)
