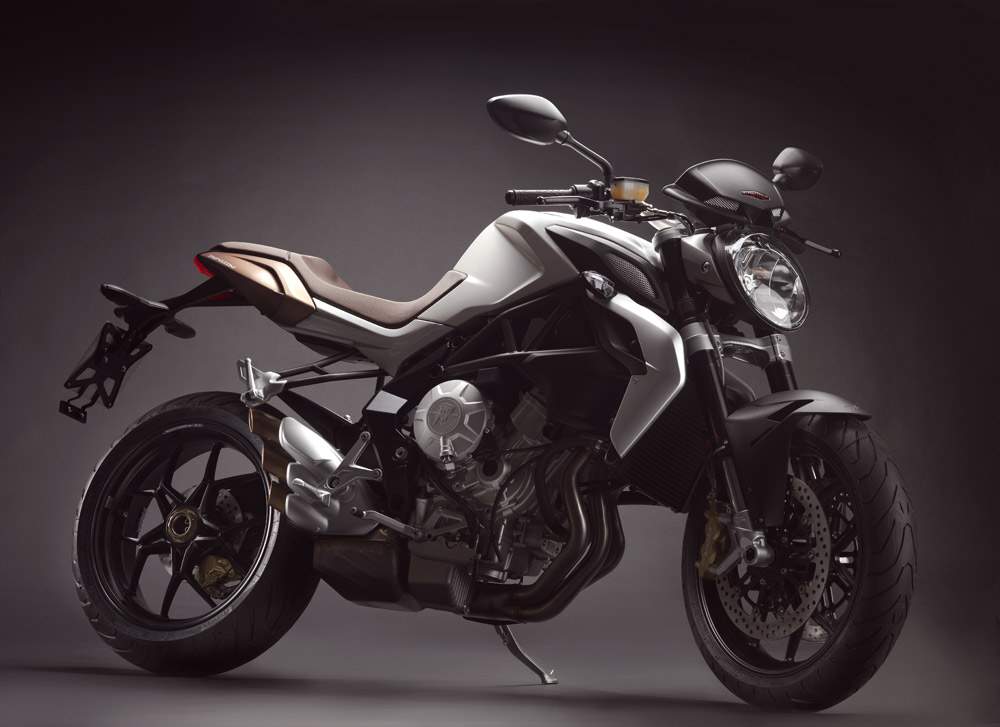

MV Agusta Brutale 675 (2012) technical specifications

MV Agusta Brutale 675 is produced in 2012. Engine is Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder, displacement 675 cc / 41.2 cu-in , produces power 84.5 kW / 113 hp @ 12500 rpm and 71 Nm / 7.24 kg-m @ 10600 rpm. MV Agusta Brutale 675 weighs 163 kg / 358 lbs. MV Agusta Brutale 675 has 8 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Brutale 675
Years:	2012
Engine:	Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder
Capacity:	675 cc / 41.2 cu-in
Bore x Stroke:	79 x 45.9 mm
Cooling System:	Liquid cooled
Compression Ratio:	12.0:1
Induction:	Integrated ignition - injection system with three injectors Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire Torque control with four maps, Traction Control with eight levels of intervention
Ignition:	Digital CDI
Voltage:	12 V
Alternator:	350 W at 5000 r.p.m.
Battery:	12 V - 8.6 Ah
Starting:	Electric
Max Power:	84.5 kW / 113 hp @ 12500 rpm
Max Torque:	71 Nm / 7.24 kg-m @ 10600 rpm
Clutch:	Wet, multiple discs, cable operated
Transmission:	6 Speed
Final Drive:	Chain
Gear Ratio:	1st : 1/14.493 2nd: 1/10.821 3rd: 1/9.053 4th: 1/8.040 5th: 1/7.274 6th: 1/6.712
Final Drive Ratio:	16/43
Frame:	ALS Steel tubular trellis, Rear swing arm pivot plates: material Aluminium alloy
Front Suspension:	43mm“UPSIDE - telescopic hydraulic fork,
Front Wheel Traval:	125 mm / 4.9 in
Rear Suspension:	Progressive, single shock absorber with spring preload adjustment
Rear Wheel Travel:	123 mm / 4.8 in
Front Brakes:	2x 320mm floating discs 4 pistons calipers
Rear Brakes:	Single 220mm disc single piston caliper
Front Tyre:	120/70-ZR17
Rear Tyre:	180/55-ZR17
Trail:	95 mm / 3.74 in.
Dimensions:	Length 2085 mm / 82.0 in Width 725 mm / 28.5 in
Wheelbase:	1380 mm / 54.3 in
Seat Height:	812 mm / 31.9 in
Ground Clearance:	149 mm / 5.8 in
Dry Weight:	163 kg / 358 lbs
Fuel Capacity:	17.5 Litres / 4.6 US gal
