MV Agusta Brutal 800RR Pirelli Special Edition (2017-18) technical specifications

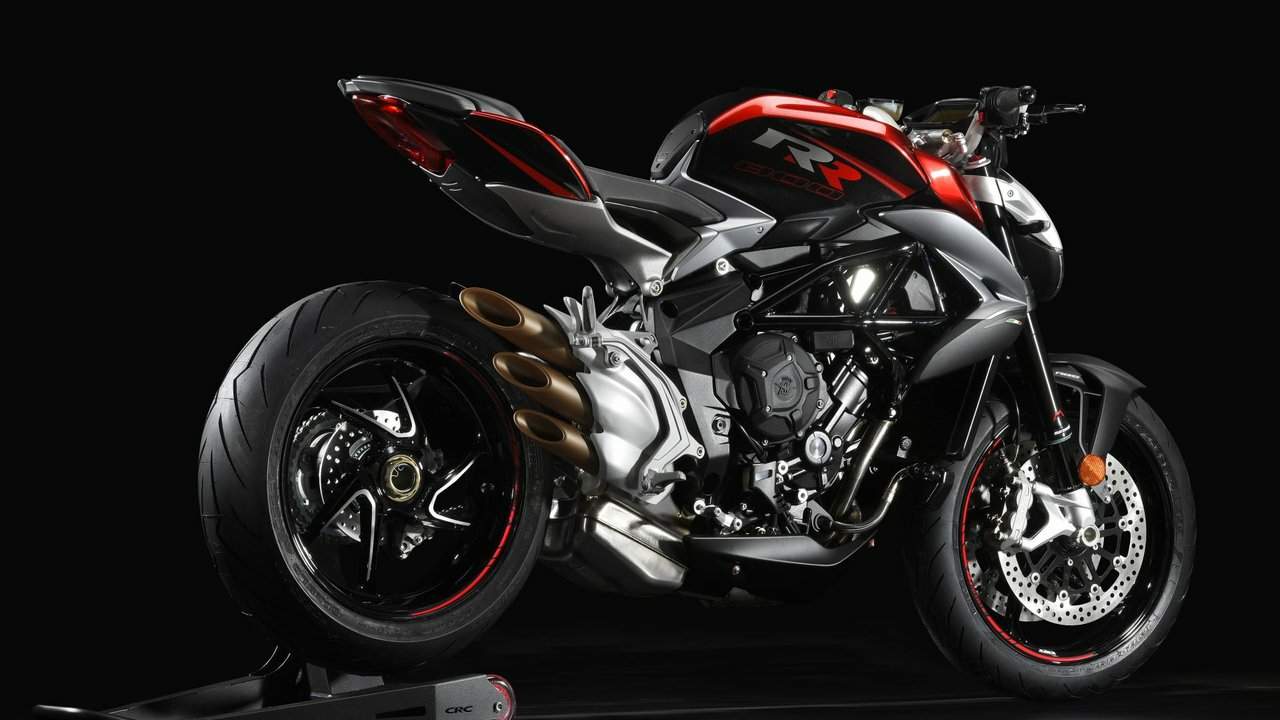

MV Agusta Brutal 800RR Pirelli Special Edition is produced in 2017-18. Engine is Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder, displacement 798 cc / 48.68 cu. in , produces power 103 kW / 140 hp @ 13100 rpm and 86 Nm / 8.77 kgm @ 10100 rpm. MV Agusta Brutal 800RR Pirelli Special Edition weighs 175 Kg / 385.8 lbs. MV Agusta Brutal 800RR Pirelli Special Edition has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Brutal 800RR Pirelli Special Edition
Years:	2017-18
Engine:	Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder
Capacity:	798 cc / 48.68 cu. in
Bore x Stroke:	79 x 54.3 mm
Cooling System:	Cooling with separated liquid and oil radiators
Compression Ratio:	12.3:1
Engine management system:	Engine management system Integrated ignition - injection system MVICS 2.0 (Motor & Vehicle Integrated Control System) with six injectors. Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire. Torque control with four maps, Traction Control with eight levels of intervention Electronic quick-shift MV EAS 2.0 (Electronically Assisted Shift up & down)
Environmental Standard:	Euro 4
Ignition:	Multipoint electronic injection
Starting:	Electric
Battery:	12 V - 8.6 Ah
Alternator:	350 Wat 5000 rpm
Max Power:	103 kW / 140 hp @ 13100 rpm
Max Torque:	86 Nm / 8.77 kgm @ 10100 rpm
Electronic Quick-shift:	MV EAS 2.0 (Electronically Assisted Shift up & down)
Clutch:	Multi-disk wet clutch with hydraulic actuation
Transmission:	Cassette style 6 speed constant mesh
Final Drive:	Chain
Primary Drive:	19/36 - Gear ratio
Gear Ratio:	1st 13/37 2nd 16/34 3rd 18/32 4th 19/30 5th 21/30 6th 22/29
Final Drive Ratio:	16/41
Frame:	ALS Steel tubular trellis Aluminium alloy
Front Suspension:	43 mm Marzocchi “UPSIDE DOWN” telescopic hydraulic fork in DLC treated aluminium, with gold colour anodized fork legs and having rebound-compression damping and spring preload external and separate adjustment
Front Wheel Travel:	125 mm / 4.9 in
Rear Suspension:	Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment Single sided swing arm material Aluminium alloy
Rear Wheel Travel:	124 mm / 4.8 in
Front Brakes:	2x 320mm floating discs Brembo 4 piston calipers
Rear Brakes:	Single 220mm disc Brembo 2 piston caliper
ABS:	ABS System Bosch 9 Plus with RLM
Rim Front:	Aluminium alloy 3.50 x 17 in
Rim Rear:	Aluminium alloy 5.50 x 17 in
Front Tyre:	120/70 - ZR 17 M/C (58 W)
Rear Tyre:	180/55 - ZR 17 M/C (73 W)
Trail:	103.5 mm / 4.0 in.
Dimensions:	Length 2045 mm / 80,51 in Width 875 mm / 34,45 in
Wheelbase:	1400 mm / 55,12 in
Seat Height:	830 mm / 32,6 in
Ground Clarence:	135 mm / 5.3 in
Dry Weight:	175 Kg / 385.8 lbs
Fuel Capacity:	16.5 Litres / 4.36 US gal
