MV Agusta Brutal 800 Rosso (2020) technical specifications

MV Agusta Brutal 800 Rosso technical specifications

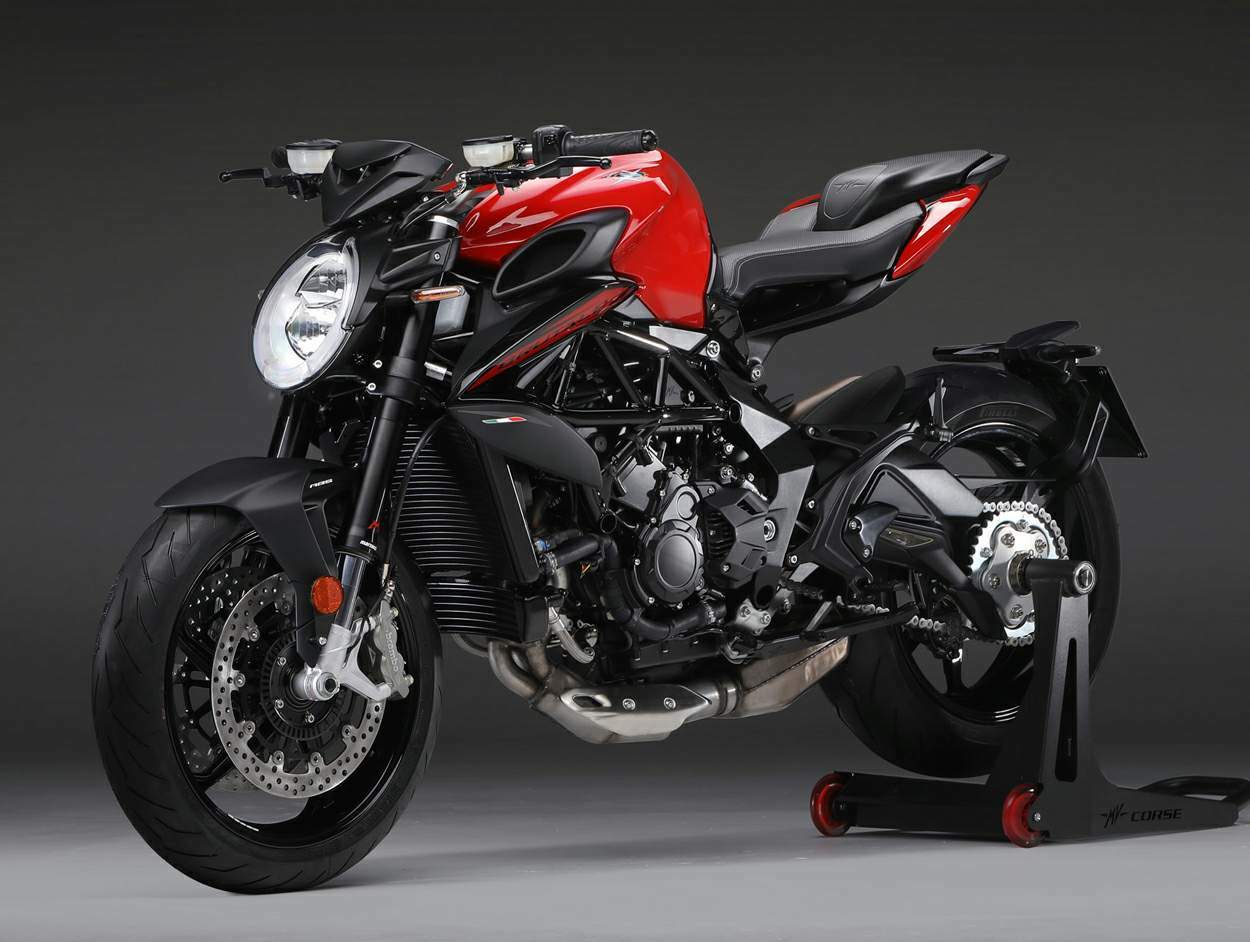

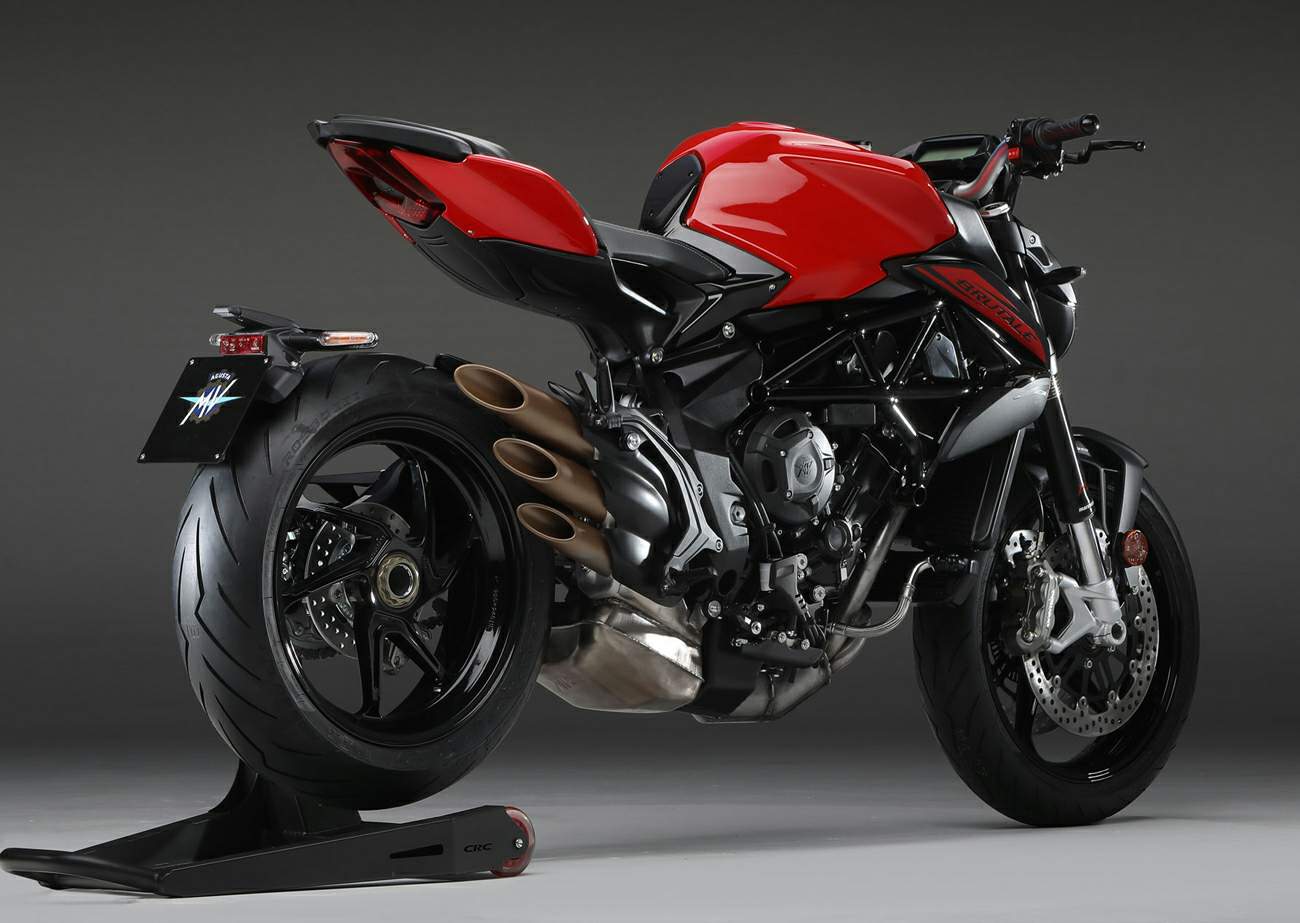

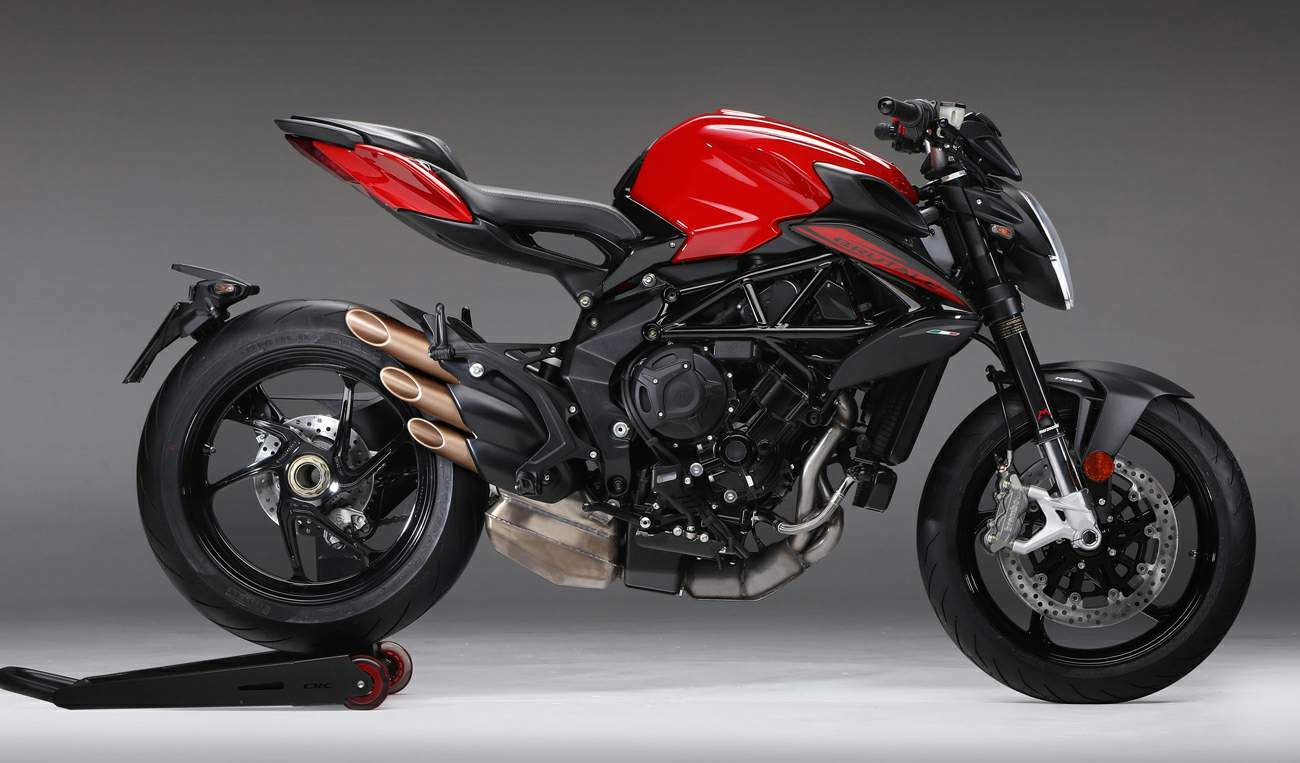

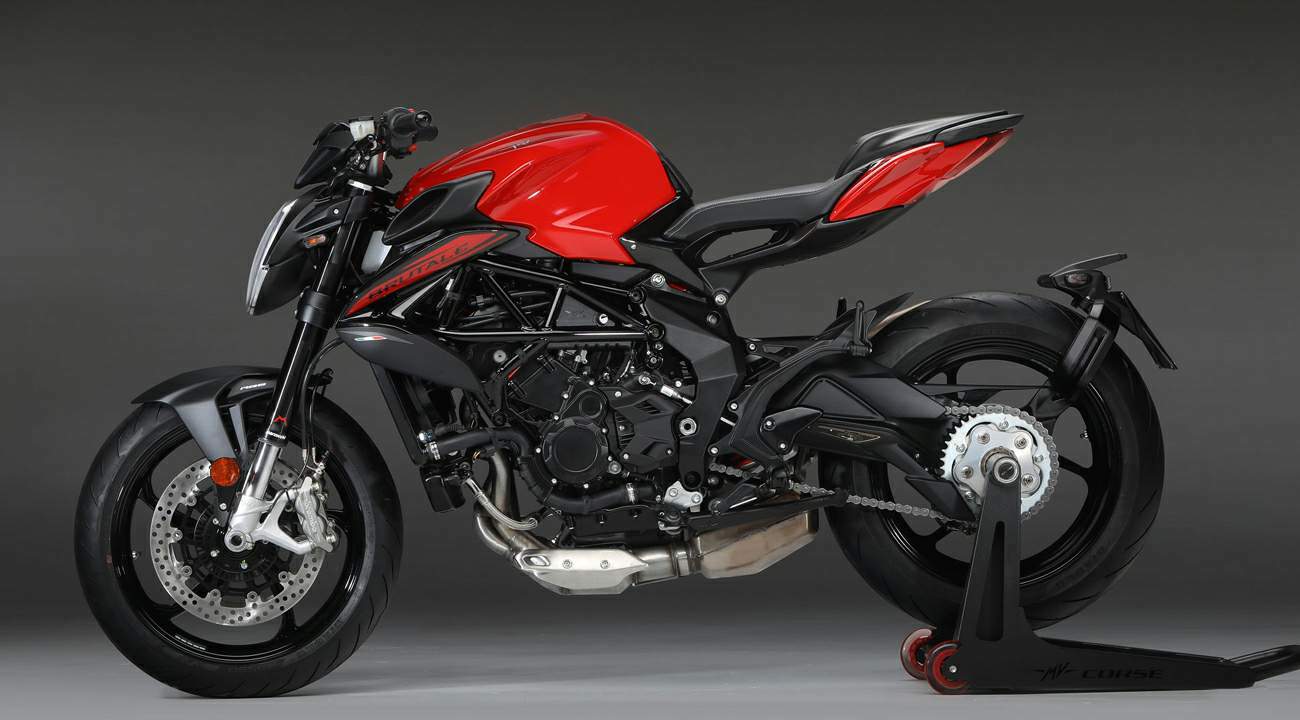

MV Agusta Brutal 800 Rosso is produced in 2020. Engine is Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder, displacement 798 cc / 48.69 cu-in , produces power 81 kW / 110 hp @ 11500 rpm and 83 Nm / 61.2 lb-ft @ 7600 ron. MV Agusta Brutal 800 Rosso weighs 175 kg / 385,8 lbs. MV Agusta Brutal 800 Rosso has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: Brutal 800 Rosso
Years: 2020
Engine: Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder
Capacity: 798 cc / 48.69 cu-in
Bore x Stroke: 79 x 54.3 mm
Cooling System: Cooling with separeted liquid and oil radiators
Compression Ratio: 12.3:1
Engine Management System: Integrated ignition – injection system MVICS (Motor & Vehicle Integrated Control System) with three injectors. Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil. Torque control with four maps, Traction Control with eight levels of intervention.
Environmental Standard: Euro 4
Ignition: Multipoint electronic injection
Starting: Electric
Battery: 12 V – 8.6 Ah
Alternator: 350 W at 5000 r.p.m.
Max Power: 81 kW / 110 hp @ 11500 rpm
Max Torque: 83 Nm / 61.2 lb-ft @ 7600 ron
Electronic Quick-shift: MV EAS 2.0 (Electronically Assisted Shift up & down)
Clutch: Hydraulically actuated Wet-clutch, multi-disc with back torque limiting device
Transmission: 6 Speed constant mesh
Final Drive: Chain
Gear Ratio: 1st: 13/37 2nd: 16/35 3rd: 18/32 4th: 20/30 5th: 22/29 6th: 21/25
Primary Drive: 19/36
Final Drive Ratio: 16/41
Frame: ALS Steel tubular trellis, swing arm pivot plates material Aluminium alloy
Front Suspension: 43mm Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Front Wheel Travel: 125 mm / 4.9 in
Rear Suspension: Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment Single sided swing arm material Aluminium alloy
Rear Wheel Travel: 124 mm / 4.9 in
Front Brakes: 2x 320 mm floating discs with Brembo radial-type 4 pistons caliper
Rear Brakes: Single 220mm disc 2 piston caliper
ABS System: Bosch 9 Plus with RLM (Rear wheel Lift-up Mitigation)
Front Wheel: Material/size Aluminium alloy 3.50 ” x 17 ”
Rear Wheel: Material/size Aluminium alloy 5.50 ” x 17 ”
Front Tyre: 120/70 – ZR 17 M/C (58 W)
Rear Tyre: 180/55 – ZR 17 M/C (73 W)
Trail: 103,5 mm / 4.07 in
Dimensions: Length 2045 mm / 80.51 in Width 875 mm / 34.45 in
Wheelbase: 14000 mm / 55.1 in
Seat Height: 830 mm / 32.6 in
Ground Clarence: 135 mm / 5.3 in
Dry Weight: 175 kg / 385,8 lbs
Fuel Capacity: 16.6 Litres / 4.39 US gal
Reserve: 5 Litres / 1.3 US gal
