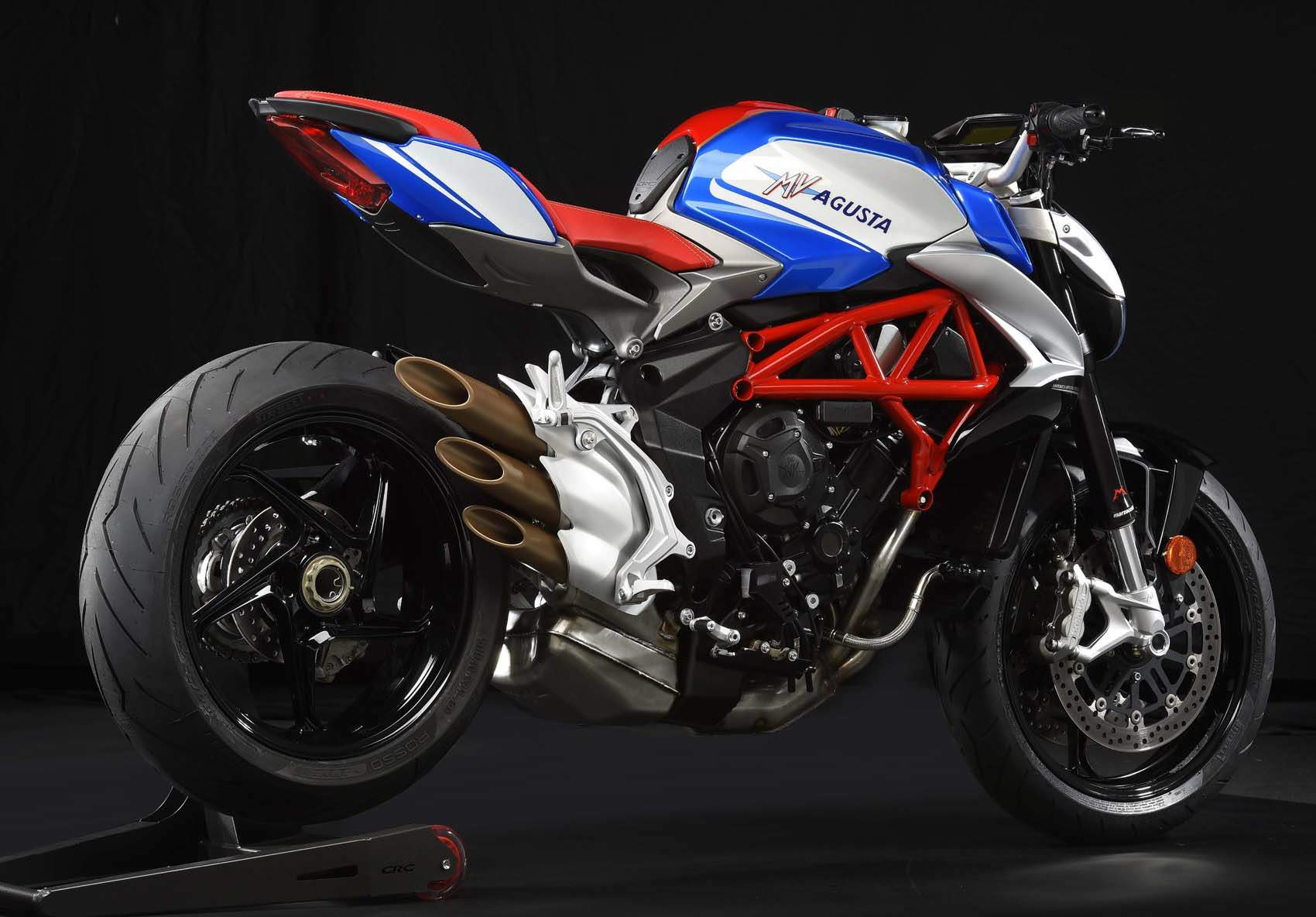

MV Agusta Brutal 800 America Special Edition (2017) technical specifications

MV Agusta Brutal 800 America Special Edition is produced in 2017. Engine is Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder, displacement 798 cc / 48.69 cu-in , produces power 81 kW / 109 hp @ 11500 rpm and 83 Nm / 61.2 lb-ft @ 7600 ron. MV Agusta Brutal 800 America Special Edition weighs 175 kg / 385,8 lbs. MV Agusta Brutal 800 America Special Edition has 11 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Brutal 800 America Special Edition
Years:	2017
Engine:	Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder
Capacity:	798 cc / 48.69 cu-in
Bore x Stroke:	79 x 54.3 mm
Cooling System:	Cooling with separeted liquid and oil radiators
Compression Ratio:	13.3:1
Engine Management System:	Integrated ignition – injection system MVICS (Motor & Vehicle Integrated Control System) with three injectors. Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil. Torque control with four maps, Traction Control with eight levels of intervention.
Environmental Standard:	Euro 4
Ignition:	Multipoint electronic injection
Starting:	Electric
Battery:	12 V – 8.6 Ah
Alternator:	350 W at 5000 r.p.m.
Max Power:	81 kW / 109 hp @ 11500 rpm
Max Torque:	83 Nm / 61.2 lb-ft @ 7600 ron
Electronic Quick-shift:	MV EAS 2.0 (Electronically Assisted Shift up & down)
Clutch:	Hydraulically actuated Wet-clutch, multi-disc with back torque limiting device
Transmission:	6 Speed constant mesh
Final Drive:	Chain
Gear Ratio:	1st: 13/37 2nd: 16/35 3rd: 18/32 4th: 20/30 5th: 22/29 6th: 21/25
Primary Drive:	19/36
Final Drive Ratio:	16/41
Frame:	ALS Steel tubular trellis, swing arm pivot plates material Aluminium alloy
Front Suspension:	43mm Marzocchi “UPSIDE DOWN” telescopic hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Front Wheel Travel:	125 mm / 4.9 in
Rear Suspension:	Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment Single sided swing arm material Aluminium alloy
Rear Wheel Travel:	124 mm / 4.9 in
Front Brakes:	2x 320 mm floating discs with Brembo radial-type 4 pistons caliper
Rear Brakes:	Single 220mm disc 2 piston caliper
ABS System:	Bosch 9 Plus with RLM (Rear wheel Lift-up Mitigation)
Front Wheel:	Material/size Aluminium alloy 3.50 ” x 17 ”
Rear Wheel:	Material/size Aluminium alloy 5.50 ” x 17 ”
Front Tyre:	120/70 – ZR 17 M/C (58 W)
Rear Tyre:	180/55 – ZR 17 M/C (73 W)
Trail:	103,5 mm / 4.07 in
Dimensions:	Length 2045 mm / 80.51 in Width 875 mm / 34.45 in
Wheelbase:	14000 mm / 55.1 in
Seat Height:	830 mm / 32.6 in
Ground Clarence:	135 mm / 5.3 in
Dry Weight:	175 kg / 385,8 lbs
Fuel Capacity:	16.6 Litres / 4.39 US gal
Reserve:	5 Litres / 1.3 US gal
