MV Agusta 850SS America (1977) technical specifications

MV Agusta 850SS America technical specifications

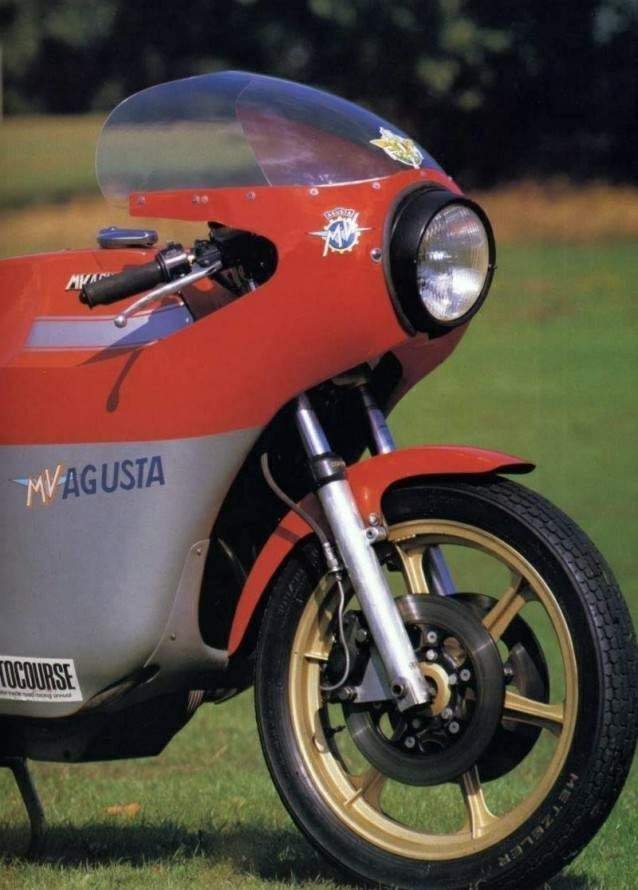

MV Agusta 850SS America is produced in 1977. Engine is Four stroke, transverse four cylinders, DOHC, 2 valve per cylinder, displacement 837 cc / 51.0 cu-in , produces power 61 kW / 81.8 hp @ 9000 rpm. MV Agusta 850SS America has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: 850SS America
Years: 1977
Engine: Four stroke, transverse four cylinders, DOHC, 2 valve per cylinder
Capacity: 837 cc / 51.0 cu-in
Bore x Stroke: 89 x 56 mm
Cooling System: Air cooled
Compression Ratio: 10.3:1
Induction: 4x 27mm Dell'Orto carbs
Starting: Electric
Max Power: 61 kW / 81.8 hp @ 9000 rpm
Clutch: Multiple disc in oil bath.
Transmission: 5 Speed
Final Drive: Chain
Frame: Tubular steel, welded, double cradle
Front Suspension: 38mm Forcelle Italia telescopic forks, preload, rebound damping adjustable.
Rear Suspension: Dual Koni shocks preload adjustable
Front Brakes: 2x 280mm discs
Rear Brakes: Single 280mm disc
Front Tyre: 110/80 -18
Rear Tyre: 150/70 -18
Weight: 200 kg / 440 lbs
Fuel Capacity: 19 Litres / 5.0 US gal
