Moto Guzzi V7 Special (2013) technical specifications

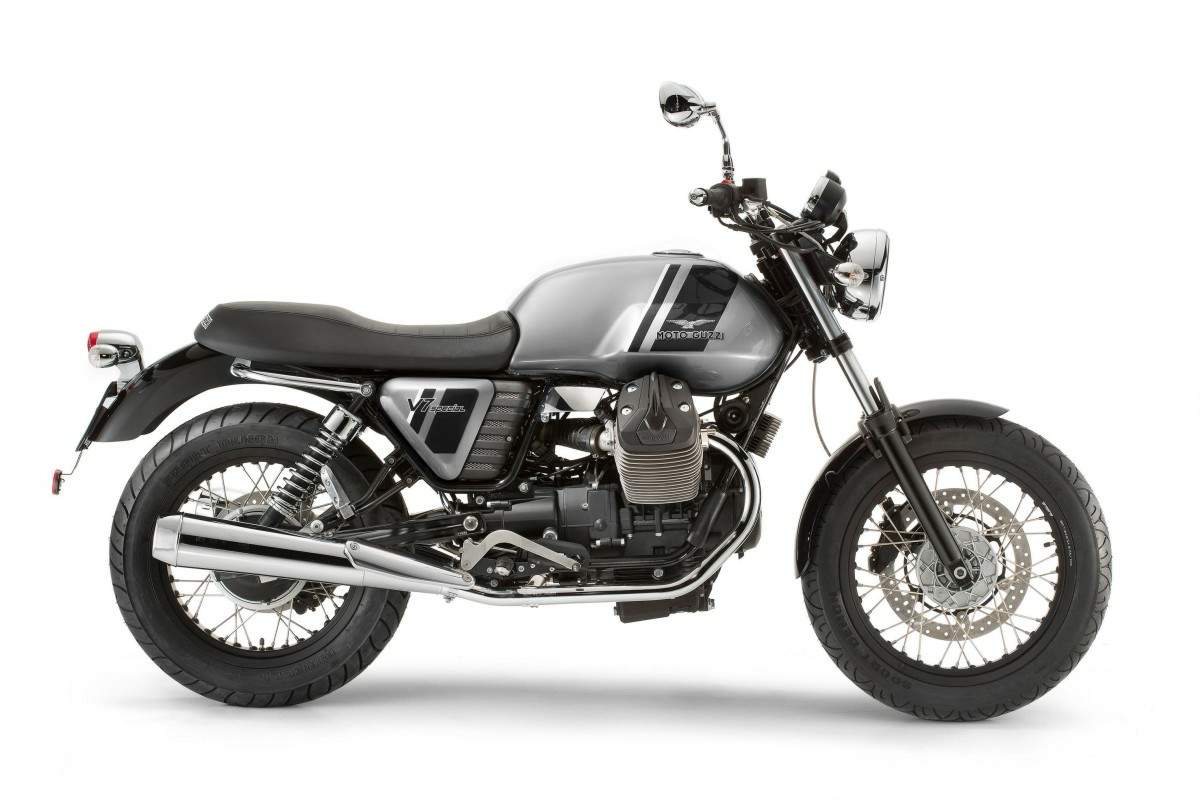

Moto Guzzi V7 Special technical specifications

Moto Guzzi V7 Special is produced in 2013. Engine is Four stroke, V twin, longitudinally mounted, OHV, 2 valves per cylinder., displacement 744 cc / 45.4 in , produces power 37.5 kW / 51 hp @ 6200 rpm and 58 Nm / 40.3 lb-ft @ 5000 rpm. Moto Guzzi V7 Special weighs 179 kg / 395 lbs. Moto Guzzi V7 Special has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: V7 Special
Years: 2013
Engine: Four stroke, V twin, longitudinally mounted, OHV, 2 valves per cylinder.
Capacity: 744 cc / 45.4 in
Bore x Stroke: 80 x 74 mm
Cooling System: Air cooled
Compression Ratio: 9.6:1
Induction: Weber- Marelli electronic injection
Ignition: Magneti Marelli electronic digital
Battery: 12 V - 330 Watt Voltage 12 V - 14 Amp/h
Alternator: 12 V - 55/60 W
Starting: Electric
Exhaust system: 3 way catalytic converter with twin oxygen sensor
Max Power: 37.5 kW / 51 hp @ 6200 rpm
Max Torque: 58 Nm / 40.3 lb-ft @ 5000 rpm
Clutch: Single disc, dry, with cush drive
Transmission: 5 Speed
Final Drive: Shaft, ratio 4.825
Gear Ratios: 1st 11/26 = 1 : 2.3636 2nd 14/23 = 1 : 1.6429 3rd 18/23 = 1 : 1.2778 4th 18/19 = 1 : 1.0556 5th 25/22 = 1 : 0.9
Frame: Detachable tubular duplex cradle
Front Suspension: Marzocchi Ø 40 mm telescopic front forks
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Swinging arm in light cast alloy with two dampers and adjustable preload
Rear Wheel Travel: 118 mm / 4.6 in
Front Brakes: Single 320mm disc 2 piston caliper
Rear Brakes: Single 260mm disc 2 piston caliper
Wheels: Cast aluminum alloy multi-spoke black anodized rims
Front wheel: 18", 100/90
Rear wheel: 17", 130/80
Front Tyre: 100/70-18
Rear Tyre: 130/80-17
Trail: 109 mm
Steering Rake: 27°50'
Steering angle: 32°
Dimensions: Length 2185 mm / 86 in Width 800 mm / 31.8 in Height 1115 mm / 43.8 in
Minimum ground clearance: 182 mm / 7.2 in
Wheelbase: 1449 mm / 57.0 in
Seat Height: 805 mm / 31.7 in
Dry Weight: 179 kg / 395 lbs
Wet Weight: 198 kg / 436 lbs
Fuel Capacity: 22 Litres / 5.8 gal
Reserve: 3.7 Litres
