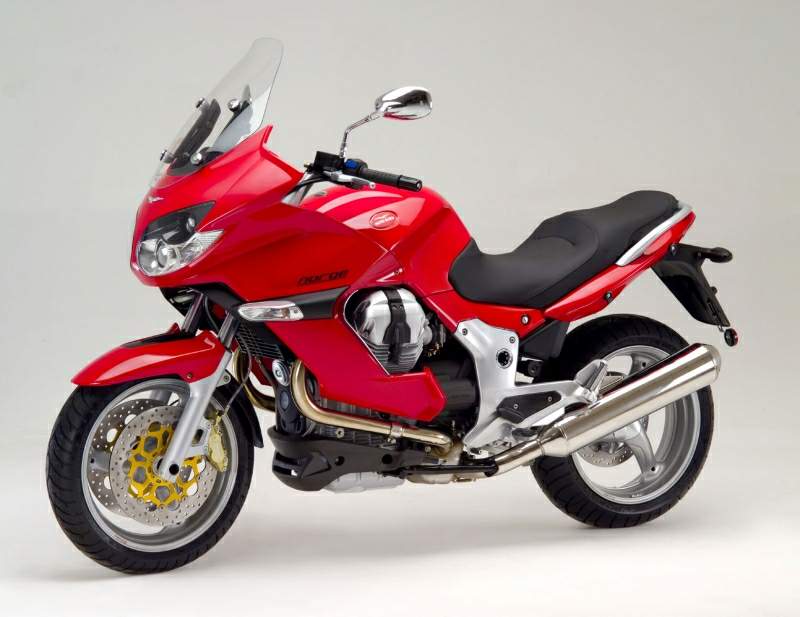

Moto Guzzi Norge 1200 (2008-09) technical specifications

Moto Guzzi Norge 1200 is produced in 2008-09. Engine is Four stroke, V twin, longitudinally mounted, OHV, 2 valve per cylinder., displacement 1151 cc / 70.2 cu-in , produces power 88.5 hp / 64.6 kW @ 7500 rpm and 100 Nm / 73.8 lb-ft @ 5800 rpm. Moto Guzzi Norge 1200 top speed is 201. km/h / 125 mph. Moto Guzzi Norge 1200 weighs 246 kg / 542.3 lbs. Moto Guzzi Norge 1200 has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Norge 1200
Years:	2008-09
Engine:	Four stroke, V twin, longitudinally mounted, OHV, 2 valve per cylinder.
Capacity:	1151 cc / 70.2 cu-in
Bore x Stroke:	95 x 81.2 mm
Cooling System:	Air cooled
Compression Ratio:	9.8:1
Lubrication:	Splash
Exhaust:	Stainless steel two-into-one 3-way catalysed with Lambda probe.
Induction:	Multipoint sequential electronic injection, Magneti Marelli IAW 5A phased, alfa-n system; 2 x Ø50 mm throttle bodies with Weber IWP 189 injectors, Lambda probe.
Ignition:	Inductive discharge, digitally controlled, electronic twin spark ignition
Starting:	Electric
Max Power:	88.5 hp / 64.6 kW @ 7500 rpm
Max Torque:	100 Nm / 73.8 lb-ft @ 5800 rpm
Clutch:	Single plate with integrated flexible couplings
Transmission:	6 Speed
Final Drive:	Shaft
Gear Ratio:	1st 17/38 = 1 : 2.235 2nd 20/34 = 1 : 1.700 3th 23/31 = 1 : 1.347 4th 26/29 = 1 : 1.115 5th 31/30 = 1 : 0.967 6th 29/25 = 1 : 0.862
Frame:	Tubular cradle, high tensile steel
Front Suspension:	45mm Telescopic hydraulic fork, preload adjustable
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Single arm suspension progressive linkage, rear shock absorber adjustable in rebound ad pre-load
Rear Wheel Travel:	140 mm / 5.5 in
Front Brakes:	2x 320mm discs 4 piston caliper
Rear Brakes:	Single 280mm disc 2 piston caliper
Front Tyre:	120/70 ZR17
Rear Tyre:	180/55 ZR17
Rake:	25.0°
Trail:	120 mm / 4.7 in
Dimensions:	Length 2195 mm / 86.4 in width 870 mm / 34.2 in Height 1125 mm / 34.2 in
Wheelbase:	1495 mm / 58.9 in
Seat Height:	800 mm / 31.5 in
Ground clearance:	185 mm / 7.3 in
Dry Weight:	246 kg / 542.3 lbs
Fuel Capacity:	23 Litres / 6.0 US gal
Consumption Average:	16.2 km/lit
Standing ¼ Mile:	13.0 sec
Standing 1000m:	24.9 sec
Top Speed:	201. km/h / 125 mph
