Moto Guzzi California 1100 EV Touring (2002-06) technical specifications

Moto Guzzi California 1100 EV Touring technical specifications

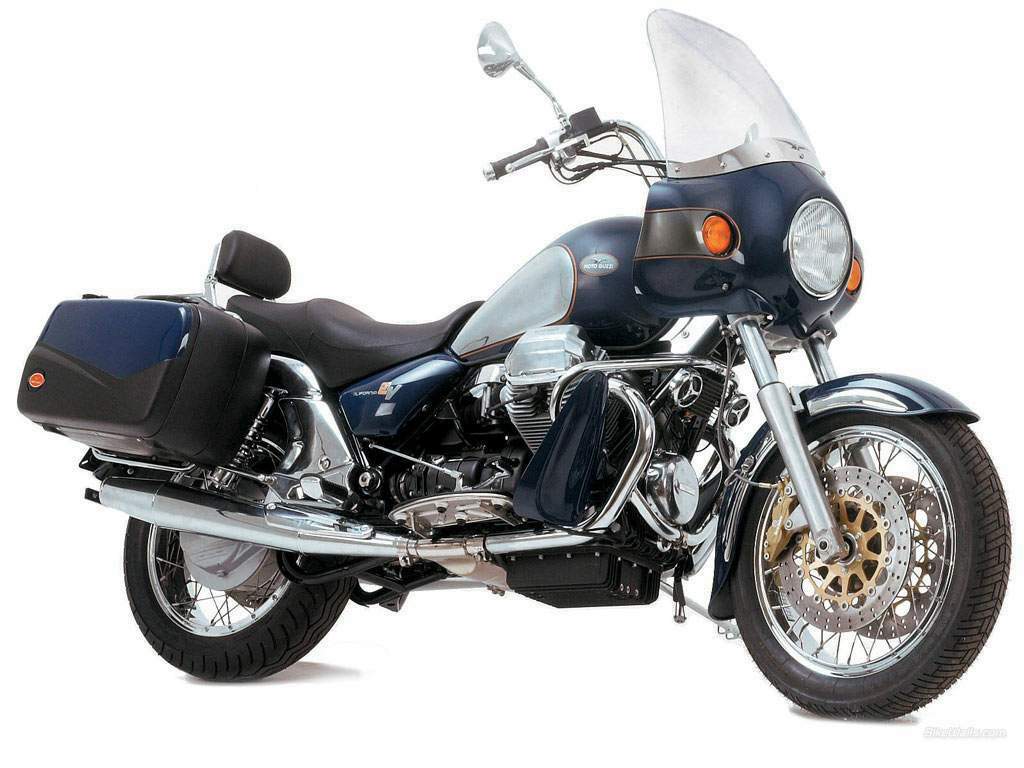

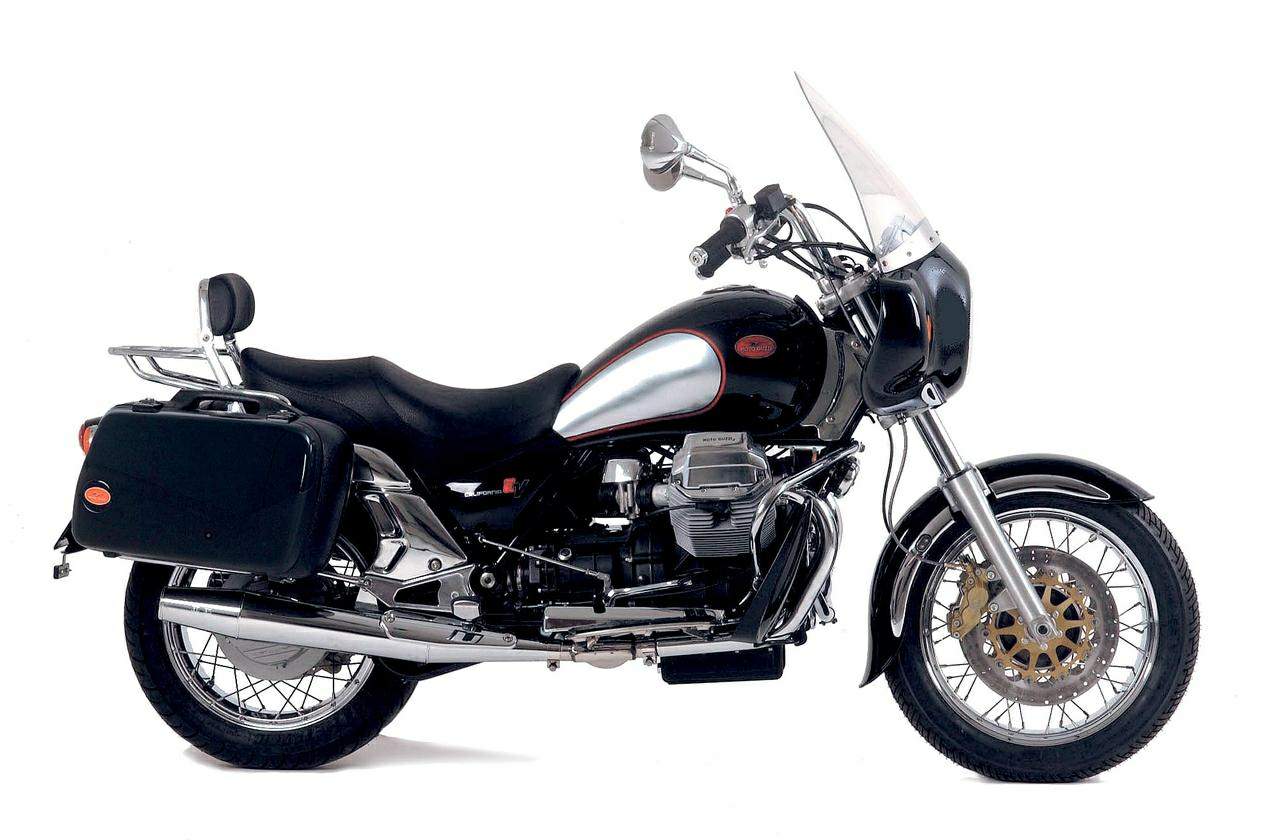

Moto Guzzi California 1100 EV Touring is produced in 2002-06. Engine is Four stroke, 90° V twin, longitudinally mounted, OHV, 2 valve per cylinder., displacement 1064 cc / 64.9 cu-in , produces power 74 hp / 53.9 kW @ 6400 rpm and 95 Nm / 70.0 lb-ft @ 5000 rpm. Moto Guzzi California 1100 EV Touring weighs 251.0 kg / 553.3 lbs. Moto Guzzi California 1100 EV Touring has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: California 1100 EV Touring
Years: 2002-06
Engine: Four stroke, 90° V twin, longitudinally mounted, OHV, 2 valve per cylinder.
Capacity: 1064 cc / 64.9 cu-in
Bore x Stroke: 92 x 80 mm
Cooling System: Air cooled
Compression Ratio: 9.8:1
Lubrication: Forced lobes, with geared pump and pressure regulator
Induction: Magneti Marelli IAW Multipoint phased sequential fuel injection
Ignition: Magneti Marelli IAW electronic digital ignition
Starting: Electric
Max Power: 74 hp / 53.9 kW @ 6400 rpm
Max Torque: 95 Nm / 70.0 lb-ft @ 5000 rpm
Clutch: Single disc, dry, with mechanical control
Transmission: 5 Speed
Final Drive: Shaft
Frame: Detachable tubular duplex cradle in special high-strengh steel
Front Suspension: 45mm Marzocchi hydraulic telescopic fork, adjustable separately
Front Wheel Travel: 130 mm / 5.1 in
Rear Suspension: Swing arm with 2 hydraulic shock absorbers with preload adjustment
Rear Wheel Travel: 89 mm / 3.5 in
Front Brakes: 2x 320mm discs 4 piston calipers
Rear Brakes: Single 282mm disc 2 piston caliper
Front Tyre: 110/90-18
Rear Tyre: 140/80-17
Dimensions: Length 2380 mm / 93.7 in Width 815 mm / 32.0 in Height 1150 mm / 45.2 in
Wheelbase: 1560 mm / 61.4 in
Seat Height: 750 mm / 29.5 in
Dry Weight: 251.0 kg / 553.3 lbs
Fuel Capacity: 19 Litres / 5.0 US gal
