Laverda 500 Alpino (1977) technical specifications

Laverda 500 Alpino technical specifications

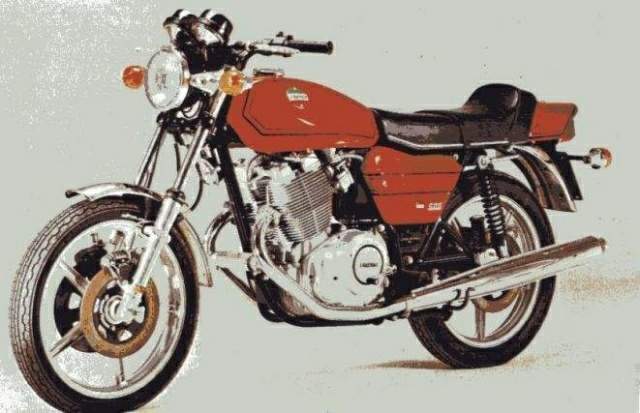

Laverda 500 Alpino is produced in 1977. Engine is Four stroke, parallel twin cylinders, DOHC, 4 valve per cylinder, displacement 497 cc / 30.2 cu-in , produces power 44 hp / 32.1 kW @ 9500 rpm and 44.7 Nm / 33 lb-ft @ 5200 rpm. Laverda 500 Alpino top speed is 107.2 mph. Laverda 500 Alpino weighs 175 kg / 385.8 lbs. Laverda 500 Alpino has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: 500 Alpino
Years: 1977
Engine: Four stroke, parallel twin cylinders, DOHC, 4 valve per cylinder
Capacity: 497 cc / 30.2 cu-in
Bore x Stroke: 72 x 61 mm
Cooling System: Air cooled
Compression Ratio: 9.6:1
Induction: 2x 32mm Dell'Orto carburetors
Ignition: Electric CDI
Starting: Electric
Max Power: 44 hp / 32.1 kW @ 9500 rpm
Max Torque: 44.7 Nm / 33 lb-ft @ 5200 rpm
Transmission: 6 Speed
Final Drive: Chain
Front Suspension: Marzocchi telescopic forks
Rear Suspension: Marzocchi 5-way adjustable shocks
Front Brakes: 2x 260mm discs 2 piston calipers
Rear Brakes: Single 260mm disc 1 piston caliper
Front Tyre: 90/90-17
Rear Tyre: 110/90-18
Dry Weight: 175 kg / 385.8 lbs
Wet Weight: 189 kg / 416.7 lbs
Fuel Capacity: 13.5 Litres / 3.5 US gal
Consumption Average: 43 mpg
Standing ¼ Mile: 14.0 sec / 93 mph
Top Speed: 107.2 mph
