Technical specifications
|
| Model: |

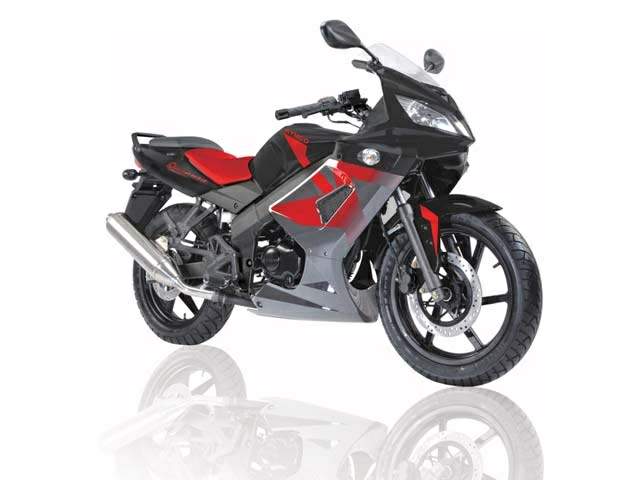

Kymco KR Sport / Quannon 125 |
| Years: |
2007-08 |
|
Engine:
|
Four stroke, single cylinder, SOHC, 4 valves
|
|
Capacity:
|
124 cc / 7.6 cub in
|
|
Bore x Stroke:
|
56.5 x 49.5 mm mm
|
|
Compression Ratio:
|
11:1
|
|
Cooling System:
|
Air/oil cooled
|
|
Induction:
|
Keihin CVK carburetor
|
|
Ignition:
|
CDI + TPS
|
|
Starting:
|
Electric
|
|
Max power:
|
9.7 kW / 13 hp @ 9500 rpm
|
|
Max Torque:
|
9.8 Nm / 1.0 kgf-m / 7.4lb ft @ 7500 rpm
|
|
Transmission:
|
5 Speed, constant mesh
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Twin-spar, steel tube
|
|
Dimensions:
|
Length: 2057 mm / 81.0 in Width: 725 mm / 28.5 in Height: 1174 mm / 46.2 in
|
|
Wheelbase:
|
1355 mm / 53.3 in
|
|
Seat Height:
|
801 mm / 31.5 in
|
|
Front Suspension:
|
Telescopic fork, 33 mm
|
|
Wheels:
|
5-Spoke, alloy
|
|
Front Wheel Travel:
|
125 mm / 4.9 in
|
|
Rear Suspension:
|
Twin sided swingarm
|
|
Front Brakes:
|
Single 276 mm disc, 2 piston caliper
|
|
Rear Brakes:
|
Single 225 mm disc, 2 piston caliper
|
|
Front Tyre:
|
110/80-17
|
|
Rear Tyre:
|
140/70-17
|
|
Dry-Weight:
|
137 kg / 302 lbs
|
|
Fuel Capacity:
|
13.5 Liters / 3.6 US gal
|
|
Top Speed:
|
130 km/h / 81 mph
|
