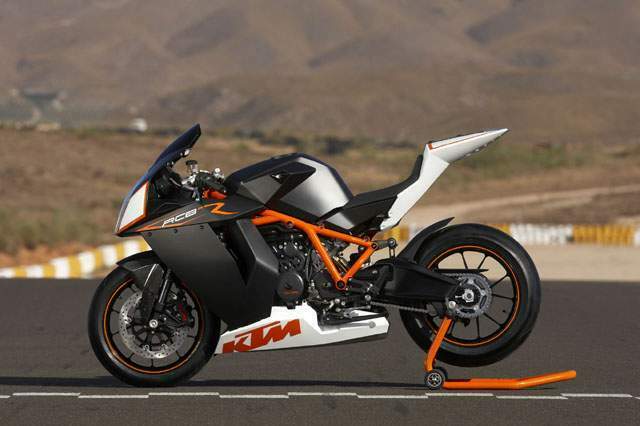

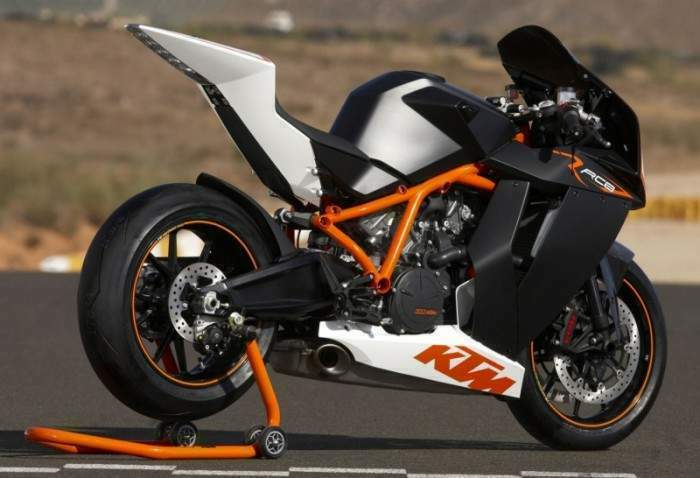

KTM RC8R 1190 Race Kit (2008) technical specifications
KTM RC8R 1190 Race Kit is produced in 2008. Engine is Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder, displacement 1195 cc / 73.0 cu-in , produces power 167.6 hp / 122.4 kW) @ 10250 rpm and 12.5 kgf-m / 90.7 ft.lbs @ 8000 rpm. KTM RC8R 1190 Race Kit has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | RC8R 1190 Race Kit |
| Years: | 2008 |
| Engine: | Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder |
| Capacity: | 1195 cc / 73.0 cu-in |
| Bore x Stroke: | 105 x 69 mm |
| Cooling System: | Liquid cooling |
| Compression Ratio: | 13.5 :1 |
| Lubrication Pressure: | lubrication with 3 Eaton pumps |
| Fuel Mixture Generation: | Keihin EFI (throttle body 52 mm (2.05")) Control 4 V/DOHC |
| Motor Management: | Keihin EMS |
| Engine Lubrication Motorex: | , SAE 10W-50 |
| Starting: | Electric |
| Max Power: | 167.6 hp / 122.4 kW) @ 10250 rpm |
| Max Torque: | 12.5 kgf-m / 90.7 ft.lbs @ 8000 rpm |
| Clutch: | Wet multi-disc clutch, operated hydraulically |
| Transmission: | 6 Speed |
| Final Drive: | 17:37 |
| Primary Drive: | 40:76 |
| Frame: | Chromium-Molybdenum trellis frame, powder-coated Subframe Aluminium |
| Front Suspension: | 43mm WP Upside down adjustable |
| Front Wheel Travel: | 120 mm / 4.7 in |
| Rear Suspension: | WP shock, fully adjustable |
| Rear Wheel Travel: | 125 mm / 4.9 in |
| Front Brakes: | 2x 320mm discs 4 piston calipers |
| Rear Brakes: | Single 240mm disc |
| Front Tyre: | 120/70 ZR17 |
| Rear Tyre: | 190/55 ZR17 |
| Trail: | 97 mm / 3.82 in |
| Wheel base: | 1425 mm / 56.1 in |
| Seat Height: | 805 mm / 825 mm |
| Ground Clearance: | 110 mm / 4.3 in |
| Fuel Capacity: | 16.5 Litres / 3.5 gal |
