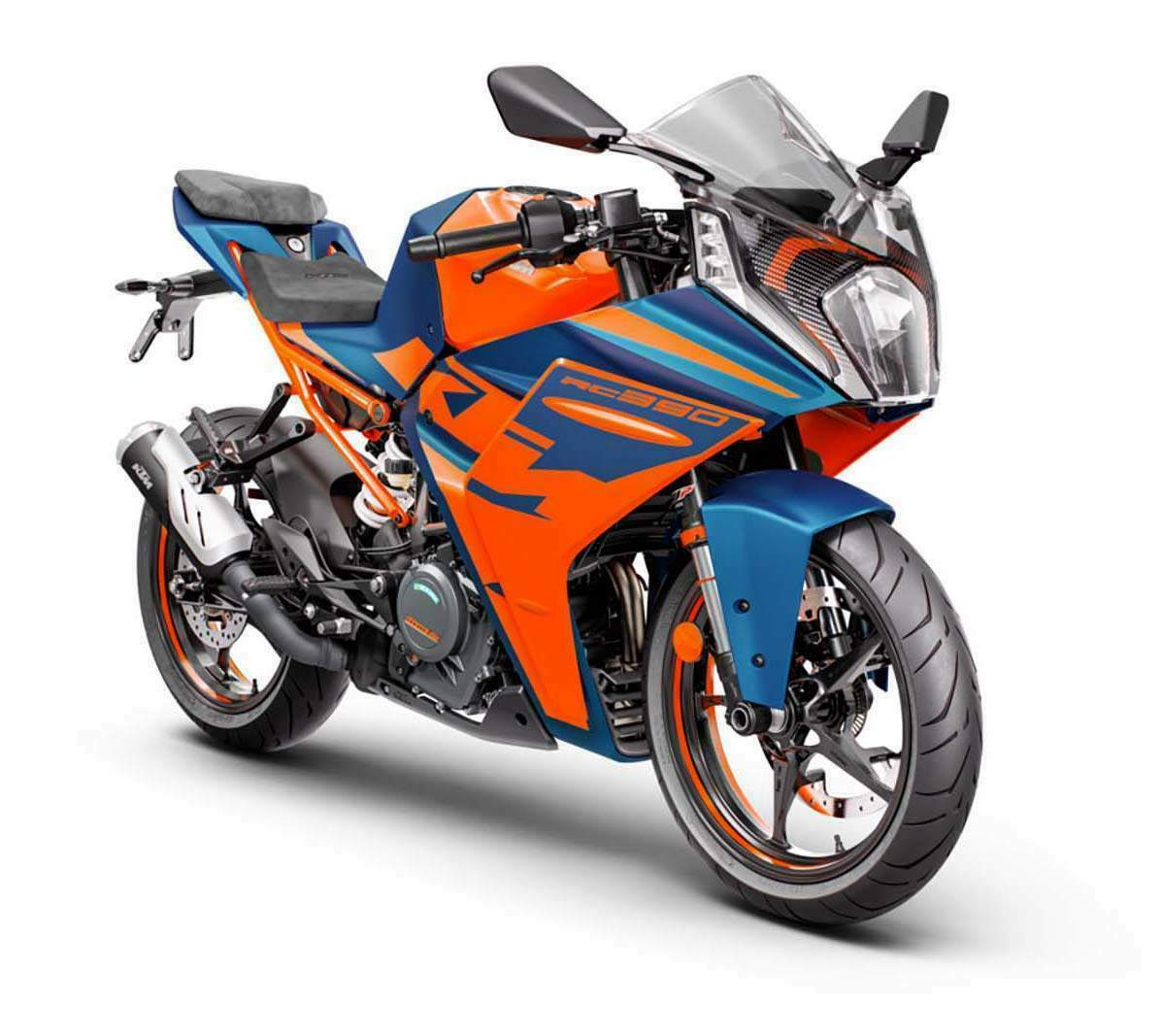

KTM RC 390 (2022) technical specifications

KTM RC 390 is produced in 2022. Engine is Four stroke, single cylinder, DOHC with finger followers, 4 valves per cylinder, displacement 373 cc / 22.7 cu-in , produces power 32 kW / 43 hp @ 9500 rpm and 37 Nm / 27.2 lb-ft. KTM RC 390 weighs 155 kg / 341.7 lbs. KTM RC 390 has 9 photos.

Technical specifications

+ Add to 'Compare list'

Model:	RC 390
Years:	2022
Engine:	Four stroke, single cylinder, DOHC with finger followers, 4 valves per cylinder
Capacity:	373 cc / 22.7 cu-in
Bore x Stroke:	89 x 60 mm
Cooling System:	Liquid Cooled
Compression Ratio:
Induction:	Bosch Injection
Emmision:	EURO5
Lubrication:	Wet sump
EMS:	Bosch EMS with RBW
Starting:	Electric
Max Power:	32 kW / 43 hp @ 9500 rpm
Max Torque:	37 Nm / 27.2 lb-ft
Clutch:	PASC™ antihopping clutch, mechanically operated
Transmission:	6 Speed
Final Drive:	520 X-Ring
Frame:	Steel trellis frame, powder coated
Front Suspension:	USD WP APEX 43
Font Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	WP APEX - Monoshock
Rear Wheel Travel:	150 mm / 5.9 in
Front Brakes:	Single 320 mm disc 4 piston radial fixed calliper
Rear Brakes:	Single 230 mm disc 1 piston floating calliper
ABS:	Bosch 9.1MP Two Channel ABS (Supermoto ABS)
Front Tyre:	110/70 R17
Rear Tyre:	150/60 R17
Steering Head Angle:	66.5 °
Seat Height:	824 mm / 32.4 in
Wheelbase:
Ground Clearance:	158 mm / 6.2 in
Dry Weight:	155 kg / 341.7 lbs
Fuel Capacity:	13.7 Liters / 3.6 US gal
