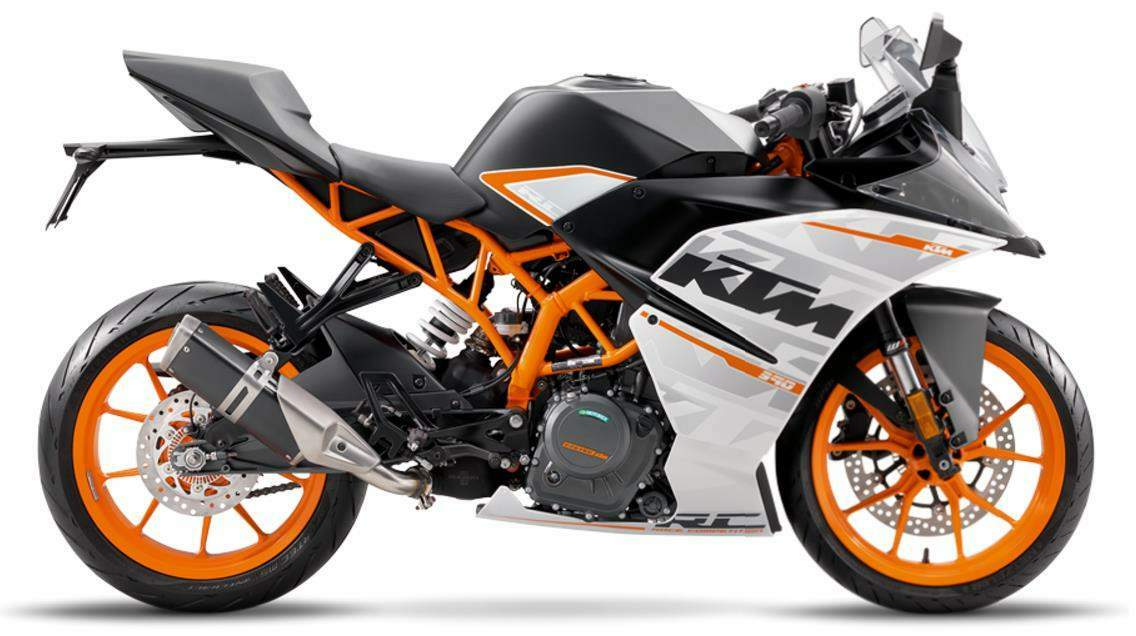

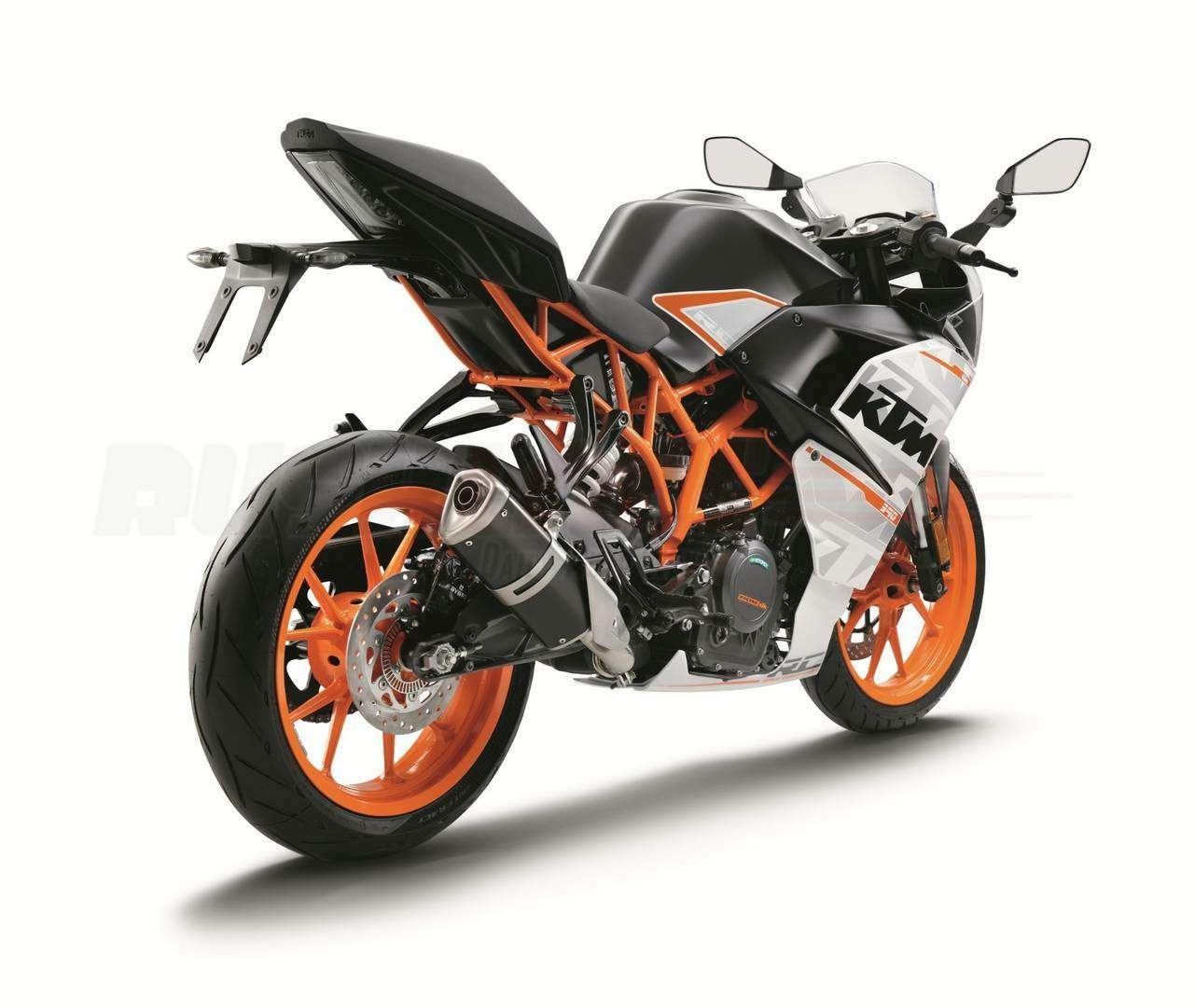

KTM RC 390 (2016) technical specifications

KTM RC 390 is produced in 2016. Engine is Four stroke, single cylinder. DOHC with finger followers, 4 Valve per cylinder, displacement 373 cc / 22.7 cu-in , produces power 32 kW / 43 hp @ 9500 rpm and 3.6 kgm /35.3 Nm @7250rpm. KTM RC 390 weighs 139 kg / 306.4 lbs. KTM RC 390 has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	RC 390
Years:	2016
Engine:	Four stroke, single cylinder. DOHC with finger followers, 4 Valve per cylinder
Capacity:	373 cc / 22.7 cu-in
Bore x Stroke:	89 x 60 mm
Cooling System:	Liquid Cooled
Compression Ratio:	12.6:1
Induction:	Bosch Injection
Lubrication:	Forced oil lubrication with 2 Eaton pumps
Ignition:	Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Starting:	Electric
Max Power:	32 kW / 43 hp @ 9500 rpm
Max Torque:	3.6 kgm /35.3 Nm @7250rpm
Clutch:	Wet multi-disc clutch / mechanically operated
Transmission:	5 Speed
Final Drive:	Chain 5/8 x 1/4” X‑Ring
Primary Gear Ratio:	30:80
Secondary Gear Ratio:	15:45
Frame:	Tubular space frame made from steel, powder-coated
Front Suspension:	WP Suspension Up Side Down
Font Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	WP Monoshock
Rear Wheel Travel:	150 mm / 5.9 in
Front Brakes:	Single 300 mm disc 4 piston radial caliper
Rear Brakes:	Single 230 mm disc 1 piston caliper
Front Tyre:	110/70 R17
Rear Tyre:	150/60 R17
Rake:	65 °
Trail:	100mm / 3.9 in
Dimensions:	Length 2002 mm / 78.8 in Width 873 mm / 34.4 in Height 1267 mm / 49.9 in
Seat Height:	820 mm / 32.2 in
Wheelbase:	1340 mm / 52.7 in
Ground Clearance:	179 mm / 7.0 in
Dry Weight:	139 kg / 306.4 lbs
Fuel Capacity:	10 Liters / 2.64 lbs
