KTM RC 200 (2022-) technical specifications

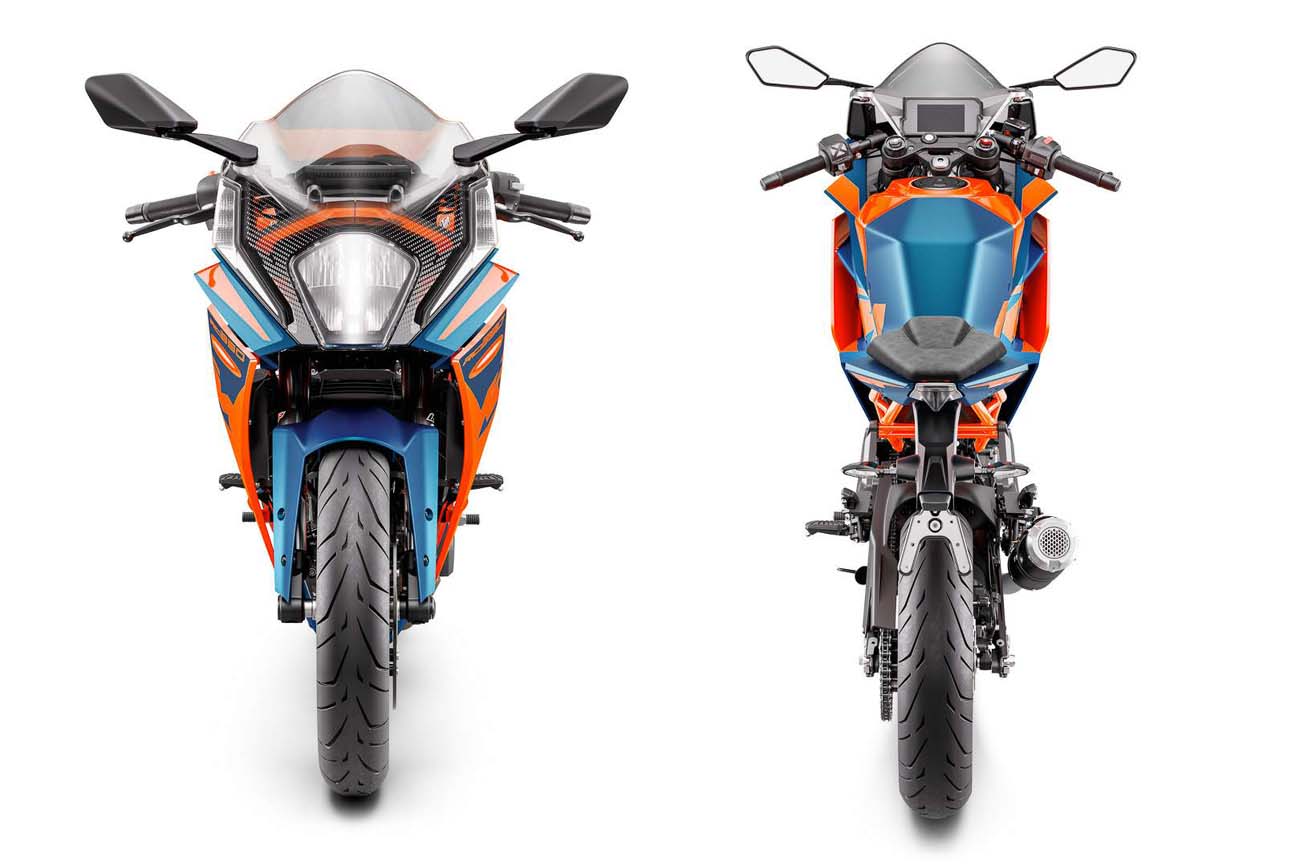

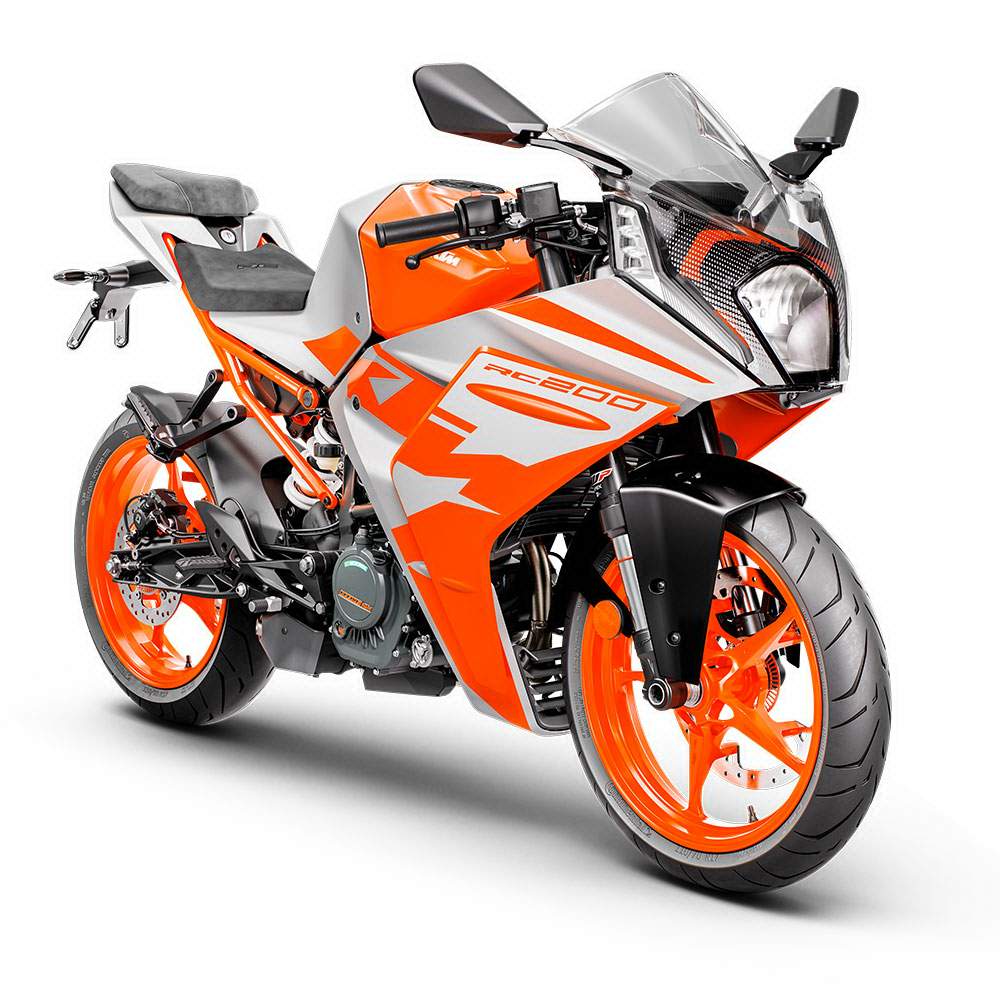

KTM RC 200 is produced in 2022-. Engine is Four stroke, single cylinder. DOHC with finger followers, 4 Valve per cylinder, displacement 199.5 cc / 12.1 cu-in , produces power 25.4 hp / 19 kW @ 10000 rpm and 14 lb-ft / 19.5 Nm @ 8000 rpm. KTM RC 200 weighs 151 kg / 332.8 lbs. KTM RC 200 has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	RC 200
Years:	2022-
Engine:	Four stroke, single cylinder. DOHC with finger followers, 4 Valve per cylinder
Capacity:	199.5 cc / 12.1 cu-in
Bore x Stroke:	72 x 49 mm
Cooling System:	Liquid Cooled
Compression Ratio:	14.5:1
Induction:	Bosch Injection
Lubrication:	Wet sump
EMS:	Bosch EMS
Starting:	Electric
Max Power:	25.4 hp / 19 kW @ 10000 rpm
Max Torque:	14 lb-ft / 19.5 Nm @ 8000 rpm
Clutch:	Wet multi-disc clutch, mechanically operated
Transmission:	6 Speed
Final Drive:	Chain, 520 X‑Ring
Frame:	Steel trellis frame, powder-coated
Front Suspension:	WP APEX 43
Font Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	WP APEX Monoshock
Rear Wheel Travel:	150 mm / 5.9 in
Front Brakes:	Single 320 mm disc, four-piston radial fixed calliper
Rear Brakes:	Single 230 mm disc, single-piston floating calliper
ABS:	Bosch 9.1 MB Two Channel ABS (Supermoto ABS)
Front Tyre:	95/75-R17
Rear Tyre:	115/75-R17
Rake:	66.8 °
Trail:	100 mm / 3.9 in
Seat Height:	824 mm / 32.4 in
Ground Clearance:	158 mm / 6.2 in
Dry Weight:	151 kg / 332.8 lbs
Fuel Capacity:	13.7 Litres / 3.6 US gal
