KTM Brabus 1400 R Signature Edition (2026) technical specifications

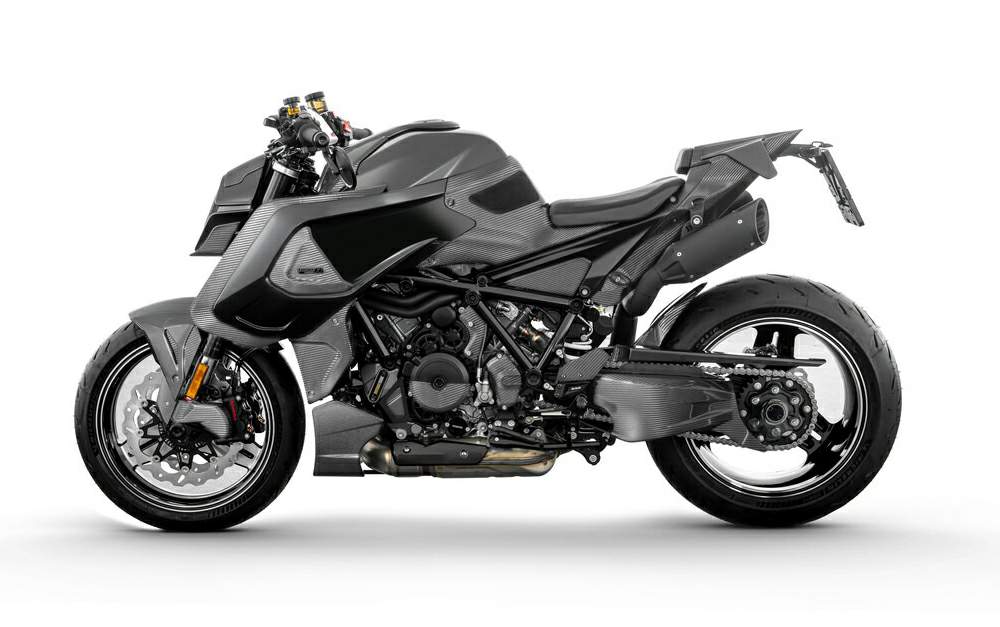

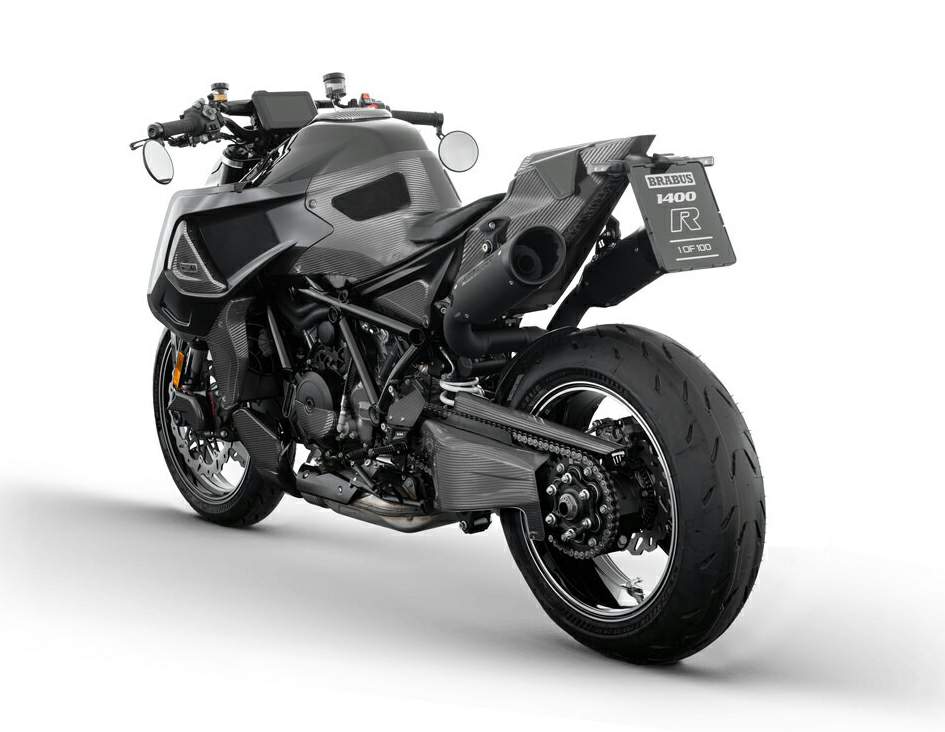

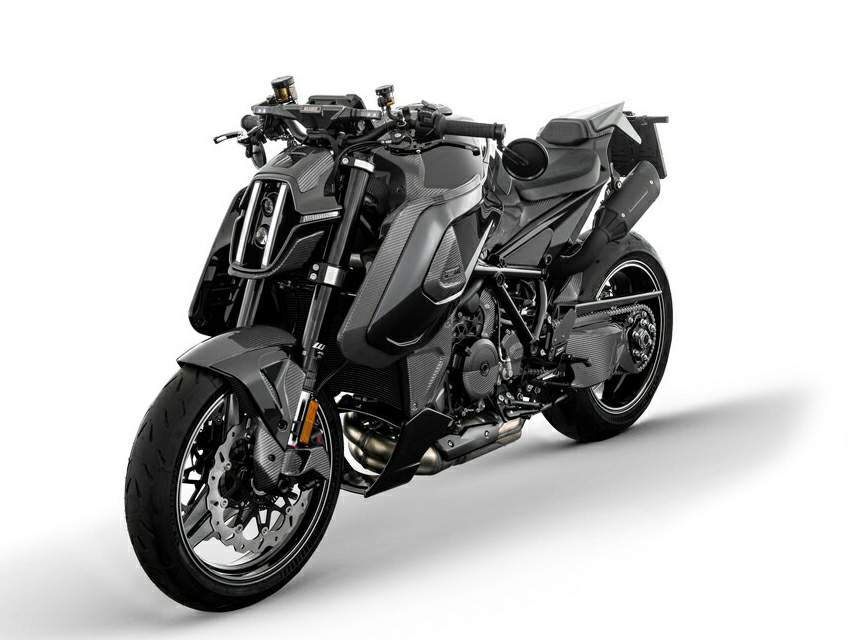

KTM Brabus 1400 R Signature Edition is produced in 2026. Engine is Four stroke, 75? V-twin cylinder, DOHC, 4 valves per cylinder, variable valve system, displacement 1350 cc / 82.3 cu-in , produces power 141.7 kW / 190 hp @ 10 000 rpm and 145 Nm / 106.9 lb-ft @ 8 000 rpm. KTM Brabus 1400 R Signature Edition weighs 200 kg / 440.9 lbs. KTM Brabus 1400 R Signature Edition has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Brabus 1400 R Signature Edition
Years:	2026
Production:	100 Units
Engine:	Four stroke, 75? V-twin cylinder, DOHC, 4 valves per cylinder, variable valve system
Capacity:	1350 cc / 82.3 cu-in
Bore x Stroke:	110 x 71 mm
Compression Ratio:	-
Cooling System:	Liquid cooled with water/oil heat exchanger

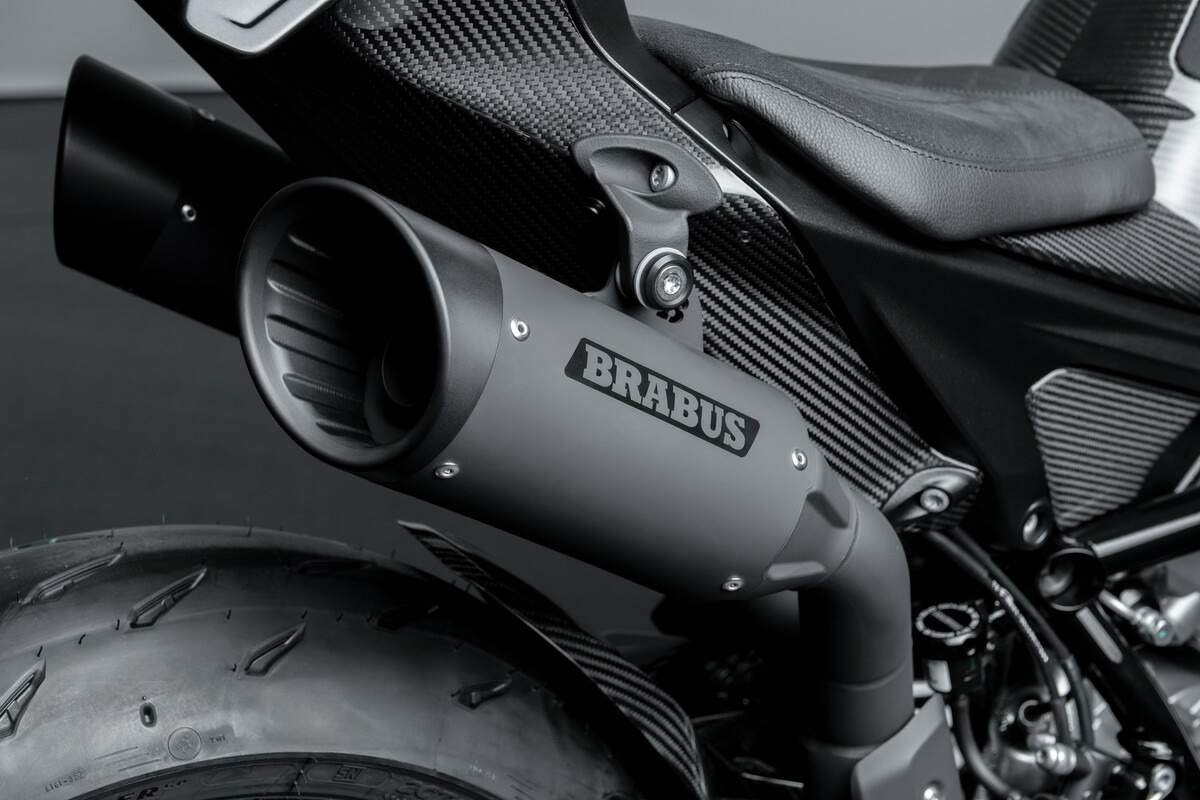

Exhaust:	Stainless steel primary and secondary silencer with two catalytic converters
Emission:	Eur0 5+
Lubrication:	Forced oil lubrication with 3 oil pumps
Ignition:	Keihin EMS with RBW and cruise control, double ignition
Starting:	Electric
Max Power:	141.7 kW / 190 hp @ 10 000 rpm
Max Torque:	145 Nm / 106.9 lb-ft @ 8 000 rpm
Clutch:	PASC (TM) slipper clutch, hydraulically actuated
Transmission:	6-speed
Final Drive:	525 X-Ring
Frame:	Chrome-moly tubular space frame, powder-coated
Subframe:	Cast aluminium, Carbon fibre
Front Suspension:	WP APEX-USD ? 48 mm, semi-active (Gen 3)
Front Wheel Travel:	125 mm / 4.9 in
Rear Suspension:	WP APEX-linkage shock, semi-active (Gen 3), electronically regulated preload
Rear Wheel Travel:	140 mm / 5.5 in
Front Brakes:	2 x 320 mm Brembo Stylema Monobloc four piston, radially mounted caliper
Rear Brakes:	Single 240 mm disc Brembo twin-piston fixed caliper
ABS System:	Bosch 9.1MP 2.0 (with cornering ABS and SUPERMOTO ABS)

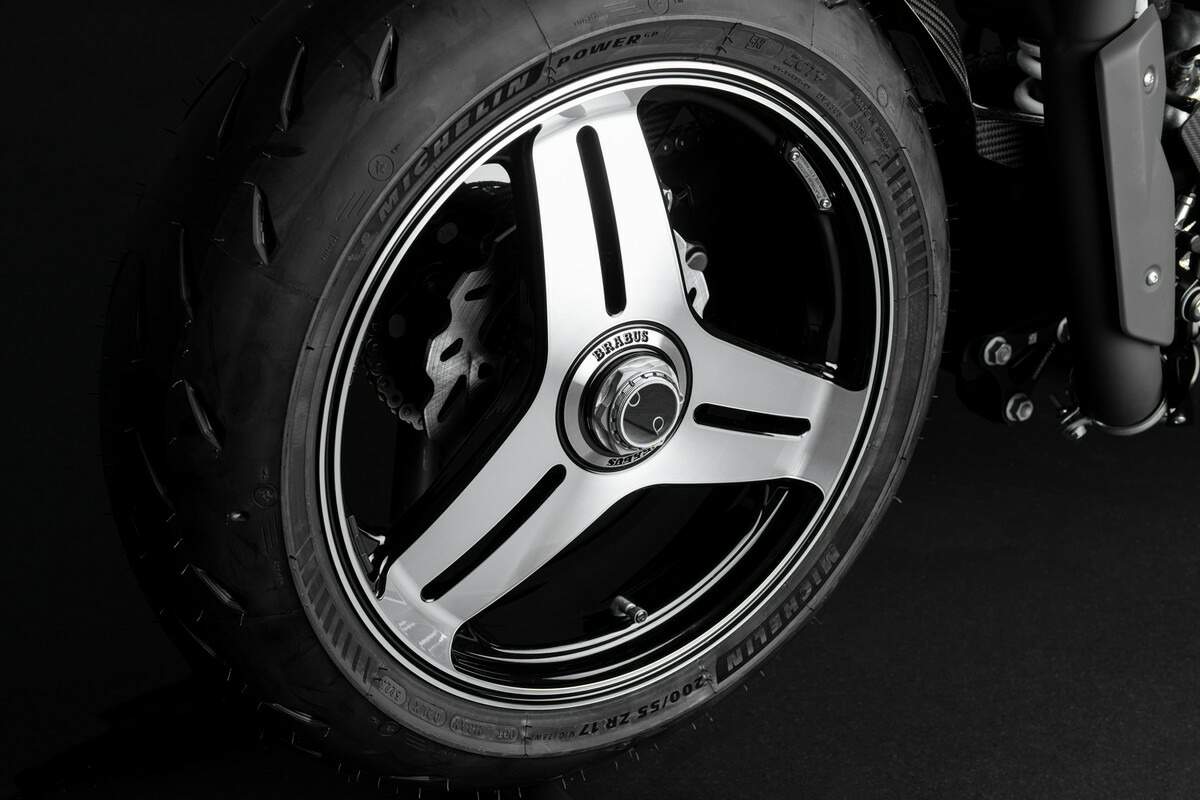

Wheels:	Forged wheels
Front Rim:	3.5 x 17
Rear Rim:	6.00 x 17
Front Tyre:	120/70 Michelin Power GP
Rear Tyre:	200/55 Michelin Power GP
Steering Head Angle:	65.3?
Trail:	101 mm / 4.0 in
Wheelbase:	1491 mm /
Seat Height:	834 mm / 32.9 in
Ground Clearance:	149 mm / 5.9 in
Dry Weight:	200 kg / 440.9 lbs
Fuel Capacity:	17.5 Litres / 4.6 US gal
