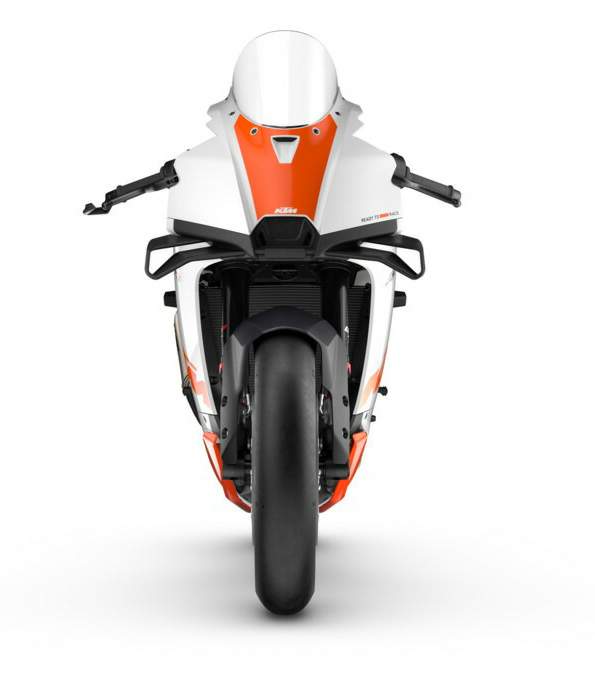

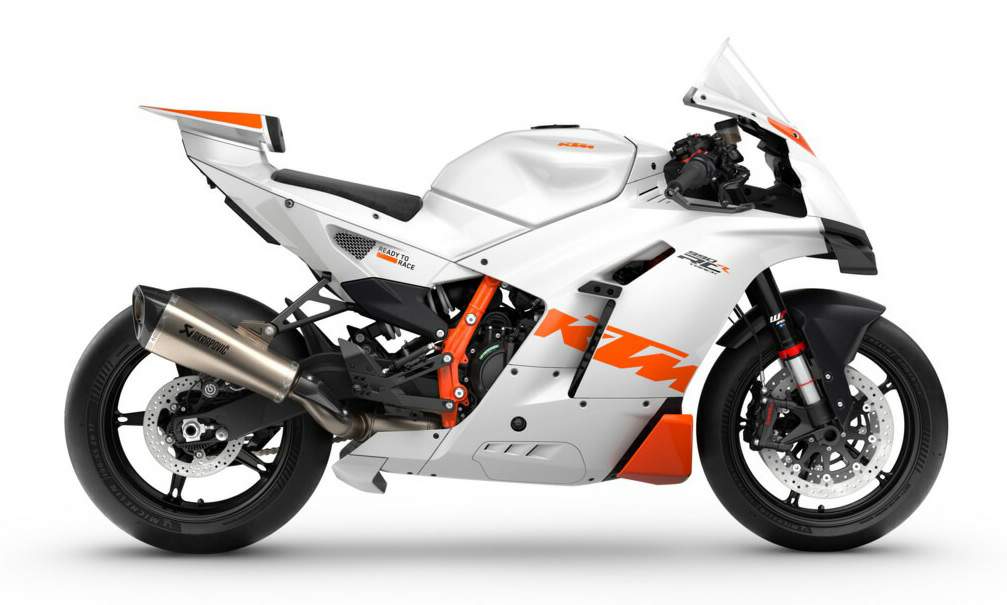

KTM 990 RC-R Track (2026) technical specifications

KTM 990 RC-R Track is produced in 2026. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder, displacement 947 cc / 57.8 cu-in , produces power 132 hp / 98.4 kW and 105 Nm / 77.4 lb-ft. KTM 990 RC-R Track has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	990 RC-R Track
Years:	2026
Engine:	Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Capacity:	947 cc / 57.8 cu-in
Bore x Stroke:	92.5 x 70.4 mm
Cooling System:	Liquid cooled with water/oil heat exchanger
Compression Ratio:	n/a
Lubrication:	Forced oil lubrication with 2 oil pumps
Emission:	EURO 5+
Induction:	46mm DKK Dellorto throttle body
Engine Management:	Bosch EMS with RBW
Starting:	Electric
Silencer:	Stainless steel primary and secondary silencer
Max Power:	132 hp / 98.4 kW
Max Torque:	105 Nm / 77.4 lb-ft
Clutch:	PASC? slipper clutch, cable operated
Transmission:	6-Speed
Final Drive:	Chain 520 X-ring
Frame:	Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front Suspension:	WP APEX 48, open cartridge, compression & rebound (30 Clicks), preload (3 clicks)
Front Wheel Travel:	130 mm / 5.1 in
Rear Suspension:	WP APEX - Monoshock, compression high-speed (3 turns) low-speed (30 clicks), rebound (30 clicks), preload (10 turns)
Rear Wheel Travel:	130 mm / 5.1 in
Front Brakes:	2 x 320mm discs, 2 x radially mounted 4 piston caliper
Rear Brakes:	Single 240 mm disc, single piston caliper
ABS:	Standard
Wheels:	Cast aluminium
Front Wheel:	3.5 x 17
Rear Wheel:	5.5 x 17
Front Tyre:	120/70-ZR 17
Rear Tyre:	180/55-ZR 17
Steering Head Angle:	65.8?
Trail:	98.5 mm / 3.9 in
Wheelbase:	1481 mm / 58.3 in
Seat Height:	857 mm / 33.7 in
Ground Clearance:	163 mm / 6.4 in
Wet Weight (without fuel):	170 kg / 375 lbs
Fuel Capacity:	15.7 litres / 4.1 US gal
