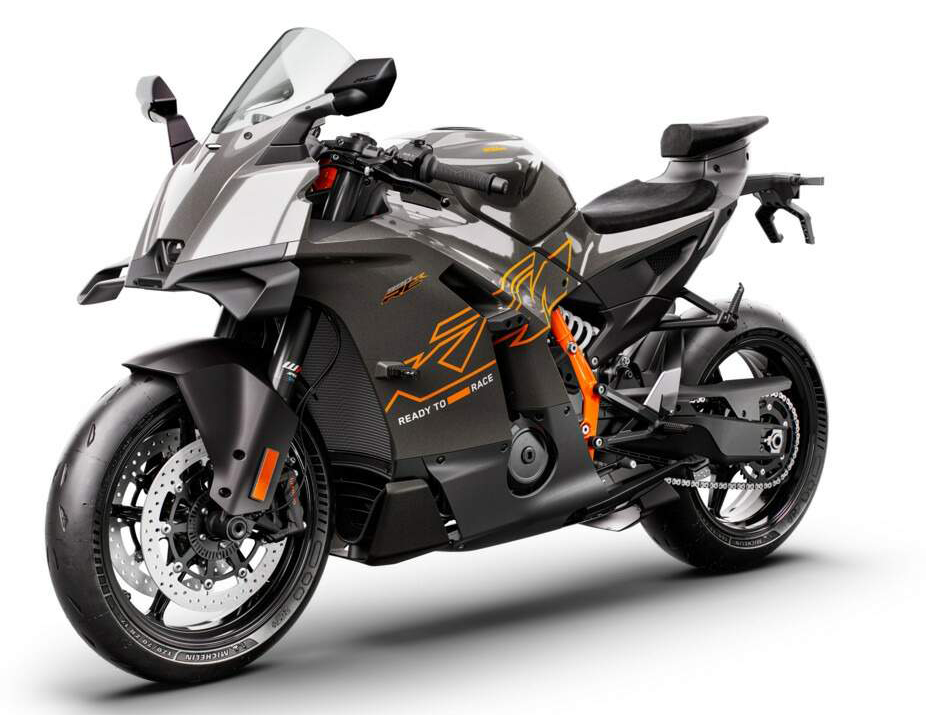

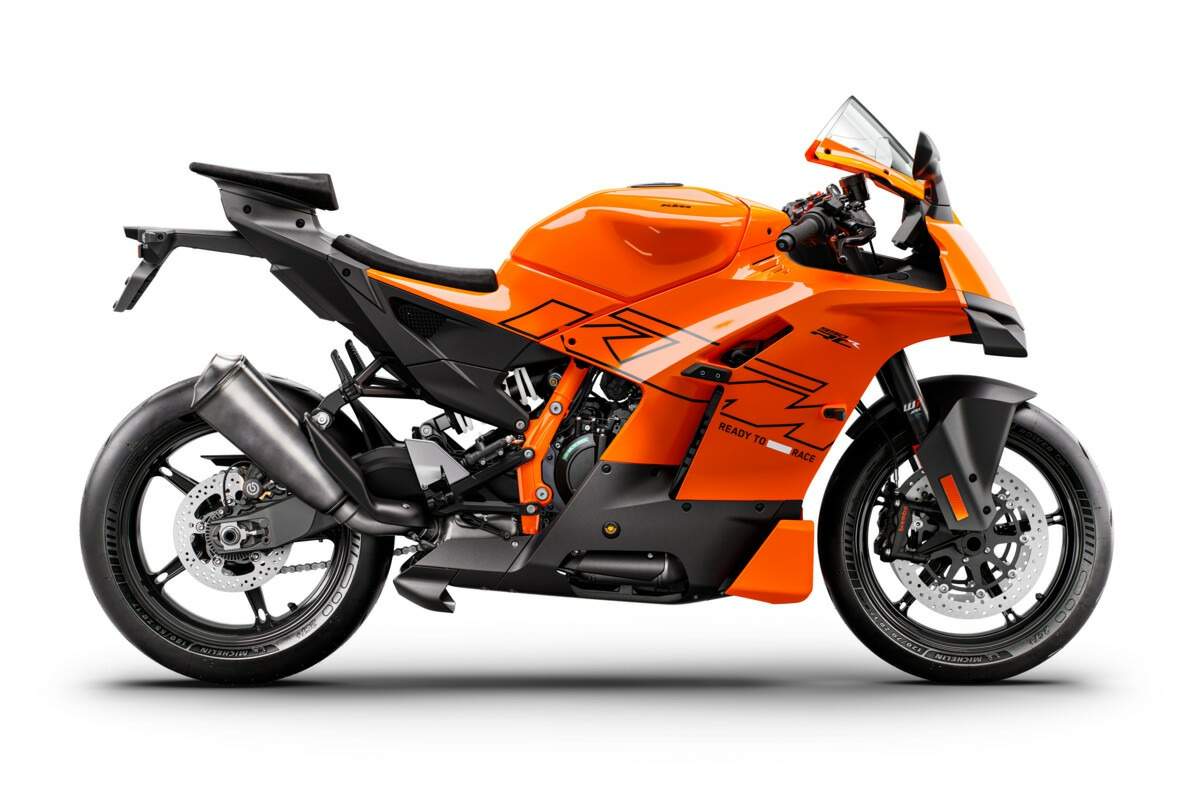

KTM 990 RC-R (2026) technical specifications

KTM 990 RC-R is produced in 2026. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder, displacement 947 cc / 57.8 cu-in , produces power 128.2 hp / 94.3 kW @ 9500 rpm and 103 Nm / 75.9 lb-ft @ 6750 rpm. KTM 990 RC-R wet weight is 195 kg 430 lbs. KTM 990 RC-R has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	990 RC-R
Years:	2026
Engine:	Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Capacity:	947 cc / 57.8 cu-in
Bore x Stroke:	92.5 x 70.4 mm
Cooling System:	Liquid cooled with water/oil heat exchanger
Compression Ratio:	13.5:1
Lubrication:	Forced oil lubrication with 2 oil pumps
Emission:	EURO 5+
Induction:	46mm DKK Dellorto throttle body
Engine Management:	Bosch EMS with RBW
Starting:	Electric
Max Power:	128.2 hp / 94.3 kW @ 9500 rpm
Max Torque:	103 Nm / 75.9 lb-ft @ 6750 rpm
Clutch:	PASC? slipper clutch, cable operated
Transmission:	6-Speed
Primary Drive:	42:76
Final Drive:	Chain 520 X-ring, 16:43
Frame:	Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front Suspension:	WP APEX 48, open cartridge, compression & rebound (30 Clicks), preload (3 clicks)
Front Wheel Travel:	147 mm / 5.8 in
Rear Suspension:	WP APEX - Monoshock, compression high-speed (3 turns) low-speed (30 clicks), rebound (30 clicks), preload (10 turns)
Rear Wheel Travel:	134 mm / 5.3 in
Front Brakes:	2 x 320mm discs, radially mounted 4 piston caliper
Rear Brakes:	Single 240 mm disc, single piston caliper
ABS:	Standard
Wheels:	Cast aluminium
Front Wheel:	3.5 x 17
Rear Wheel:	5.5 x 17
Front Tyre:	120/70-ZR 17
Rear Tyre:	180/55-ZR 17
Wheelbase:	1481 mm / 58.3 in
Seat Height:	845 mm / 33.3 in
Ground Clearance:	163 mm / 6.4 in
Wet Weight:	195 kg 430 lbs
Fuel Capacity:	15.7 litres / 4.1 US gal
