KTM 990 Adventure S (2007) technical specifications

KTM 990 Adventure S technical specifications

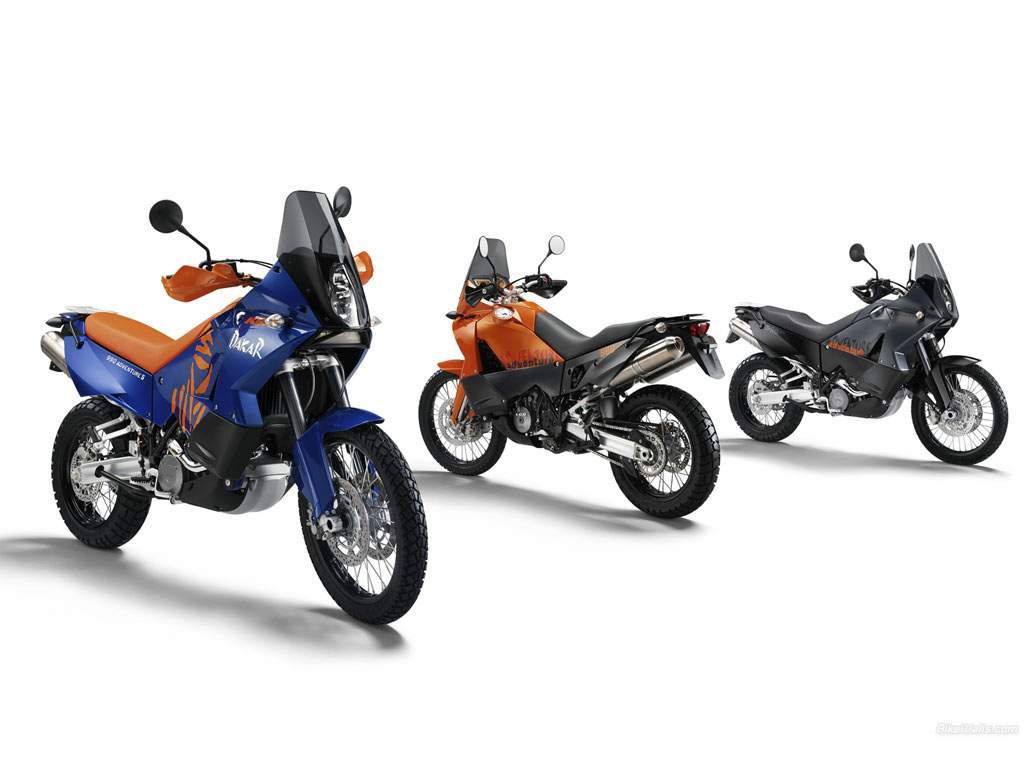

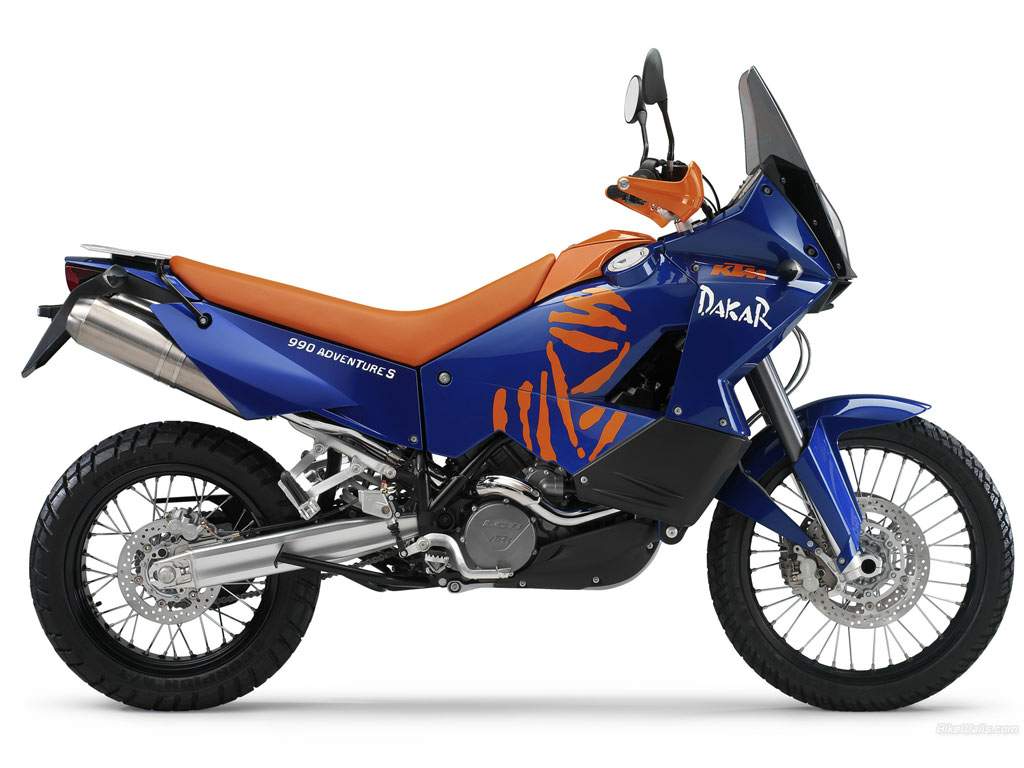

KTM 990 Adventure S is produced in 2007. Engine is Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder, displacement 999.8 cc / 60.9 cu-in , produces power 96.5 hp / 70.5 kW @ 8500 rpm and 95 Nm / 70.1 lb-ft @ 6500 rpm. KTM 990 Adventure S weighs 199 kg / 438.7 lbs. KTM 990 Adventure S has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: 990 Adventure S
Years: 2007
Engine: Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Capacity: 999.8 cc / 60.9 cu-in
Bore x Stroke: 101 x 62.4mm
Cooling System: Liquid cooling
Compression Ratio: 11.5;1
Lubrication: Pressure lubrication with 2 Eaton pumps
Induction: Keihin Electronic Fuel Injection EMS
Engine Oil: Motorex, SAE 10W-50
Exhaust: Twin stainless steel silencer with regulated catalytic converter
Ignition: Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Battery: 12 V/11.2 Ah
Starting: Electric
Max Power: 96.5 hp / 70.5 kW @ 8500 rpm
Max Torque: 95 Nm / 70.1 lb-ft @ 6500 rpm
Clutch: Wet Multi-disc hydraulically operated,
Transmission: 6 Speed
Final Drive: Chain, X-Ring 5/8 x 5/16"
Primary Drive: 35:67
Final Drive Ratio: 16:42
Frame: Tubular cromoly spaced frame. powered coated
Handlebar: Aluminium, tapered, Ø 28/22 mm
Front Suspension: 48mm WP USD forks
Front Wheel Travel: 250 mm / 9.8 in
Rear Suspension: WP-PDS rear shock, hydraulic spring preload
Rear Wheel Travel: 255 mm / 10.0 in
Front Brakes: 2x 300mm Brembo discs 2 piston calipers
Rear Brakes: Single 240mm Brembo disc 1 piston caliper
Front Wheel: 2.15 x 21'';
Rear Wheel: 4.25 x 18''
Front Tyre: 90/90 -21
Rear Tyre: 150/70 -R18
Steering Head Angle: 63.4°
Rake: 26.6°
Trail: 119 mm / 4.68 in
Wheelbase: 1570 mm / 61.8 in
Seat Height: 915 mm / 36. in
Ground Clearance: 316 mm / 12.4 in
Dry Weight: 199 kg / 438.7 lbs
Fuel Capacity: 22 Litres / 5.8 gal
Reserve: 4 Litres
