KTM 990 Adventure (2011) technical specifications

KTM 990 Adventure technical specifications

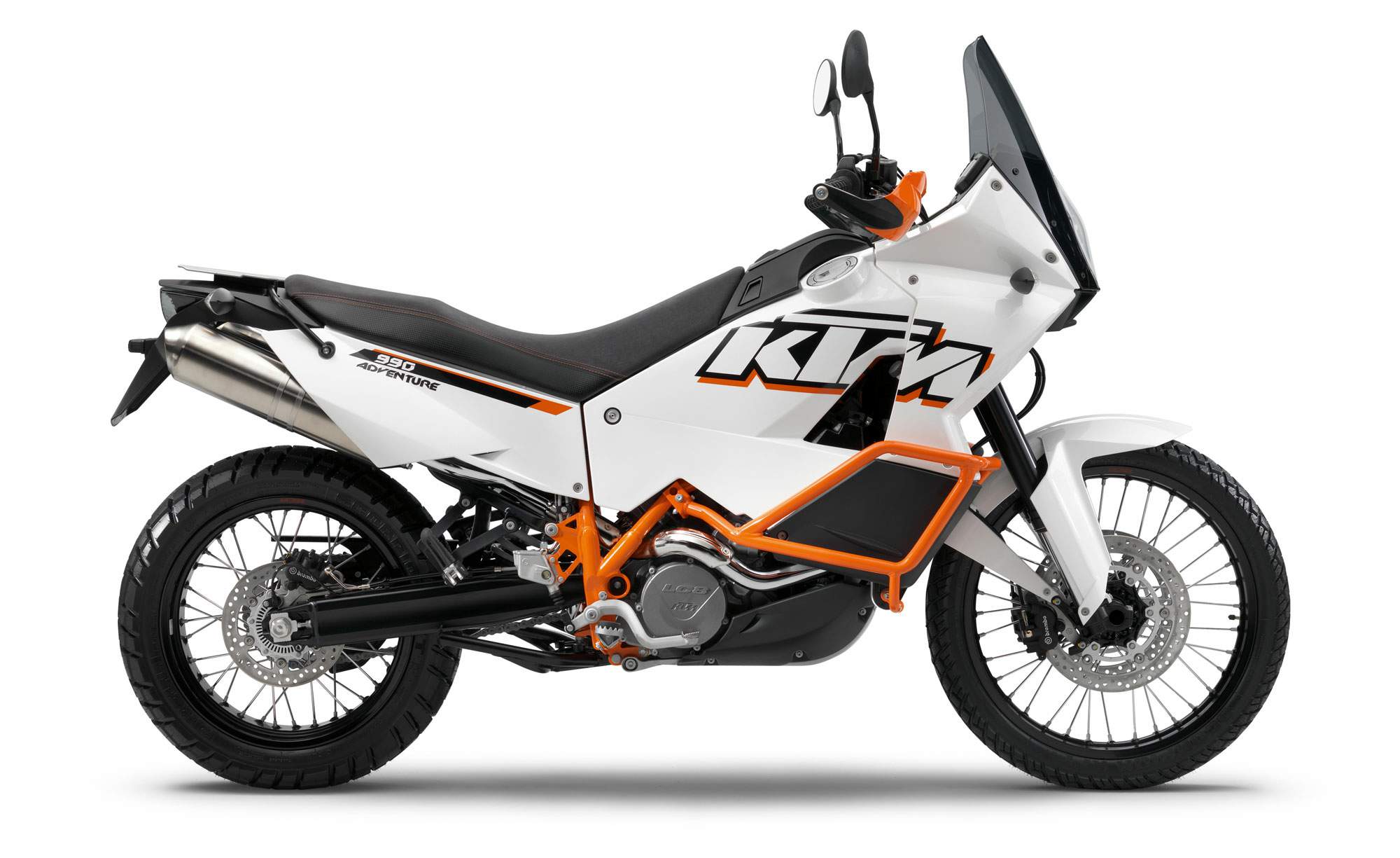

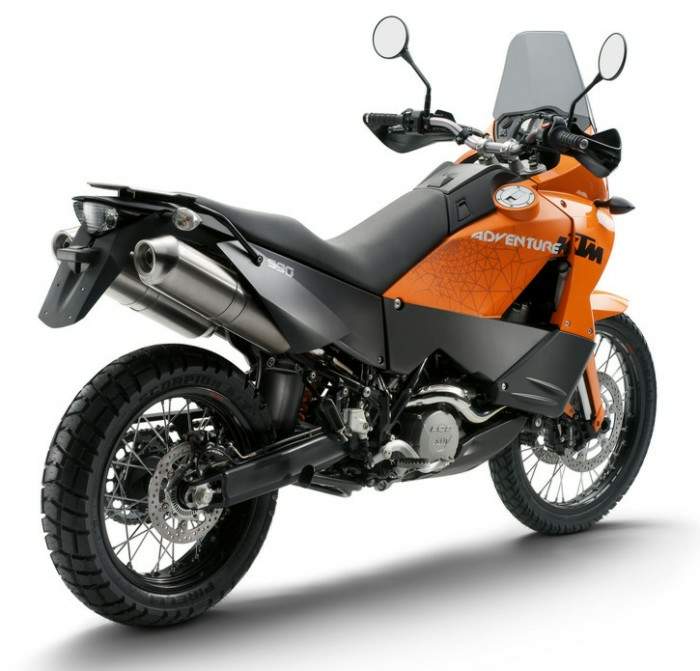

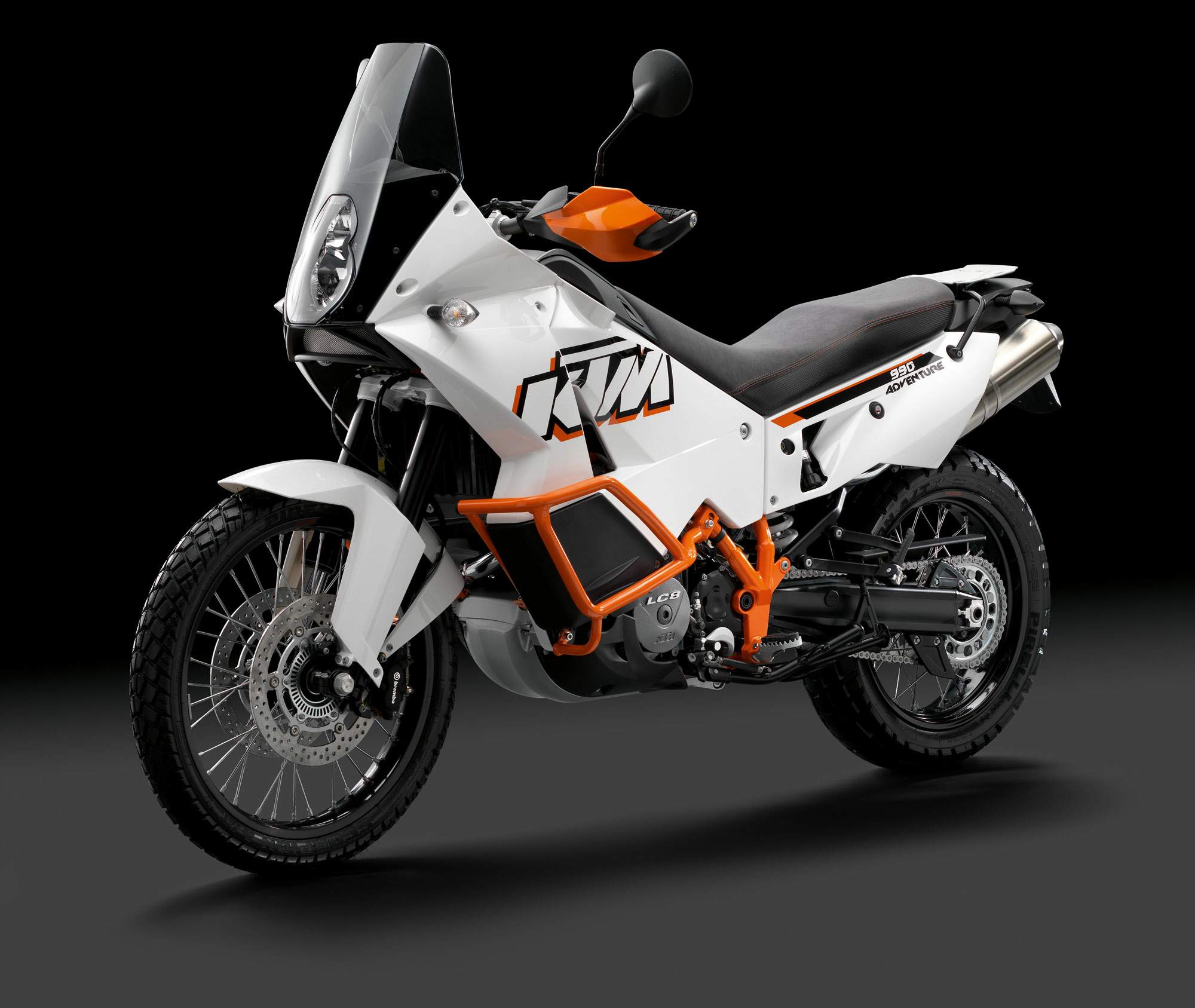

KTM 990 Adventure is produced in 2011. Engine is Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder, displacement 999.8 cc / 60.9 cu-in , produces power 113.3 hp / 84.5 kW @ 8750 rpm and 100 Nm / 73.8 lb-ft @ 6500 rpm. KTM 990 Adventure weighs 209 kg / 460.7 lbs. KTM 990 Adventure has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: 990 Adventure
Years: 2011
Engine: Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Capacity: 999.8 cc / 60.9 cu-in
Bore x Stroke: 101 x 62.4mm
Cooling System: Liquid cooling
Compression Ratio: 11.5;1
Induction: Keihin Electronic Fuel Injection EMS
Engine Oil: Motorex, SAE 10W-50
Exhaust: Twin stainless steel silencer with regulated catalytic converter
Ignition: Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Battery: 12 V/11.2 Ah
Starting: Electric
Max Power: 113.3 hp / 84.5 kW @ 8750 rpm
Max Torque: 100 Nm / 73.8 lb-ft @ 6500 rpm
Clutch: Wet Multi-disc hydraulically operated,
Transmission: 6 Speed
Final Drive: Chain, X-Ring 5/8 x 5/16"
Primary Drive: 35:67
Final Drive Ratio: 16:42
Frame: Tubular cromoly spaced frame. powered coated
Handlebar: Aluminium, tapered, Ø 28/22 mm
Front Suspension: 48mm WP USD forks
Front Wheel Travel: 190 mm / 7.5 in
Rear Suspension: WP-PDS rear shock, hydraulic spring preload
Rear Wheel Travel: 190 mm / 7.5 in
Front Brakes: 2x 300mm discs 2 piston calipers
Rear Brakes: Single 240mm disc 1 piston caliper
Front Tyre: 90/90 -21
Rear Tyre: 150/70 -R18
Seat Height: 860 mm / 33.8 in
Ground Clearance: 261 mm / 9.0 in
Dry Weight: 209 kg / 460.7 lbs
Fuel Capacity: 19.5 Litres / 5.1 gal
