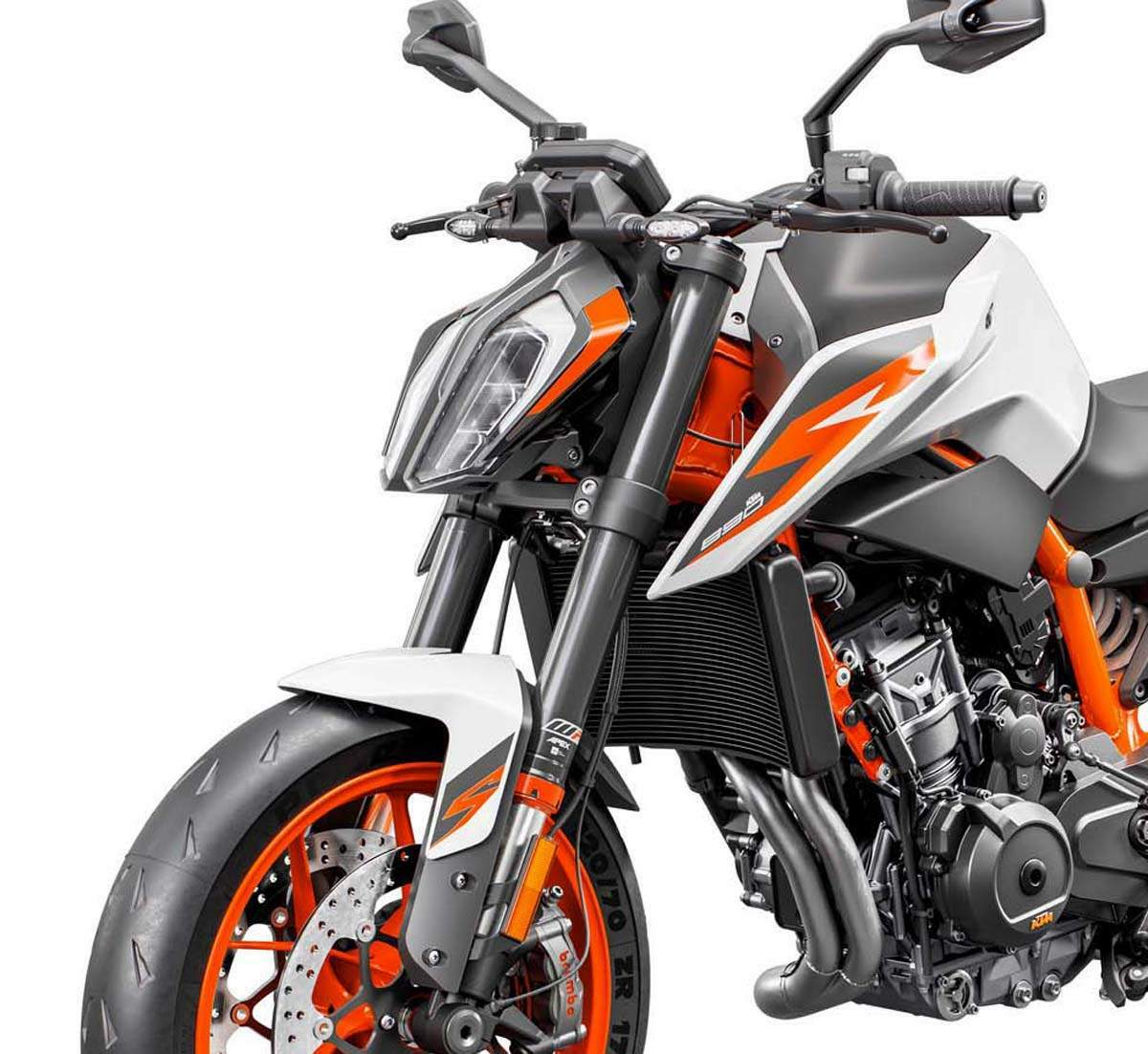

KTM 890 Duke R (2020) technical specifications

KTM 890 Duke R technical specifications

KTM 890 Duke R is produced in 2020. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder, displacement 890 cc / 54.3 cu-in , produces power 89 kW / 119 hp @ 9250 rpm and 99 Nm / 79 lb-ft @ 7750 rpm. KTM 890 Duke R weighs 166 kg / 266 lbs. KTM 890 Duke R has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: 890 Duke R
Years: 2020
Engine: Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Capacity: 890 cc / 54.3 cu-in
Bore x Stroke: 90.7 x 68.8 mm
Cooling System: Liquid cooled with water/oil heat exchanger
Compression Ratio: 13.5:1
Exhaust: Stainless steel primary and secondary silencer
Lubrication: Forced oil lubrication with 2 oil pumps
Induction: DKK Dell’Orto fuel-Injection throttle body 46mm
Engine Management: Bosch EMS with RBW
Starting: Electric
Max Power: 89 kW / 119 hp @ 9250 rpm
Max Torque: 99 Nm / 79 lb-ft @ 7750 rpm
Traction Control: MTC (lean angle sensitive, 3-Mode + Track mode optional)
Clutch: PASC antihopping clutch, mechanically operated
Transmission: 6 Speed
Final Drive: Chain 520 X-Ring
Primary Drive: 39:75
Secondary Gear Ratio: 16:41
Frame: Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front Suspension: 43mm WP APEX upside-down forks
Front Wheel Travel: 140 mm / 5.5 in
Rear Suspension: WP APEX shock absorber with preload adjuster
Rear Wheel Travel: 150 mm / 5.9 in
Front Brakes: 2x 320mm discs, Brembo Stylema Monobloc four piston, radially mounted caliper
Rear Brakes: Single 240mm disc, Brembo single-piston floating calliper
ABS: Two-channel Bosch 9.1 MP ABS (incl. Cornering ABS and Supermoto mode Disengegable)
Front Wheel: Cast aluminium wheels 3.50 X 17
Rear Wheel: Cast aluminium wheels 5.50 X 17
Front Tyre: 120/70 ZR 17
Rear Tyre: 180/55 ZR 17
Rake: 24°
Trail: 99.7 mm / 3.9 in
Steering Head Angle: 65.7°
Handlebar: Aluminium, powder coated
Wheel base: 1482 mm ± 15 mm
Seat Height: 834 mm / 32.8 in
Ground Clearance: 206 mm / 8.1 in
Dry Weight: 166 kg / 266 lbs
Fuel Capacity: 14 Litres / 3.7 US gal
